Press Brake

Home > Products > Metal Forming Machine > Press Brake

FEATURES
PARAMETER

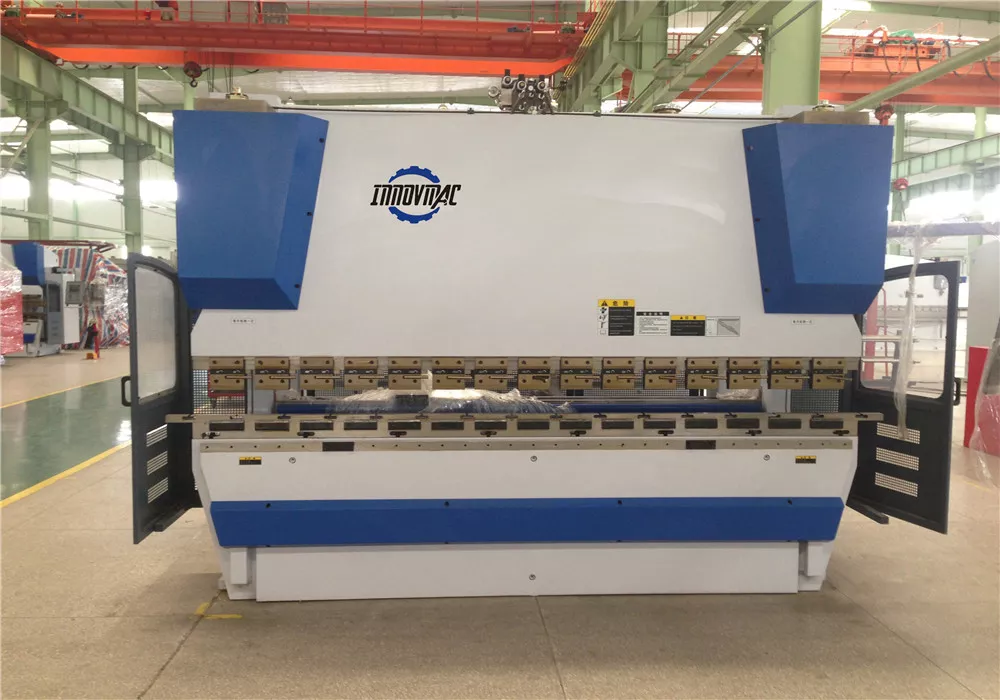

WC67Y

Features:
1.Total steel-welded structure and stress elimination by vibration,High mechanical strength and good rigidity.

2.Hydraulic top-drive, step-less pressure adjustment and high quality sealing rings imported from overseas to ensure the machine tools reliability.

3.Mechanical stop and steel torsion bar to maintain synchronization and high precision.

4.The stroke and distance of the back gauge is adjusted by the motor and is well adjusted by hand,the adjustment is displayed by digital meters.

5.Deflection compensation device is provided for the upper die or the lower die if the operation pressure is 250T or above.

6.Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety.

Model	Nominal pressure (KN)	Length of working table(mm)	Distance between uprights(mm)	Throat depths (mm)	Stroke (mm)	Open height (mm)	Motor power (kw)
WC67Y/K-30/1600	300	1600	1250	200	90	300	4
WC67Y/K-40/2000	400	2000	1650	250	100	330	5.5
WC67Y/K-40/2500	400	2500	2100	250	100	330	5.5
WC67Y/K-63/2500	630	2500	2100	250	120	340	5.5
WC67Y/K-63/3200	630	3200	2450	250	120	340	5.5
WC67Y/K-80/2500	800	2500	2100	250	120	380	7.5
WC67Y/K-80/3200	800	3200	2450	250	120	380	7.5
WC67Y/K-100/2500	1000	2500	2100	320	120	380	7.5
WC67Y/K-100/3200	1000	3200	2450	320	120	380	7.5
WC67Y/K-100/4000	1000	4000	3090	320	120	380	7.5
WC67Y/K-125/2500	1250	2500	2100	320	120	380	7.5
WC67Y/K-125/3200	1250	3200	2450	320	120	380	7.5
WC67Y/K-125/4000	1250	4000	3090	320	120	380	7.5
WC67Y/K-160/3200	1600	3200	2450	320	180	440	11
WC67Y/K-160/4000	1600	4000	3090	320	180	440	11
WC67Y/K-200/3200	2000	3200	2450	350	200	465	15
WC67Y/K-200/4000	2000	4000	3090	350	200	465	15
WC67Y/K-200/6000	2000	6000	4800	350	200	465	15
WC67Y/K-250/3200	2500	3200	2450	400	250	500	18.5
WC67Y/K-250/4000	2500	4000	3090	400	250	500	18.5
WC67Y/K-250/6000	2500	6000	4800	400	250	500	18.5
WC67Y/K-300/3200	3000	3200	2530	400	250	500	22
WC67Y/K-300/4000	3000	4000	3090	400	250	535	22
WC67Y/K-300/6000	3000	6000	4800	400	250	535	22
WC67Y/K-400/4000	4000	4000	3090	400	320	600	22
WC67Y/K-400/6000	4000	6000	4800	400	300	600	37
WC67Y/K-500/4000	5000	4000	3100	400	300	600	45
WC67Y/K-500/6000	5000	6000	4800	400	300	600	45
WC67Y/K-600/4000	6000	4000	6200	400	300	600	45
WC67Y/K-600/6000	6000	6000	4800	400	300

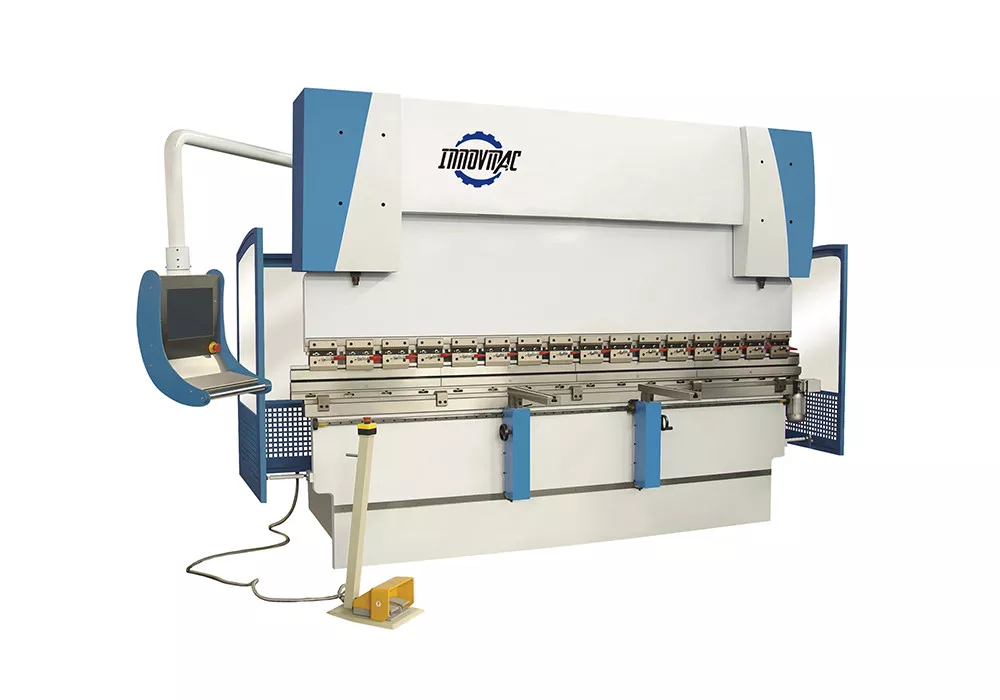

Double Axles

Features:
1.The main machine adopts the structure of WC67Y series hydraulic press brake.

2.Special CNC system for press brake(double axles)

3.The drive element of back gauge adopts imported ball screw and linear guideway.

2-320/5000	2-320/6000	2-400/4000	2-400/5000	2-500/4000	2-500/5000	2-500/6000	2-630/5000	2-630/6000	2-800/8000
2x3200	2x3200	2x4000	2x4000	2x5000	2x5000	2x5000	2x6300	2x6300	2x8000
2x5000	2x6000	2x4000	2x5000	2x4000	2x5000	2x6000	2x5000	2x6000	2x8000
4300	5300	3100	4210	3100	4100	5100	4100	5100	6700
400	400	400	400	400	400	400	400	400	400
250	200	320	320	320	320	320	320	320	100
560	500	625	625	630	630	630	710	710	750
2x22	2x22	2x37	2x37	2x37	2x37	2x37	2x45	2x45	2x55
2x5060x2570x4560	2x6060x2570x4560	2x4140x3240x3880	2x5050x3240x3880	2x4090x2965x5320	2x6
