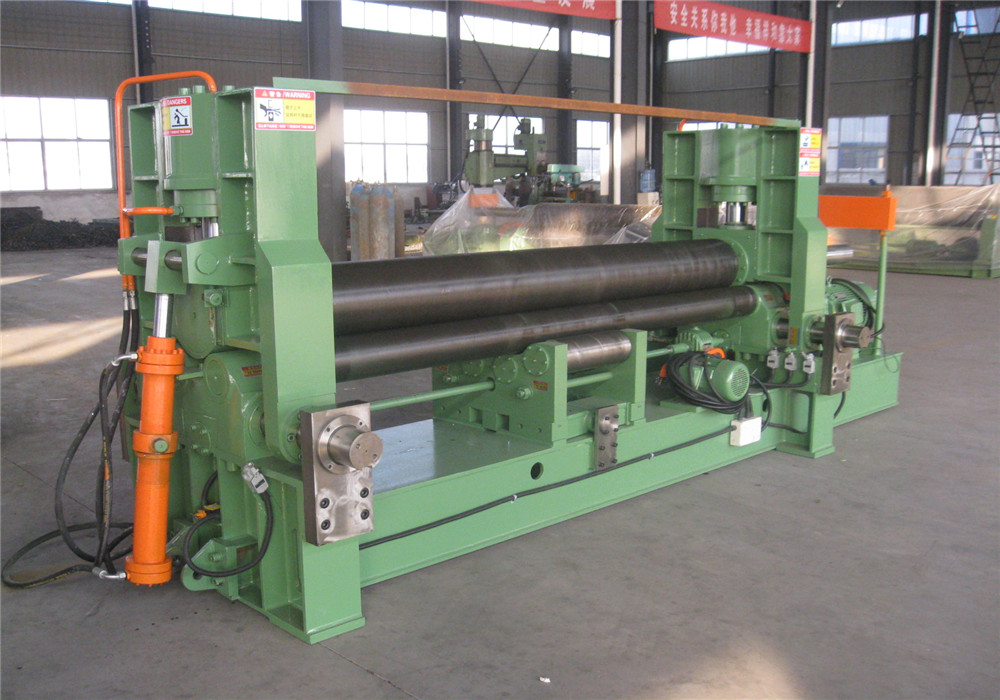

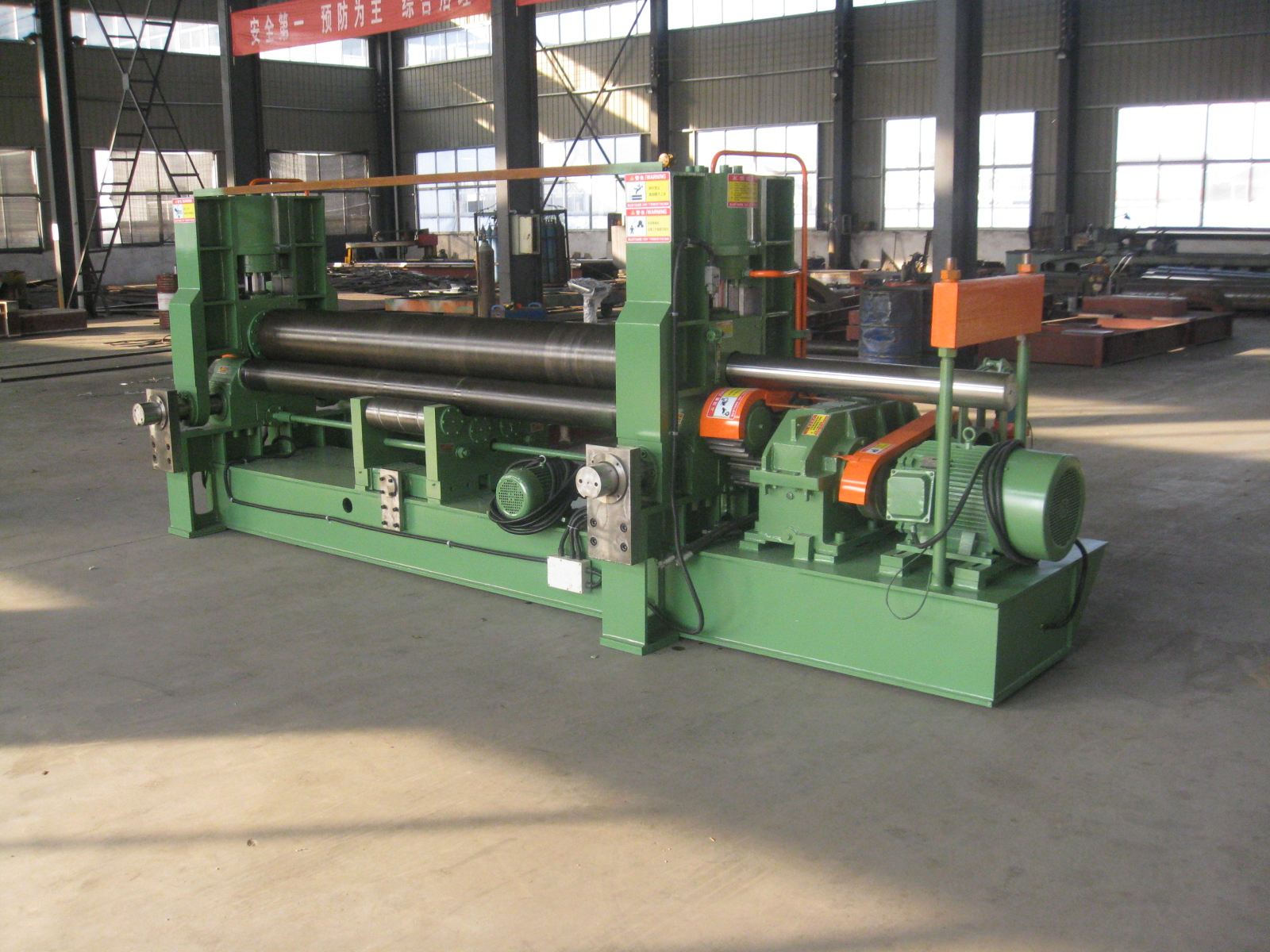

Universal Hydraulic 3-Rolling Machine_Metal Forming Machine

Rolling Machine

Home > Products > Metal Forming Machine > Rolling Machine

FEATURES
PARAMETER

The upper roll can move vertically as well as horizontally.It has double function of pre-bending and rounding.

The upper roll in drum-type,and support is added to the lower roll.Through regulations of the support roll,It can coil high precision.

Realize NC control and single-person operation.Simple and reliable,greatly raising efficiency.

Add up tapering reel and realize zero-piece coiling with great taper.

Vertical and horizontal motion of the upper roll is digitally indicated.Setting of motion scope is distinctive and direct.

Model	Max rolling thickness(mm)	Max pre-rolling thickness(mm)	Plate width(mm)	Diameter of upper roller(mm)	Main motor power(kw)
W11S-12X2000	12	10	2000	250	5.5
W11S-16X2000	16	12	2000	255	7.5
W11S-16X2500	16	12	2500	300	15
W11S-18X3000	18	14	3000	350	15
W11S-20X3000	20	16	3000	375	22
W11S-25X2500	25	20	2500	380	22
W11S-30X2500	30	25	2500	410	30
W11S-30X3000	30	25	3000	450	30
W11S-32X3000	32	28	3000	460	37
W11S-35X2500	35	30	2500	460	37
W11S-35X3000	35	30	3000	510	45
W11S-40X2500	40	35	2500	500	45
W11S-40X3000	40	35	3000	540	55
W11S-40X4000	40	32	4000	610	55
W11S-45X3000	45	40	3000	590	55
W11S-45X4000	45	40	4000	660	75
W11S-50X4000	50	45	4000	700	75
W11S-55X3000	55	45	3000	620	75
W11S-55X4000	55	50	4000	750	90
W11S-60X3000	60	50	3000	650	75
W11S-60X4000	60	55	4000	780	90
W11S-65X4000	65	60	4000	810	90
W11S-70X3000	70	60	3000	710	75
W11S-70X4000	70	65	4000	840	90
W11S-75X3000	75	65	3000	740	90
W11S-80X3000	80	70	3000	770	90
W11S-80X4000	80	75	4000	900	90
W11S-90X3000	90	80	3000	800	90
W11S-100X3000	100	90	3000	860	90
W11S-100X4000	100	85	4000	940	2X55
W11S-110X4000	110	95	4000	990	2X75
W11S-120X3000	120	100	3000	900	2X55
W11S-130X3000	130	110	3000	960	2X75
W11S-150X3000	150	120	3000	980	2X75
W11S-160X4000	160	130	4000	1260	2X90
