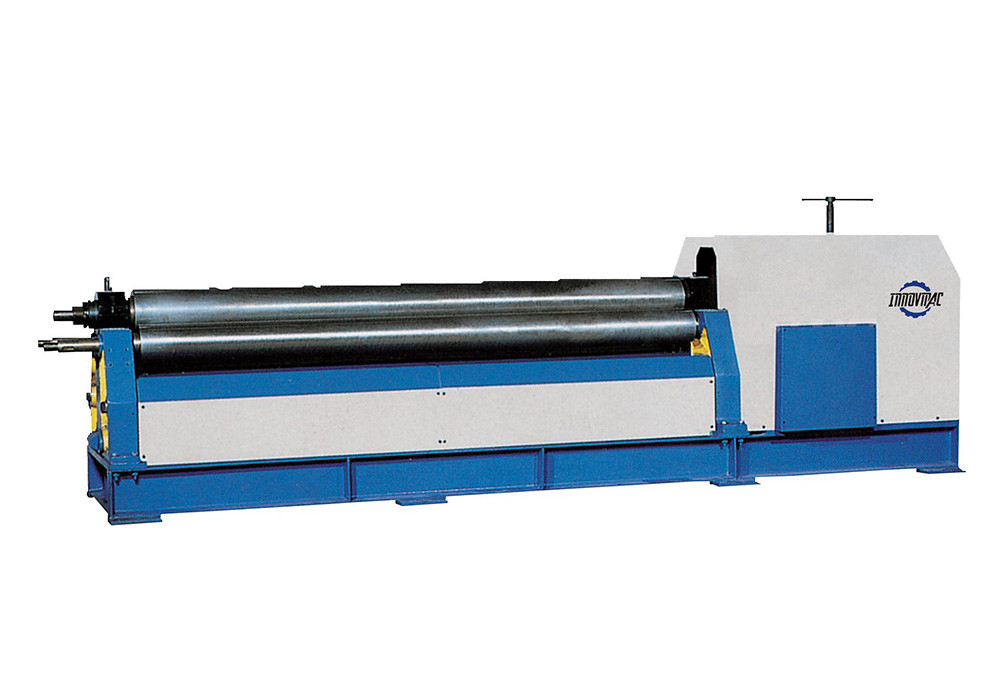

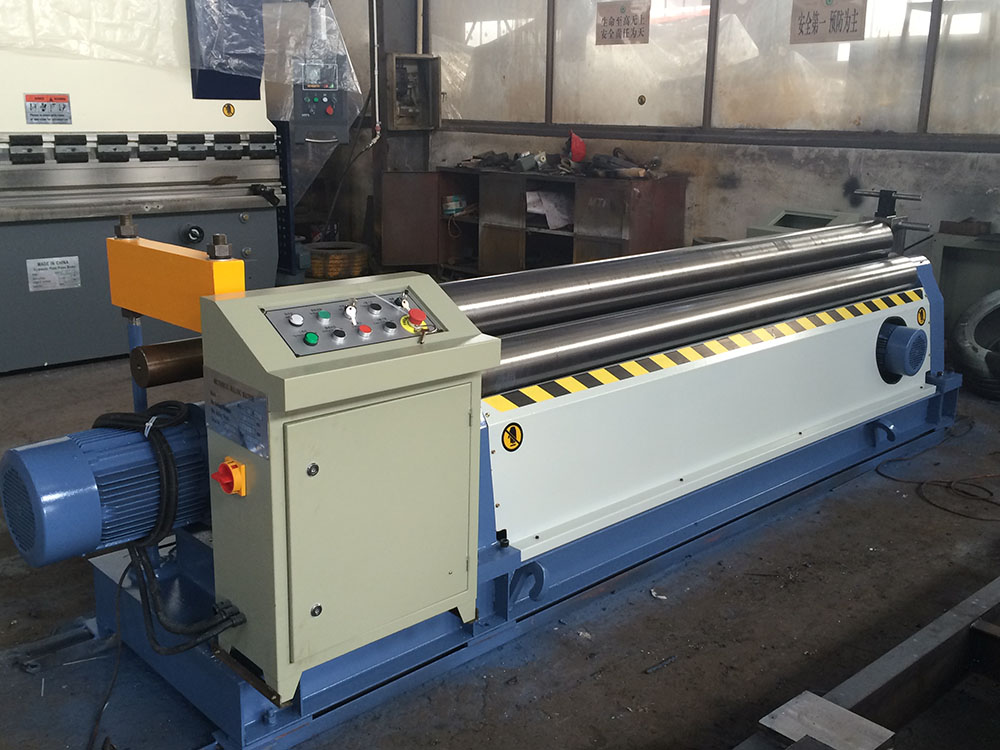

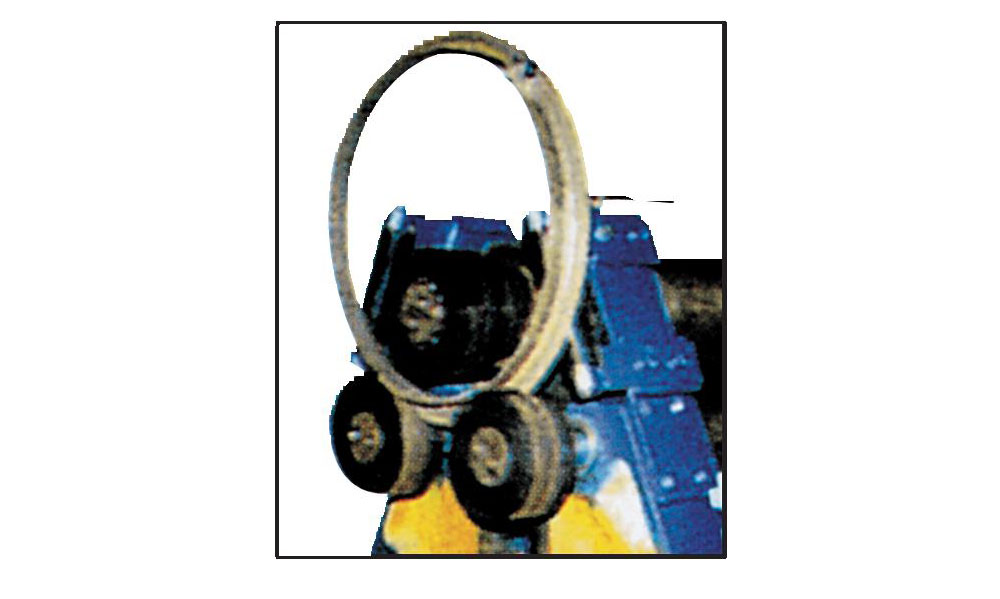

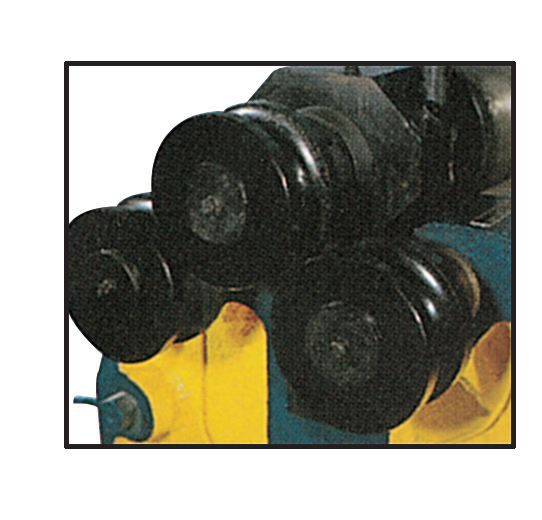

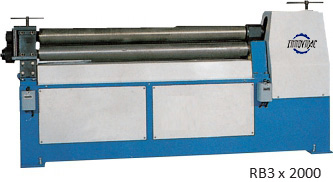

The up and down parts of W11 series 3-roller bending machine utilizes a machine construction.The transportation parts bending machine driven.The upper roller can be moved up and down by the motor to discharge the workpiece.The machine can according to customer`s requirement be supplied with specific rollers to work angle and steel pipe.
Model | Max thickness | Max width | Yield limit | Min diameter | Top roller | Bottom roller | Motor | Weight | Size |
W11-2x1000 | 2 | 1000 | 245 | 200 | 135 | 110 | 2.2 | 1060 | 1950x720x1300 |
W11-4x1300 | 4 | 1300 | 245 | 200 | 135 | 110 | 3/1.5 | 1060 | 2250x720x1300 |
W11-4x1600 | 4 | 1600 | 245 | 200 | 135 | 110 | 3/1.5 | 1450 | 2600x720x1300 |
W11-4x2000 | 4 | 2000 | 245 | 200 | 135 | 110 | 3/1.5 | 1650 | 2800x720x1300 |
W11-3x2500 | 3 | 2500 | 245 | 200 | 135 | 110 | 3/1.5 | 1950 | 3300x720x1300 |
W11-3x3100 | 3 | 3100 | 245 | 200 | 240 | 210 | 5.5/2.2 | 5390 | 4600x1150x1450 |
W11-6x2500 | 6 | 2500 | 245 | 400 | 210 | 190 | 5.5/3 | 3195 | 4100x1100x1270 |
W11-6x3100 | 6 | 3100 | 245 | 500 | 240 | 210 | 5.5/2.2 | 5390 | 4600x1150x1450 |
W11-8x2500 | 8 | 2500 | 245 | 600 | 230 | 190 | 5.5/3 | 3485 | 4100x1100x1270 |
W11-8x3100 | 8 | 3100 | 245 | 600 | 240 | 210 | 5.5/2.2 | 5390 | 4600x1150x1450 |
W11-10x1500 | 10 | 1500 | 245 | 600 | 210 | 190 | 5.5/3 | 1890 | 3200x1100x1270 |
W11-10x2500 | 10 | 2500 | 245 | 600 | 210 | 190 | 5.5/3 | 2890 | 4200x1100x1270 |
W11-10x3100 | 10 | 3100 | 245 | 600 | 210 | 190 | 5.5/3 | 3490 | 4800x1100x1270 |
W11-12x1500 | 12 | 1500 | 245 | 600 | 210 | 190 | 5.5/2/2 | 2425 | 3140x1100x1270 |
W11-12x2500 | 12 | 2500 | 245 | 600 | 210 | 190 | 5.5/2/2 | 3025 | 3740x1100x1270 |
W11-12x3100 | 12 | 3100 | 245 | 600 | 240 | 210 | 5.5/3 | 3525 | 4340x1100x1270 |
W11-16x2500 | 16 | 2500 | 245 | 800 | 380 | 340 | 5.5/3 | 4524 | 6100x2000x2150 |
W11-16x3100 | 16 | 3100 | 245 | 800 | 380 | 340 | 5.5/3 | 5125 | 6800x2000x2150 |
W11-20x2500 | 20 | 2500 | 245 | 800 | 380 | 340 | 5.5/3 | 4524 | 6100x2000x2150 |
W11-20x3100 | 20 | 3100 | 245 | 800 | 380 | 340 | 5.5/3 | 5504 | 6600x2000x2150 |
Diameter of top shaft(mm) | Diameter of bottom shaft(mm) | Motor power(kw) | Central distance between bottom shaft(mm) |
170 | 152 | 4 | 240 |
180 | 170 | 4 | 260 |
240 | 180 | 7.5 | 280 |
260 | 220 | 7.5 | 320 |
260 | 220 | 7.5 | 320 |
280 | 240 | 11 | 360 |
280 | 240 | 11 | 360 |
330 | 260 | 15 | 440 |
370 | 270 | 18.5 | 440 |
370 | 300 | 22 | 480 |
420 | 360 | 30 | 550 |
450 | 390 | 30 | 600 |
500 | 400 | 37 | 600 |
530 | 430 | 45 | 630 |
540 | 440 | 45 | 630 |
560 | 460 | 55 | 700 |
620 | 520 | 75 | 800 |
