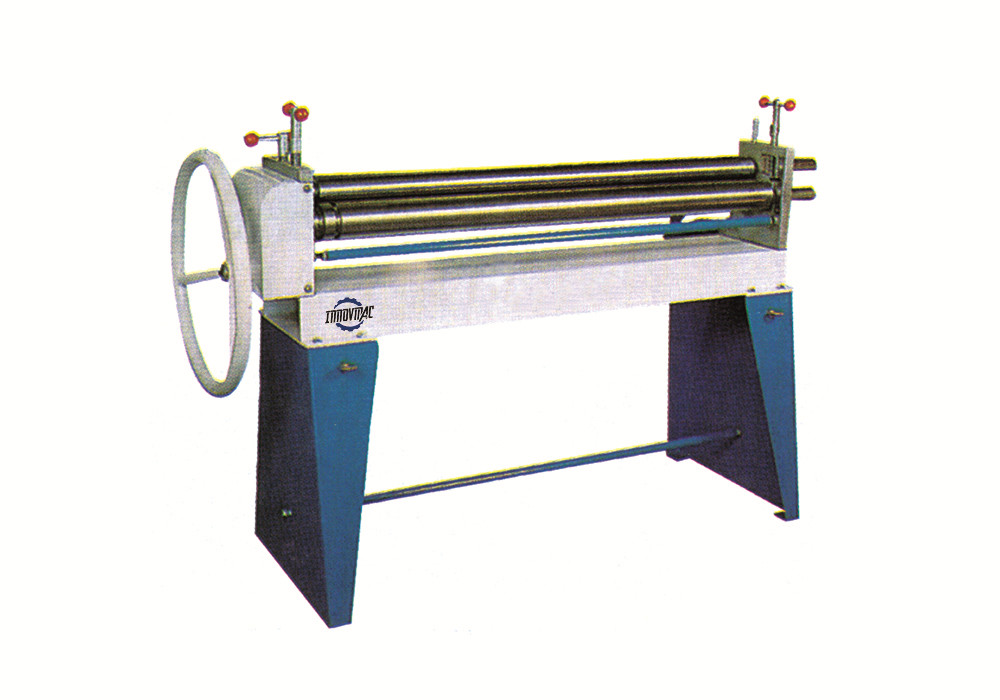

W11 W11G Asymmetrical 3-Roller Bending Machine_Metal Forming Machine

Rolling Machine

Home > Products > Metal Forming Machine > Rolling Machine

Model	Max thickness (mm)	Max width (mm)	Yield limit (Mpa)	Min diameter full capacity(mm)	Top roller diameter(mm)	Bottom roller diameter(mm)	Motor (kw)	Weight (kg)	Size (LxWxH)(mm)
W11-1x2000	1	2000	245	100	72	72	---	198	1480x530x1170
W11-1.5x1300	1.5	1300	245	100	72	72	---	223	1750x540x1120
W11-1.5x1540	1.5	1540	245	100	72	72	---	251	2000x470x1140

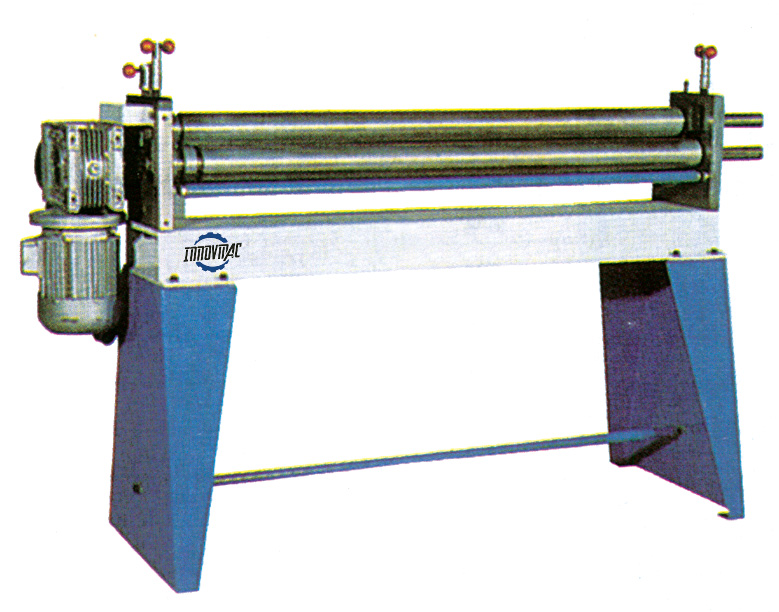

W11G-1x2000	1	2000	245	100	72	72	1.5	208	1510x530x1170
W11G-1.5x1300	1.5	1300	245	100	72	72	1.5	244	1780x540x1120
W11G-1.5x1540	1.5	1540	245	100	72	72	1.5	272	2030x540x1140
W11G-2x1000	2	1000	245	100	72	72	1.5	220	1480x530x1170

Model	Max thickness (mm)	Max width (mm)	Yield limit (Mpa)	Min diameter full capacity(mm)	Top roller diameter(mm)	Bottom roller diameter(mm)	Motor (kw)	Weight (kg)	Size (LxWxH)(mm)
W11-1x2000	1	2000	245	100	72	72	---	198	1480x530x1170
W11-1.5x1300	1.5	1300	245	100	72	72	---	223	1750x540x1120
W11-1.5x1540	1.5	1540	245	100	72	72	---	251	2000x470x1140
W11G-1x2000	1	2000	245	100	72	72	1.5	208	1510x530x1170
W11G-1.5x1300	1.5	1300	245	100	72	72	1.5	244	1780x540x1120
W11G-1.5x1540	1.5	1540	245	100	72	72	1.5	272	2030x540x1140
W11G-2x1000	2	1000	245	100	72	72	1.5	220	1480x530x1170
