WR Asymmetrical 3-Roller Bending Machine_Metal Forming Machine

Rolling Machine

Home > Products > Metal Forming Machine > Rolling Machine

FEATURES
PARAMETER

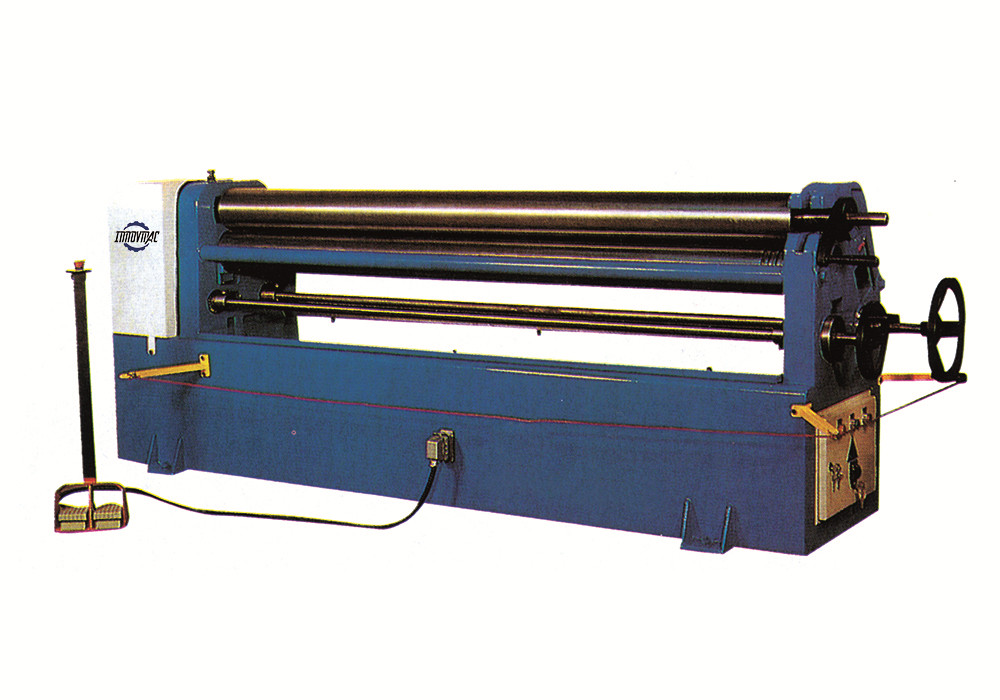

WR series asymmetrical three roller bending machine`s upper rollers is hand-adjusted up and down.The machine has a pre-bending function.Bending function is power driven,and the upper roller can be moved to remove the work piece.

Model	Max thickness (mm)	Max width (mm)	Yield limit (Mpa)	Min diameter full capacity(mm)	Top roller diameter(mm)	Bottom roller diameter(mm)	Motor (kw)	Weight (kg)	Size (LxWxH)(mm)
WR-4x1300	4	1300	245	200	135	135	2.2	1250	2200x900x900
WR-4x1600	4	1600	245	200	135	135	2.2	1550	2500x900x900
WR-4x2000	4	2000	245	200	135	135	3	1650	3210x970x1316
WR-3x2000	3	2000	245	200	135	135	3	1650	3210x970x1316
WR-3x2500	3	2500	245	200	135	135	3	1900	3706x970x1316
WR-4x2500	4	2500	245	200	135	135	3	1950	3706x970x1316
