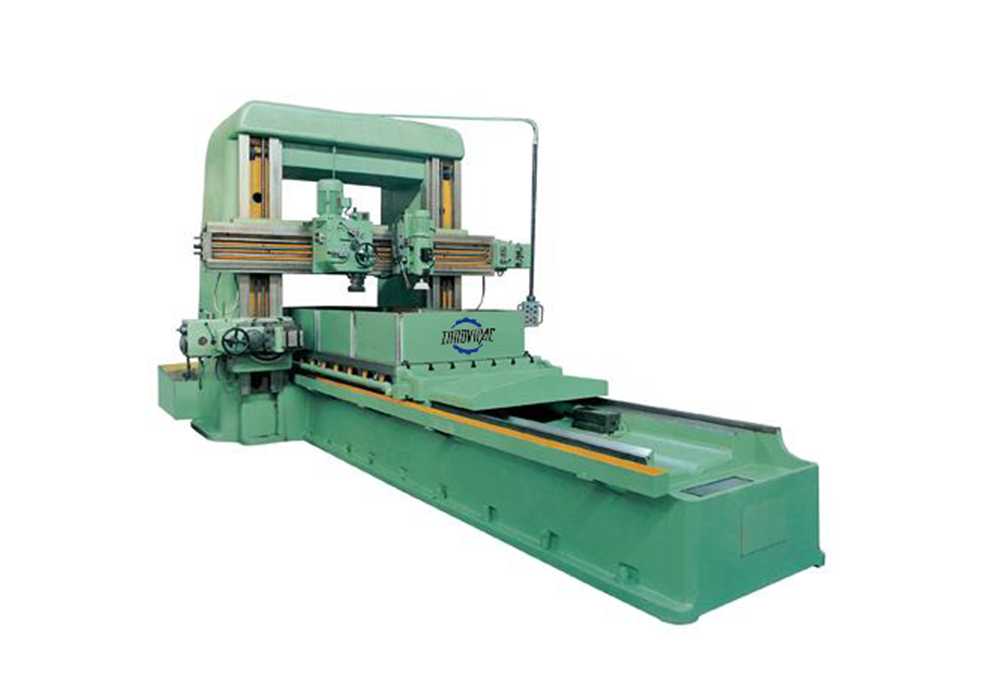

Planing Machine

Home > Products > Metal Cutting Machine > Planing Machine

FEATURES
PARAMETER

Model				B2210			B2212				B2216			B2220			B2215				B2231
Dimension of workpiece(mm) machined Max	L			3000	6000	9000	4000	6000	9000	12000	4000	6000	9000	6000	8000	10000	8400	10400	12400	16400	8000	10400	12400	16400
	W			1000			1250				1600			2000			2500				3150
	H	planing		800			1000				1250			1600			2000				2500
		milling		670			870				1120			1470			1800				2200
		grinding
Weight of workpiecemachined max(T)				5	8	12	8	10	13.5	18	10	15	18	15	20	25	32	40	48	64	40	50	60	80
Electrical system	power supply			380 50 AC 3-PHASE 38V 50HZ
	main drive motor(kw)			60
Table	area			3000	6000	9000	4000	6000	9000	12000	4000	6000	9000	6000	8000	10000	8400	10400	12400	16400	8000	10400	12400	16400
				900			1120				1400			1800			2250				2800
	tractive power on rackes Max(kn)			(V=10-25m/min)63
	stroke speed (m/min)	planting grinding		5-50 7-70													4-60
		milling		0.045-1.1 0.06-1.5													0.06-1.1
Feed of planing toolhead(mm/feed)	crossrail toolhead	vertical		0.15-7.5													0.1-11.3
		horizontal		0.2-20													0.2-30
	side toolhead	vertical		0.2-11.5													0.2-30
		horizontal		manual 0.2-7.2													0.1-11.3
milling head	spindle	rotating speed		80-610 6steps																	56-315 6steps
		sleeve	dia (mm)	150																	230
			stroke (mm)	150																	200
		taper hole dia (mm)		69.85
		hole taper		7:24
	lateral feed			0.04-1.6 6steps																	0.12-0.94 4steps
	motor power			5.5(7.5)													7.5				15
	number			1
	milling disk dia recommended(mm)			160																	315
Grinding head	wheel dia (mm)	peripheral grinding head		300-400													300-450
		end grinding head		150-170													300-400(parallel)125-200(cup)
	spindle speed (mm)	peripheral grinding head		1630													1460
		end grinding head		2880													1460:2860
	max saddle stroke (mm)	peripheral grinding head		200													150
		end grinding head		120													300
	spindle speed	peripheral grinding head		1:5
		end grinding head		1:15													1:5(O.D) 1:19254(I.D)
	motor power (kw)	peripheral grinding head		3													7.5
		end grinding head		2.2													4.5:5.5
Overall dimension(mm)	L			3000	6000	9000	4000	6000	9000	12000	4000	6000	9000	6000	8000	10000	8400	10400	12400	16400	8000	10400	12400	16400
	W			4050			4320				4820			5120			5900				6500
	H			2780			3000				3650			4250			5050				5850
Total weight				25	33	41	31	36	45	53	40	46	55	54	60	66	90	102	114	138	110	125	140	170

Model				B2210			B2212				B2216			B2220			B2215				B2231
Dimension of workpiece(mm) machined Max	L			3000	6000	9000	4000	6000	9000	12000	4000	6000	9000	6000	8000	10000	8400	10400	12400	16400	8000	10400	12400	16400
	W			1000			1250				1600			2000			2500				3150
	H	planing		800			1000				1250			1600			2000				2500
		milling		670			870				1120			1470			1800				2200
		grinding
Weight of workpiecemachined max(T)				5	8	12	8	10	13.5	18	10	15	18	15	20	25	32	40	48	64	40	50	60	80
Electrical system	power supply			380 50 AC 3-PHASE 38V 50HZ
	main drive motor(kw)			60
Table	area			3000	6000	9000	4000	6000	9000	12000	4000	6000	9000	6000	8000	10000	8400	10400	12400	16400	8000	10400	12400	16400
				900			1120				1400			1800			2250				2800
	tractive power on rackes Max(kn)			(V=10-25m/min)63
	stroke speed (m/min)	planting grinding		5-50 7-70													4-60
		milling		0.045-1.1 0.06-1.5													0.06-1.1
Feed of planing toolhead(mm/feed)	crossrail toolhead	vertical		0.15-7.5													0.1-11.3
		horizontal		0.2-20													0.2-30
	side toolhead	vertical		0.2-11.5													0.2-30
		horizontal		manual 0.2-7.2													0.1-11.3
milling head	spindle	rotating speed		80-610 6steps																	56-315 6steps
		sleeve	dia (mm)	150																	230
			stroke (mm)	150																	200
		taper hole dia (mm)		69.85
		hole taper		7:24
	lateral feed			0.04-1.6 6steps																	0.12-0.94 4steps
	motor power			5.5(7.5)													7.5				15
	number			1
	milling disk dia recommended(mm)			160																	315
Grinding head	wheel dia (mm)	peripheral grinding head		300-400													300-450
		end grinding head		150-170													300-400(parallel)125-200(cup)
	spindle speed (mm)	peripheral grinding head		1630													1460
		end grinding head		2880													1460:2860
	max saddle stroke (mm)	peripheral grinding head		200													150
		end grinding head		120													300
	spindle speed	peripheral grinding head		1:5
		end grinding head		1:15													1:5(O.D) 1:19254(I.D)
	motor power (kw)	peripheral grinding head		3													7.5
		end grinding head		2.2													4.5:5.5
Overall dimension(mm)	L			3000	6000	9000	4000	6000	9000	12000	4000	6000	9000	6000	8000	10000	8400	10400	12400	16400	8000	10400	12400	16400
	W			4050			4320				4820			5120			5900				6500
	H			2780			3000				3650			4250			5050				5850
Total weight				25	33	41	31	36	45	53	40	46	55	54	60	66	90	102	114	138	110	125	140	170
