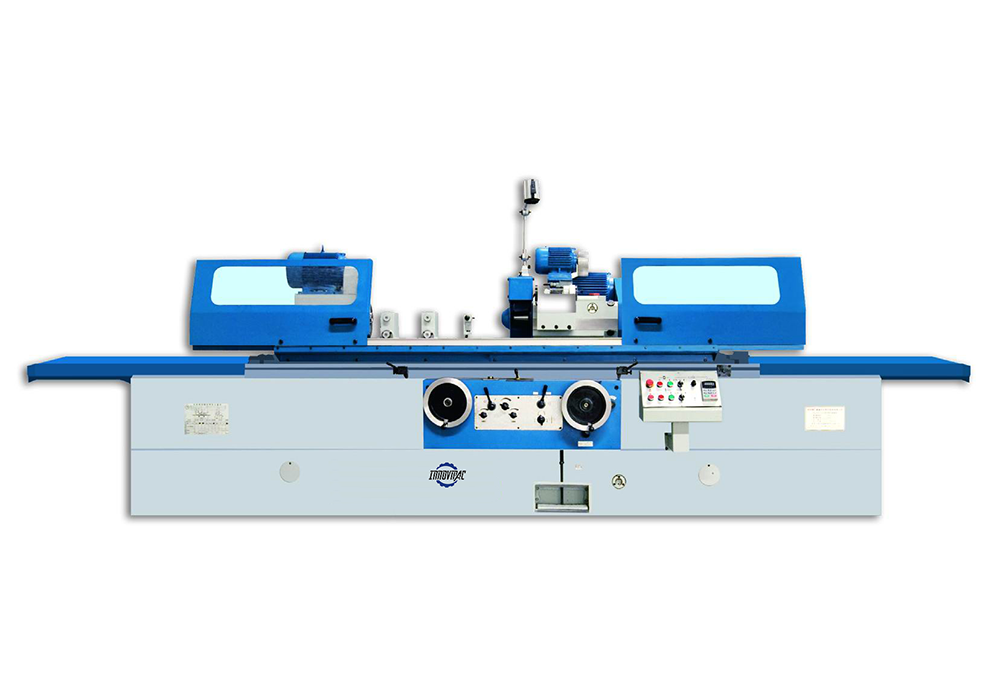

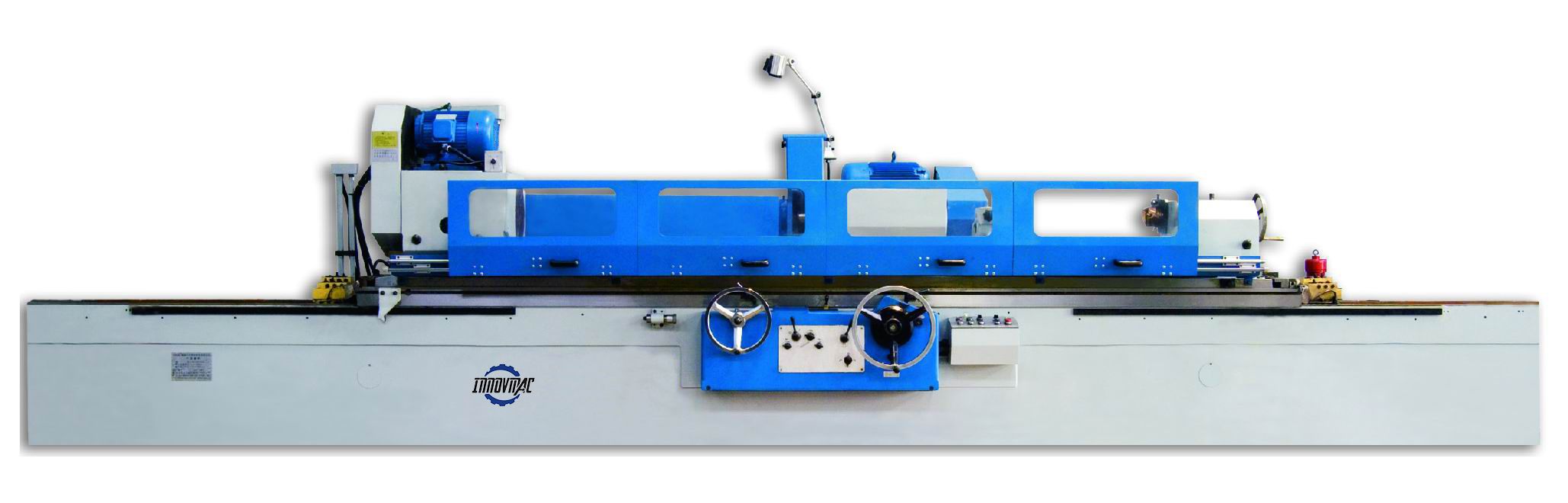

◆The horizontal feed of wheelhead is driven by hydraulic pressure to realize micro automatic periodic feed and fast advance and regress.Also can do manually rough fine feeding.
◆M1350, M1450, M1363 series table and wheelhead guide rail adopt static guide rail, low speed motion is stable.
◆M1350, M1450, M1363 series wheelhead with high rigid spindle, high rotary precision, good rigidity. The workhead adopts frequency converter to realize stepless speed regulation.
◆Universal workhead can be adjusted at any Angle within 90 degrees counterclockwise to adapt to chuck grinding internal and external conical workpiece.
Standard accessories:
Cooling water tank
External circle dresser
Grinding wheel chuck and handing tools
Open center frame standard
Balance shaft
Leveling pad iron
Working light
Open center frame
Center
Optional accessories:
Wheel balancing stand
Magnetic separator
Magnetic separator belt filter
Grinding center device
Closed center rest
End face wheel dresser
Radius wheel dresser
M13
Model | Unit | MW1320 | M1332 | M1350 | M1363 | MQ1380A |
General capacity | ||||||
Distance between centers | mm | 500,750 | 1000,1500,2000,3000 | 1500,2000,3000,4000 | 2000,3000,4000,5000 | 3000,4000,5000 |
Center height | mm | 135 | 180 | 270 | 370 | 500 |
Dia ground(O.D) | mm | 5-200 | 8-320 | 25-500 | 30-630 | 50-800 |
Max length ground(O.D) | mm | 500,750 | 1000,1500,2000,3000 | 1500,2000,3000,4000 | 2000,3000,4000,5000 | 3000,4000,5000 |
Max weight of work piece | kg | 100 | 150 | 1000 | 3000 | 3000 |
Workhead | ||||||
Center taper(MT) | 4 | 5 | 6 | metric 80# | metric 80# | |
Spindle speed | r/min | 50HZ:25-380 stepless | 26,52,90,130,180,260 | 50HZ:18-160 stepless | 50HZ:10-100 stepless | 50HZ:10-100 stepless |
Wheelhead | ||||||
Wheel spindle speed | r/min | 1335 | 1100 | 870 | ||
Wheelhead rapid travel | mm | 50 | 100 | |||
Max travel | mm | 205 | 235 | 438 | 475 | 550 |
Hnad feed per rev | rough:2 fine:0.5 | rough:4 fine:0.5 | ||||
Hnad feed per gra | rough:0.01 fine:0.0025 | rough:0.02 fine:0.0025 | ||||
Wheel size | mm | 500x50x203 | 600x63x305 | 750x75x305 | ||
Peripheral velocity | m/s | 35 | ||||
Table | ||||||
Hand feed per rev | mm | 6 | 5 | |||
Max swiveling angle of table | ° | 3° | 3°(1000,1500),2°(2000,3000) | 3°(1500),2°(2000,3000),1°(4000) | 2°(2000),1°(3000,4000,5000) | 1°(3000,4000,5000) |
° | 9°(500),8°(750) | 7°(1000),6°(1500),5°(2000),3°(3000) | 6°(1500),5°(2000),3°(3000),2°(4000) | 4°(2000),3°(3000),2.5°(4000),1.5°(5000) | 3°(3000),2.5°(4000),1°(5000) | |
Longitudinal speed range of table | m/min | 0.1-4 | 0.1-3 | 0.1-2.5 | 0.1-2.5 | |
Tailstock | ||||||
Center taper(MT) | 4 | 6 | metric 80# | metric 80# | ||
Quill travel | mm | 30 | 70 | 70 | 70 | |
Motor | ||||||
Wheelhead motor power | kw | 5.5 | 11 | 15 | 22 | 22 |
Workhead motor power | kw | 1.1 | 0.75/1.5 | 2 | 15 | 15 |
Machine | ||||||
Gross weight | t | 4(500),4.2(750) | 5.3(1000),6.1(1500),7.9(2000),9.9(3000) | 11.2(1500),13(2000),17.4(3000),20(4000) | 22(2000),28(3000),34(4000),39(5000) | 30(3000),36(4000),41(5000) |
Packing dimension | cm | 235x203x205(500) | 322x200x205(1000) | 510x228x210(1500) | 695x242x226(2000) | 890x260x230(3000) |
M14
Model | Unit | MW1420 | M1432B | M1450 | M1463 | |
General capacity | ||||||
Distance between centers | mm | 500,750 | 1000,1500,2000,3000 | 1500,2000,3000,4000 | 2000,3000,4000,5000 | |
Center height | mm | 135 | 180 | 270 | 370 | |
Dia ground(O.D) | mm | 5-200 | 8-320 | 25-500 | 30-630 | |
Dia ground(I.D) | mm | 25-100 | 30-100 | 30-200 | 30-250 | |
Max length ground(O.D) | mm | 500,750 | 1000,1500,2000,3000 | 1500,2000,3000,4000 | 2000,3000,4000,5000 | |
Max length ground(I.D) | 125 | 125 | 320 | 320 | ||
Max weight of work piece | kg | 100 | 150 | 1000 | 3000 | |
Workhead | ||||||
Swiveling angle | ° | +90 | +90 | +90 | ||
Center taper(MT) | 4 | 4 | 6 | 6 | ||
Spindle speed | r/min | 50HZ:25-380 stepless | 50HZ:25-220 stepless | 50HZ:20-224 stepless | 50HZ:14-140 stepless | |
Wheelhead | ||||||
Wheel spindle speed | r/min | 1670 | 1670 | 1330/665 | 1100/550 | |
Wheelhead rapid travel | mm | 50 | 50 | 100 | 100 | |
Max travel | mm | 205 | 246 | 370 | 450 | |
Swiveling angle | ° | +10 | +-30 | -30 | +-30 | |
Hnad feed per rev | rough:2 fine:0.5 | rough:2 fine:0.5 | rough:4 fine:0.5 | rough:4 fine:0.5 | ||
Hnad feed per gra | roung:0.01 fine:0.0025 | roung:0.01 fine:0.0025 | rough:0.02 fine:0.0025 | rough:0.02 fine:0.0025 | ||
Wheel size | mm | 400x50x203 | 400x50x203 | 500x75x305 | 600x75x305 | |
Peripheral velocity | m/s | 35 | 35 | 35/17.5 | 35/17.5 | |
Internal grinding device | ||||||
Spindle speed | r/min | 10000/15000 | 10000/15000 | 10000 | 10000 | |
Dimension of wheel | mm | max:35x25x10 | max:50x25x10 | max:175x32x13 | max:175x32x13 | |
Table | ||||||
Hand feed per rev | mm | 6 | 6 | 5 | 5 | |
Max swiveling angle of table | Clockwise | ° | 3 | 3(1000,1500),2(2000,3000) | 3(1500),2(2000,3000),1(4000) | 2(2000),1(3000,4000,5000) |
Anticlockwise | ° | 9(500),8(750) | 7(1000),6(1500),5(2000),3(3000) | 6(1500),5(2000),3(3000)1(4000) | 4(2000),3(3000),2.5(4000)1.5(5000) | |
Longitudinal speed range of table | m/min | 0.1-4 | 0.1-4 | 0.1-3 | 0.1-2.5 | |
Tailstock | ||||||
Center taper(MT) | 4 | 4 | 6 | Metric 80# | ||
Quill travel | mm | 30 | 30 | 70 | 70 | |
Motor | ||||||
Wheelhead motor power | kw | 4 | 5.5 | 5/7.5 | 7/11 | |
Internal grinding | kw | 1.1 | 1.1 | 1.5 | 1.5 | |
Workhead motor power | kw | 1.1 | 1.5 | 4 | 1.5 | |
Machine | ||||||
Gross weight | t | 4.1(500),4.3(750) | 5.3(1000),6.1(1500),7.9(2000),9.9(3000) | 11.2(1500),13(2000),17.4(3000).17(4000) | 20(2000),22(3000),24(4000),26(5000) | |
Packing dimension | cm | 235x203x205(500) | 322x200x205(1000) | 510x228x210(1500) | 695x242x226(2000) | |
