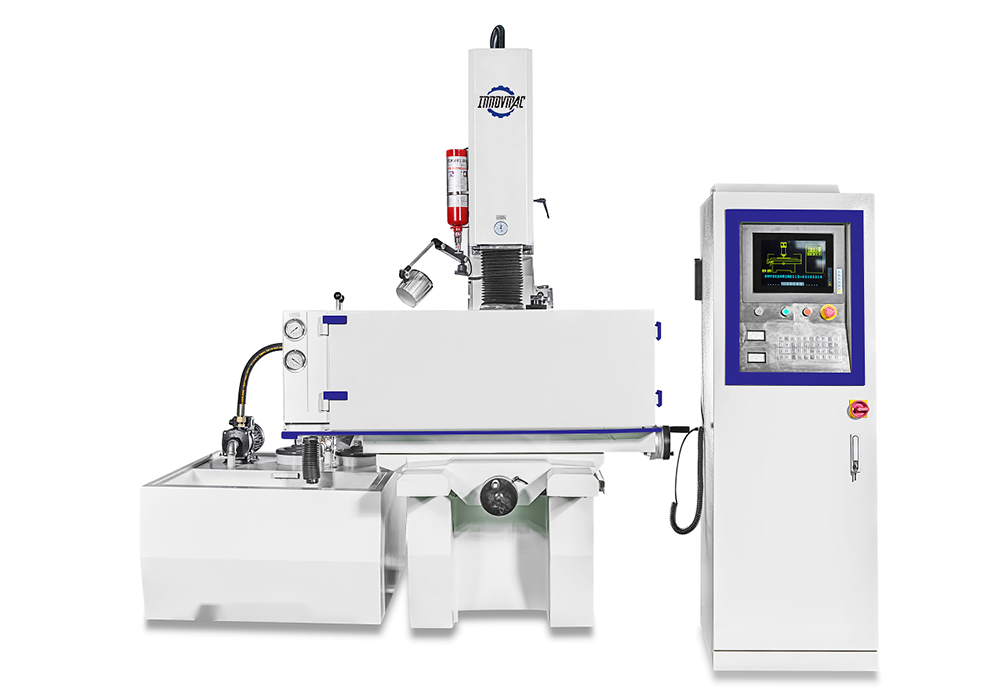

1. Three axis linkage motion, vast position memory
2. Auto chosen parameter for different result,processing molds in one program
3. Programmable various orbicut modes
4. Files save in customer name
5. Self compensation for electrode ware
6. Auto centering and auto mold verified
7. Erosion status self adaptor, help to adjust discharging frequency in unstable status
8. Default mechanical origin(HOME Function)
9. Arc protection,auto set parameters in arc trend
10. Special Mirror processing circuit
11. Planet movement in ●/⊱/×/＋mode and horizontal erosion
12. Dialogue box in Chinese/English Graphic User Interface
13. "DRY RUNNING" function to simulation processing and verify program
14. Position closed loop control system with linear scales
15. Fuzzy Control: input erosion depth and result roughness, system would fill up parameters table automatically.
Model | EDM300 | EDM320 | EDM430 | EDM450 | EDM550 | EDM650 | EDM1060 | EDM1260 | EDM2180 |
Worktable dimension | 500×250 | 600×300 | 700×400 | 700×420 | 900×500 | 1100×650 | 1250×800 | 1250×800 | 2500×1200 |
Travel(X axis) | 300 | 300 | 400 | 450 | 550 | 650 | 1000 | 1200 | 2100 |
Travel(Y axis) | 200 | 250 | 300 | 350 | 450 | 550 | 600 | 600 | 800 |
Travel(Z axis) | 220 | 160+200 | 200+200 | 200+200 | 220+300 | 280+350 | 550 | 550 | 600 |
Oil tank dimension | 830×520×315 | 900×570×345 | 1140×645×360 | 1140×670×400 | 1440×860×500 | 1750×1080×600 | 2000×1300×700 | 2000×1300×700 | 3500×1800×700 |
Distance from axis to worktable | 500 | 530 | 630 | 670 | 870 | 890 | 1100 | 1100 | 1200 |
Max load of Z axis | 50kg | 50kg | 70kg | 90kg | 120kg | 200kg | 300kg | 300kg | 350kg |
Max load of worktable | 350kg | 450kg | 1000kg | 1200kg | 1500kg | 2000kg | 4500kg | 4500kg | 6000kg |
Electronic control system | ||||||
Model | ZG-30 | ZG-60 | ZG-100 | ZG-200 | ZG-50ZNC | ZG-50CNC |
Power | 2.5KVA | 4.8KVA | 7.5KVA | 14KVA | 4.5KVA | 4.5KVA |
Max output current | 30A | 60A | 100A | 200A | 50A | 50A |
Max work efficiancy | ≥250mm3/min | ≥500mm3/min | ≥1200mm3/min | ≥2500mm3/min | ≥400mm3/min | ≥400mm3/min |
Min electrode dissipation | ＜0.2% | ＜0.2% | ＜0.2% | ＜0.2% | ＜0.1% | ＜0.1% |
Best machine accuracy | Ra≤0.4μm | Ra≤0.4μm | Ra≤0.4μm | Ra≤0.4μm | Ra≤0.2μm | Ra≤0.2μm |
Displayer | Digital LED | Digital LED | Digital LED | Digital LED | LED for numerical control | LED for numerical control |
