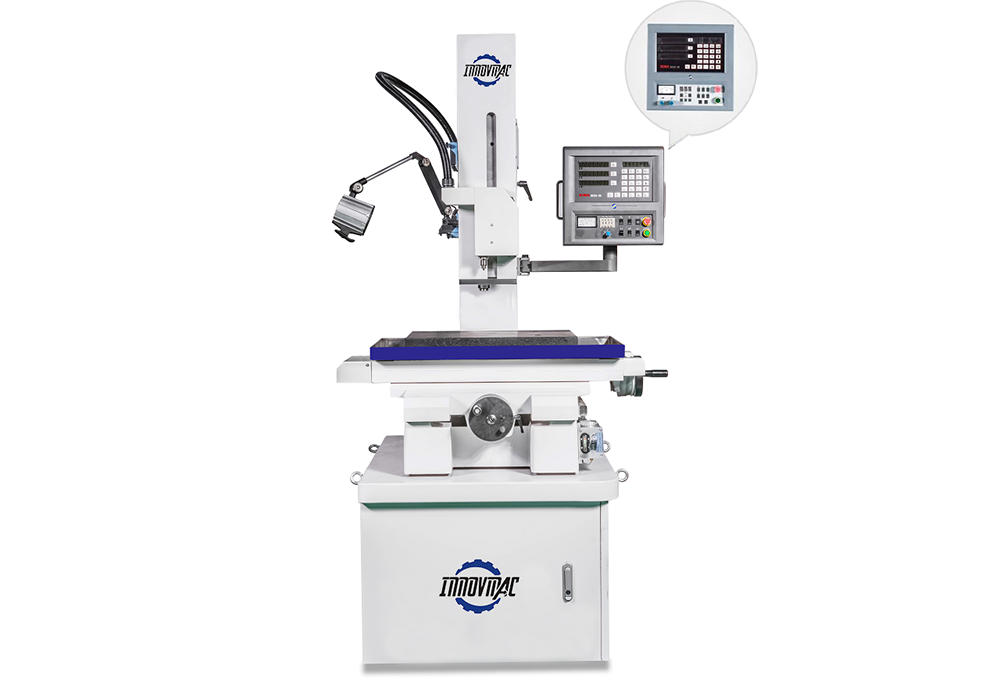

DEM Drilling Machine
Make deep hole from diameter 0.15-3.0mm rapidly
Z axis servo motor drive,move rapidly
Z axis mounts on linear guides for high precision
X,Y,Z,W axis adopt ball screw for moving
W-axis electric lift
Taiwan special pump
EDM automatic depth setting function,blind hole processing intelligent one button automatic processing function
Aluminium circuit
Model | Unit | ZGD703A | ZGD703AD |
Worktable dimension | mm | 550x360 | |
Travels XxYxZ | mm | 350x250x380 | |
Travels W | mm | 300 | |
Minimum resolution of each axis | mm | 0.005 | |
Load on work table | kg | 350 | |
Maximum height of workpiece | mm | 370 | |
Electrode dimension | mm | Φ0.15-Φ3mm | |
Diameter to deep ratio | mm | ≥300 | |
Max pressure of working water | kg/cm2 | 110 | |
Max work current | A | 30(50A) | |
Max cutting efficiency | mm | 30-60 | |
Work piece material | Steel/Aluminum/Copper/Various of conductors | ||
