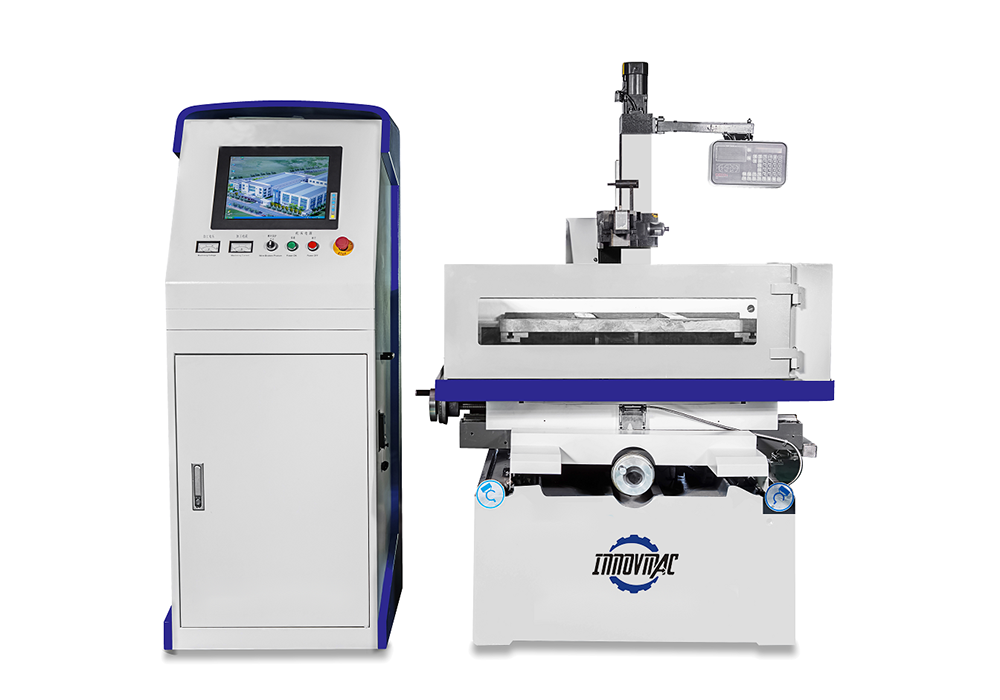

1. Command based on industry PC, stable and reliable.
2. Programming and controlling at the same time.
3. Adopt ISO-G and 3B mode,transferring AUTOCAN automatically.
4. Drawing's programming,convenient and easy.
5. Display the work trail and data real time,4-axes combined motion, working with different shape.
6. Data memorable. Auto back in short circuit, stop when wire break,shut down after machining and etc.
Model | DK7725 | DK7732 | DK7740 | DK7750 | DK7763 | DK7780 | DK77100 |
WorktableDimension | 520×336(mm) | 500×750(mm) | 570×880(mm) | 600×900(mm) | 660×1100(mm) | 820×1400(mm) | 1090×1600(mm) |
Worktable(XY) | 250×320(mm) | 320×400(mm) | 400×500(mm) | 500×630(mm) | 630×800(mm) | 800×1000(mm) | 1000×1200(mm) |
MaxcuttingThickness | 400mm | 400mm | 400mm | 500mm | 500mm | 500mm | 500mm |
MaxcuttingTaper | 6°/80mm | 6°~30°/80mm | 6°~30°/80mm | 6°~30°/80mm | 6°~30°/80mm | 6°/200mm | 6°/200mm |
MaxcuttingSpeed | ³180mm2/min | 180mm2/min | |||||
BestSurfaceFinish | Ra≤0.8um | Ra≤0.8um | |||||
ElectrodeWireDiameter | φ0.10~φ0.25mm | φ0.10~φ0.25mm | |||||
ElectrodeWirerollingspeed | 11m/s | 11m/s | |||||
WorkWater | DX-1DX-4-1 | DX-1DX-4-1 | |||||
Accuracy | GB7926-87 | GB7926-87 | |||||
WorktableVirtualmotionperpulse | 0.001mm | 0.001mm | |||||
PowerSupply | AC.380V.50Hz | AC.380V.50Hz | |||||
Machineactualpower | ≤1.2KW | ≤1.2KW | |||||
Maxloadweight | 120kg | 250kg | 320kg | 600kg | 1000kg | 1200kg | 1600kg |
Machineweight | 950kg | 1400kg | 1600kg | 2300kg | 4500kg | 6700kg | 7000kg |
MachineDimension | 1300×900×1465(mm) | 1600×1200×1500(mm) | 1700×1400×1600(mm) | 1910×1550×1830(mm) | 2140×1830×1850(mm) | 2500×2450×1970(mm) | 3230×2560×1960(mm) |
PackingboxDimension | 1600×1100×1800(mm) | 1700×1200×1800(mm) | 1800×1200×1900(mm) | 2300×1800×2100(mm) | 2600×2150×2100(mm) | 3200×3100×2800(mm) | 3700×3500×2800(mm) |
