Characters
1.1 Stable performance, smooth and stable moving, high accuracy on positioning,
1.2 Easy maintenance: modularization design to make the spare parts of the machines having high interchange ability
1.3 Flame single cutting torch(standard), Flame triple torch straight line bevel station(Option) and CNC rotation bevel head(option), auto height sensor(standard), high-low preheating auto-piercing(option), auto-ignition(standard) etc can equipped on it, according to customer’s need.
Structure

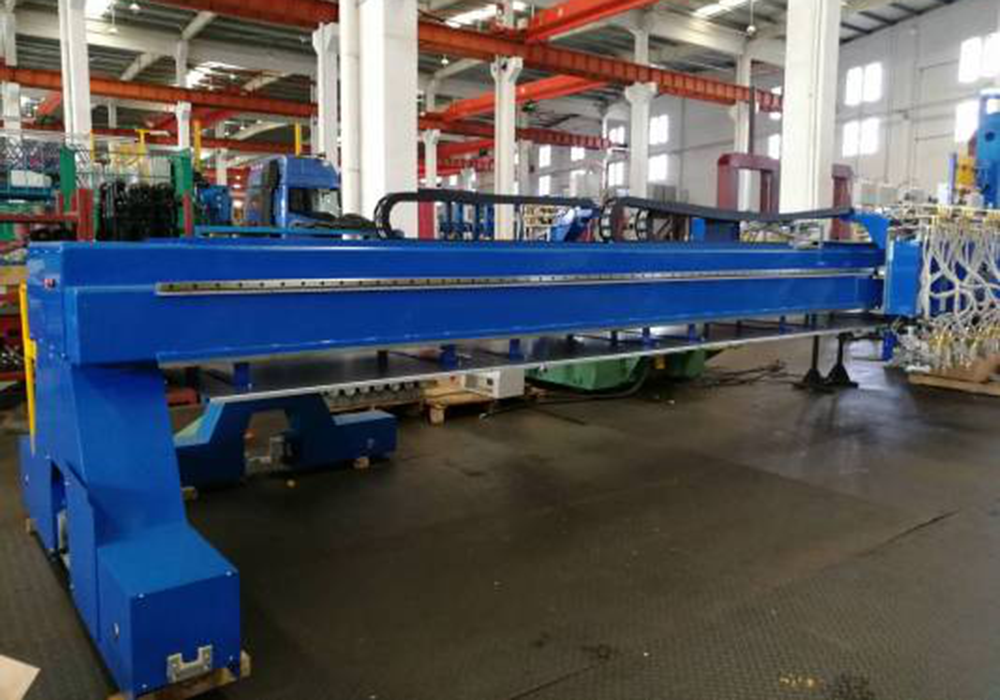

2.1 Machine gantry
2.2 Longitudinal drive device, transverse drive device,
2.3 Heavy duty CNC torch carriage,
2.4 Longitudinal rail device,
2.5. Energy supply system,
2.6 Electric control system.
Configuration
1 Software:FASTCAM,Austrilia,1set
2 CNC controller:JF-CNC MAX,China With air conditioner
3 Torch carriage: 1 set,Jinfeng,China
4 Auto height control sensor for 1 plasma torch,Jinfeng,China
5 Servo motor and gearbox: Panasonic and Shimpo,Japan
6 PLC:Delta,Taiwan
7 Laser cross point: 1set,China
8 Color light with buzzer:1 set,China
9 Rail class: 24KGS/m
11 Effective cutting size:3000mmx6000mm
1.Main technology parameters
1 | Machine Model | MG300 | |
2 | CNC system | 1 set, CNC MAX(F7000),China | |
3 | CNC system position | LEFT | |
4 | Motor Drive | Dual drive | |
5 | CNC Plasma | CNC plasma torch carriage | 1set, for plasma torch |
Plasma arc voltage height sensor | 1set, Auto height control | ||
Plasma torch | 1 set ,Hypertherm,USA | ||
Plasma power source | 1set,,Hypertherm,USA | ||
6 | Cable/hose layout | Go through Cable chain | |
7 | Painting color | RAL5015 | |
8 | Servo motor for longitudinal drive | Panasonic Japan brand,2sets | |
9 | Gearbox for longitudinal drive | Shimpo Japan brand,2sets | |
2. Main technical specifications
1 | Rail span / Effective cutting width | 3000mm /2000mm | ||||
2 | Rail length / Effective cutting length | 9000mm / 6000mm | ||||
3 | Rapid speed | 0.1-12m/min | ||||
4 | CNC torch lifting distance | 200mm | ||||
5 | Linear positioning accuracy | ±0.5mm/10m | ||||
6 | Linear repeating accuracy | ±0.4mm/10m | ||||
7 | Line marking accuracy | ≤0.5mm | ||||
8 | Speed setting accuracy | ≤±5％ | ||||
9 | Cutting surface roughness | Ra12.5～25 | ||||
10 | AHC accuracy | ≤0.5mm | ||||
11 | Transmission in X, Y direction | Pinion and rack | ||||
12 | Guide rail in X direction | Milled rail from train way rail (after rail grinding) | ||||
13 | Guide rail in Y direction | Linear guide rail | ||||
14 | Plasma cutting thickness | See list below | ||||
Cutting capacity for mild steel of Hypertherm plasma source | |
Normal air cutting system | Longlife Air and oxygen plasma cutting system MAX200PRO,Hypertherm,USA |
|
|
Max severance thickness: 50mm
3. Working environment
1 | Environment temperature | -10-45℃ |
2 | Humidity | <90%( no condensation) |
3 | Surrounding | Wind speed≤6m/s, no big vibration |
4 | Sea Level | <1500m |
5 | Power supply | 220V/50HZ/1Ph |
