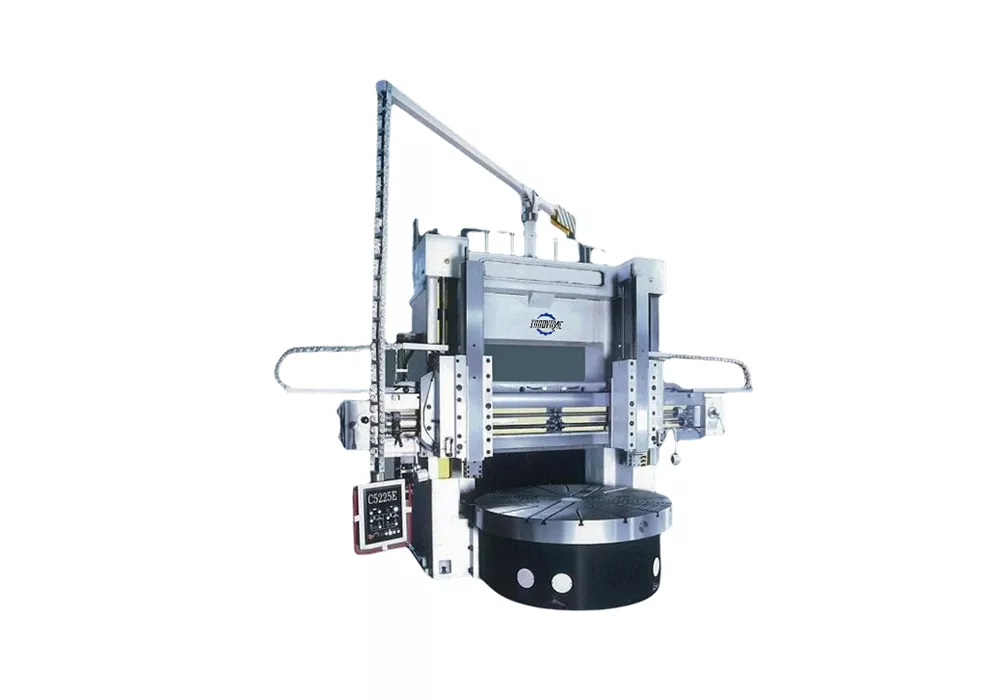

Double Column Vertical Turret Lathe

Home > Products > Metal Cutting Machine > Lathe Machine > Double Column Vertical Turret Lathe

FEATURES
PARAMETER

This series machine is suitable for motor,turbine generator,aviation,mining machinery,metallurgy and common machinery dustries machining cylindrical turning and boring,tapering and grooving roughly and finely etc.

The main drive adopts AC motors,and sliding guideway or table are provided according to the customers requests.

Feed system adopts AC motor with 18 steps.

Accessories including side head,cooling system and digtal display device can be provided according to the special requirements.

Model		Unit	C5231Ex25/12(20)	C5235Ex20/12(20)	C5235Ex25/12(20)	C5240Ex20/12(20)	C5240Ex25/12(20)
Table diameter		mm	2830	2830	2830	3150	3150
Max turning diameter		mm	3150	3500	3500	4000	4000
Max height of workpiece		mm	2500	2000	2500	2000	2500
Max weight of workpiece		t	12/20	12/20	12/20	12/20	12/20
Section of tool bar		mm	40x50	40x50	40x50	40x50	40x50
Max cutting force of right railhead		N	35000	35000	35000	35000	35000
Max cutting force of left railhead		N	30000	30000	30000	30000	30000
Total cutting force		N	63000	63000	63000	63000	63000
Max torque of table		N.m	63000	63000	63000	63000	63000
Step of table speed			horizontal axis 16 stpes	horizontal axis 16 stpes	horizontal axis 16 stpes	horizontal axis 16 stpes	horizontal axis 16 stpes
Speed change of table		r/min	2-63	2-63	2-63	2-63	2-63
Step of carriage feed			AC 18 step	AC 18 step	AC 18 step	AC 18 step	AC 18 step
Feed range of carriage		mm/min	0.25-90	0.25-90	0.25-90	0.25-90	0.25-90
Max travel of right railhead		mm	1730	1920	1920	2165	2165
Max travel of left railhead	Vertical	mm	1250	1000	1250	1000	1250
	Horizontal	mm	1730	1920	1920	2165	2165
	Vertical	mm	1250	1000	1250	1000	1250
Swivel limit of railhead			±30	±30	±30	±30	±30
Rapid traverse of right tool head		mm/min	1560	1560	1560	1560	1560
Max travel of crossrail		mm/min	2150	1650	2150	1650	2150
Elevation speed of crossrail		mm/min	354	354	354	354	354
Power of main motor		kw	AC 55	AC 55	AC 55	AC 55	AC 55
Power of crossrail elevating motor		kw	11	11	11	11	11
Guideway form of work table			hydrostaic guideway	hydrostaic guideway	hydrostaic guideway	hydrostaic guideway	hydrostaic guideway

Model		Unit	C5225Ex16/12(20)	C5225Ex20/12(20)	C5225Ex25/12(20)	C5231Ex16/12(20)	C5231Ex20/12(20)
Table diameter		mm	2250	2250	2250	2830	2830
Max turning diameter		mm	2500	2500	2500	3150	3150
Max height of workpiece		mm	1600	2000	2500	1500	2000
Max weight of workpiece		t	12/20	12/20	12/20	12/20	12/20
Section of tool bar		mm	40x50	40x50	40x50	40x50	40x50
Max cutting force of right railhead		N	35000	35000	35000	35000	35000
Max cutting force of left railhead		N	30000	30000	30000	30000	30000
Total cutting force		N	63000	63000	63000	63000	63000
Max torque of table		N.m	63000	63000	63000	63000	63000
Step of table speed			horizontal axis 16 stpes	horizontal axis 16 stpes	horizontal axis 16 stpes	horizontal axis 16 stpes	horizontal axis 16 stpes
Speed change of table		r/min	2-63	2-63	2-63	2-63	2-63
Step of carriage feed			AC 18 step	AC 18 step	AC 18 step	AC 18 step	AC 18 step
Feed range of carriage		mm/min	0.25-90	0.25-90	0.25-90	0.25-90	0.25-90
Max travel of right railhead		mm	1400	1400	1400	1730	1730
Max travel of left railhead	Vertical	mm	1000	1000	1250	1000	1000
	Horizontal	mm	1400	1400	1400	1730	1730
	Vertical	mm	1000	1000	1250	1000	1000
Swivel limit of railhead			±30	±30	±30	±30	±30
Rapid traverse of right tool head		mm/min	1560	1560	1560	1560	1560
Max travel of crossrail		mm/min	1250	1650	2150	1250	1650
Elevation speed of crossrail		mm/min	350	350	350	354	354
Power of main motor		kw	AC 55	AC 55	AC 55	AC 55	AC 55
Power of crossrail elevating motor		kw	7.5	7.5	7.5	11	11
Guideway form of work table			Rydro dynamic-state guideway	Rydro dynamic-state guideway	Rydro dynamic-state guideway	hydrostaic guideway	hydrostaic guideway
