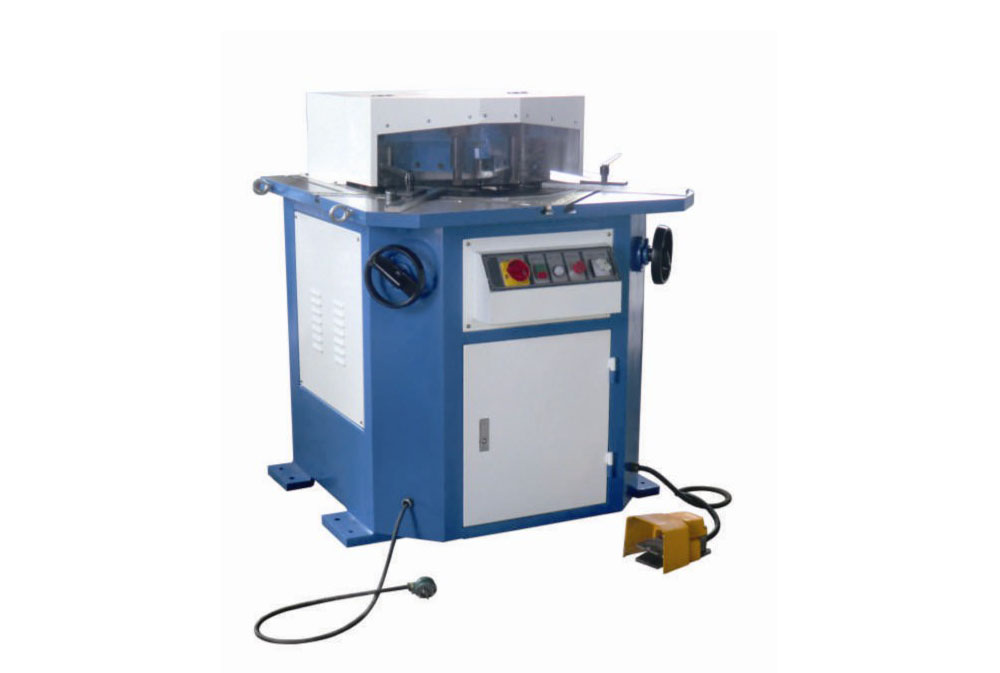

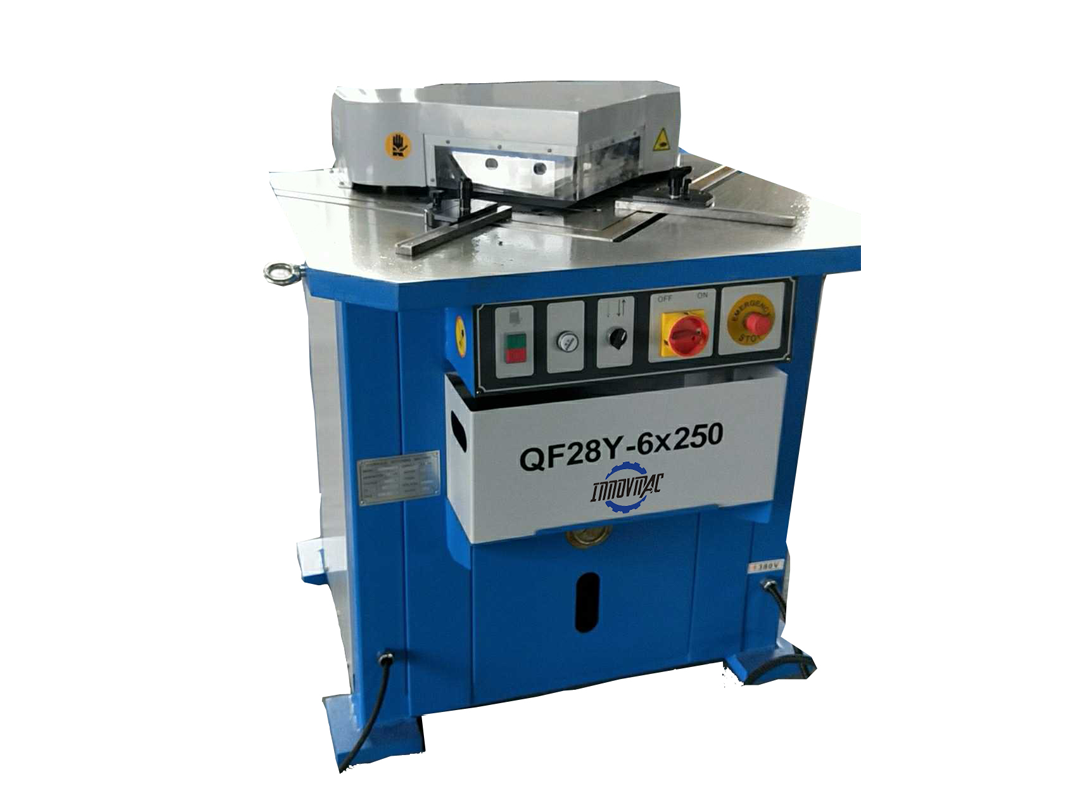

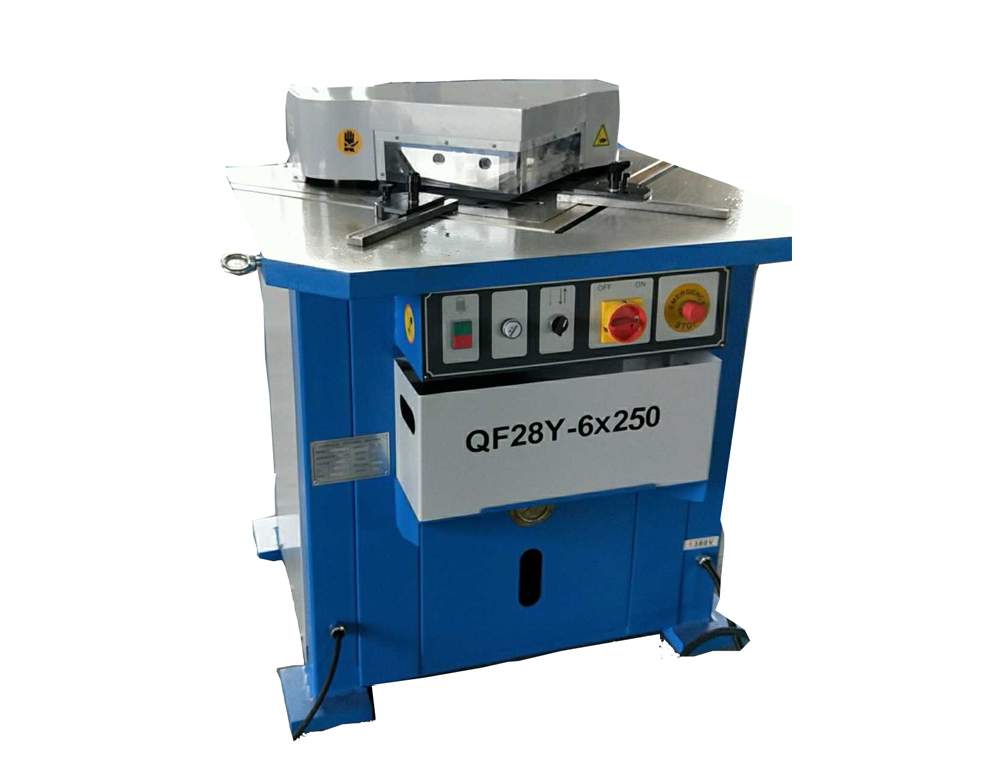

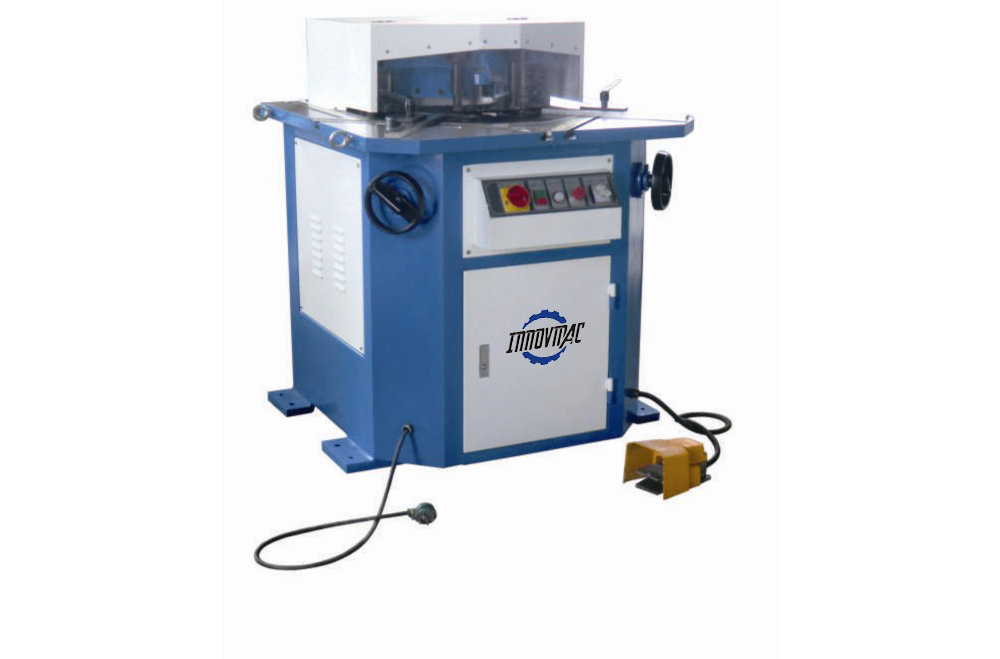

Hydraulic Notcher
This machine adopts hydraulic transmission, rack of steel plate welded structure, there is sufficient rigidity and strength. Available in 40 ° -130 ° angle freely adjust the angle, the right angle of the workpiece can be cut 200x4, suitable for all types of metal shear angle processing needs.
Model | Max Notching Thickness(mm) | Notching Angle(°) | Grooving/Punching | Worktable size(mm) | Worktable height(mm) | Main power(KW) | Net weight(KGS) | |
Mild Steel | Stainless Steel | |||||||
QX28Y-6X220ZK | 6 | 3 | 30°-140° | 20x150/≤40 | 950x1030 | 900 | 4-5.5 | 1060 |
QF28Y-6X200ZK | 6 | 3 | 90° | 60x100/≤35 | 1000x660 | 850 | 4 | 1000 |
Model | Notching Thickness(mm) | Notching Length(mm) | Notching Angle(°) | Main power(KW) | Dimension | Net weight(KGS) |
QX28Y-4X200 | 4-6 | 200 | 30-135 | 4-5.5 | 1050x1020x1320 | 900 |

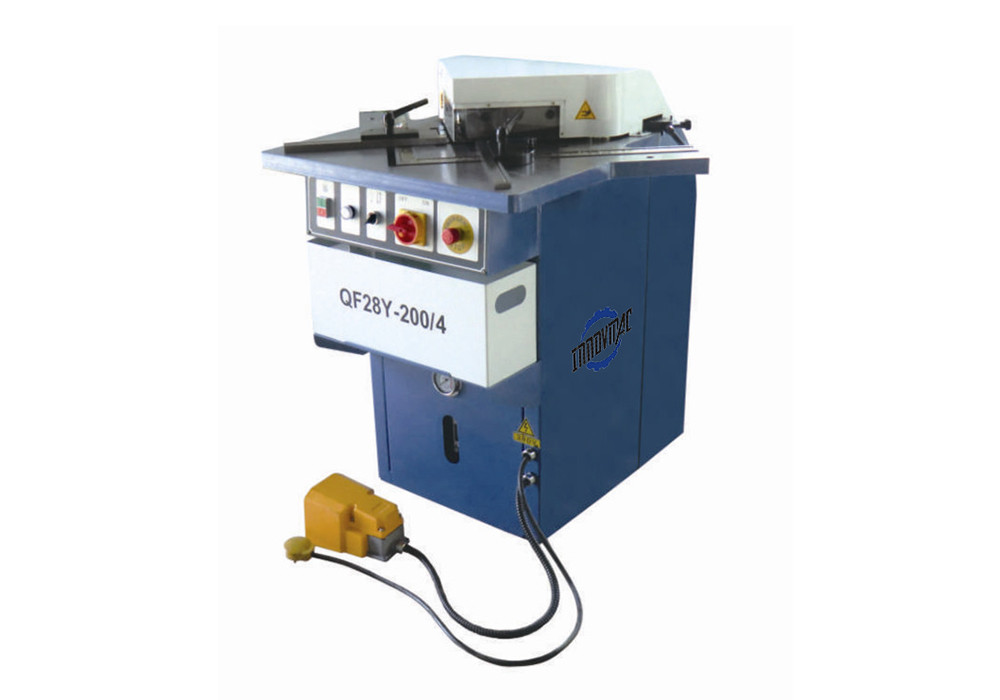

QF28Y-4X200 | 4-6 | 200 | 90 | 3-4 | 1000x1000x1200 | 520 |
