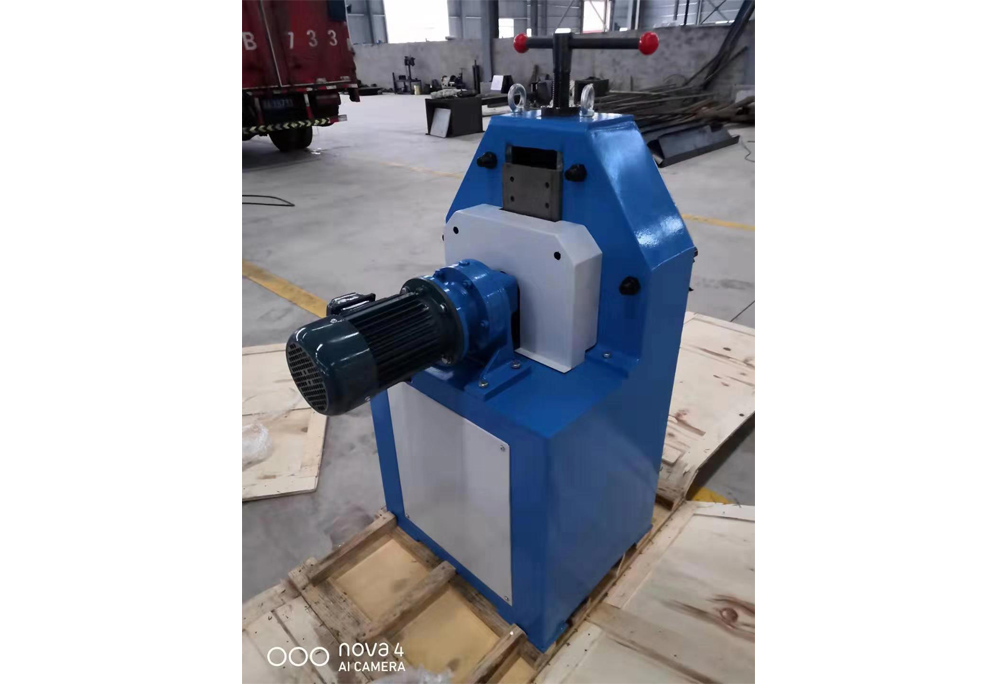

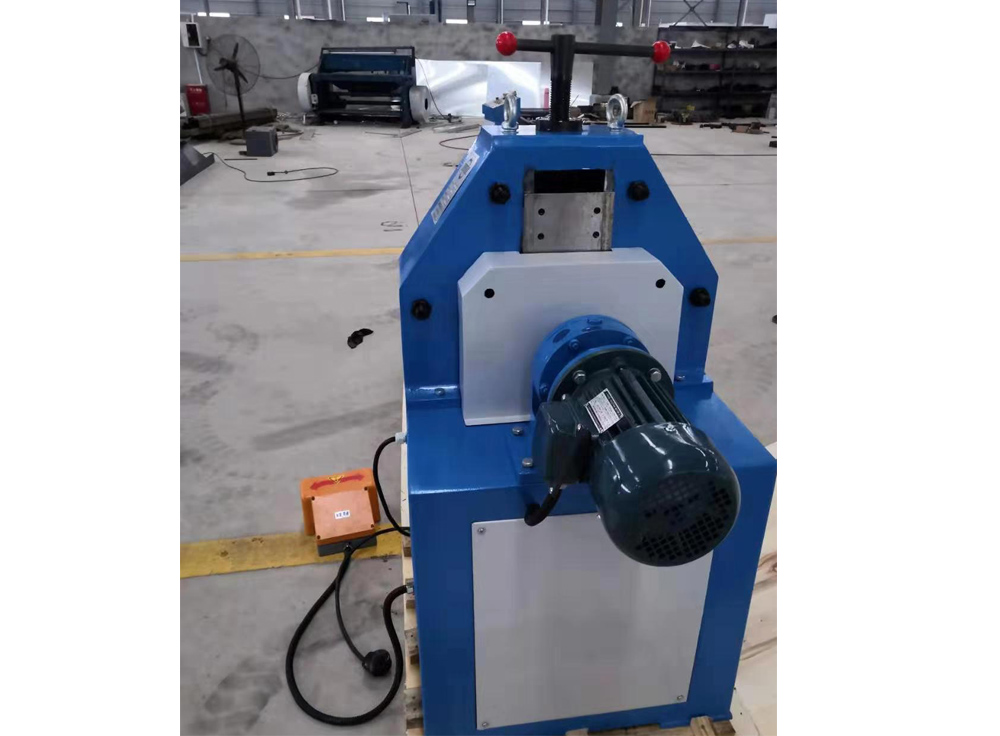

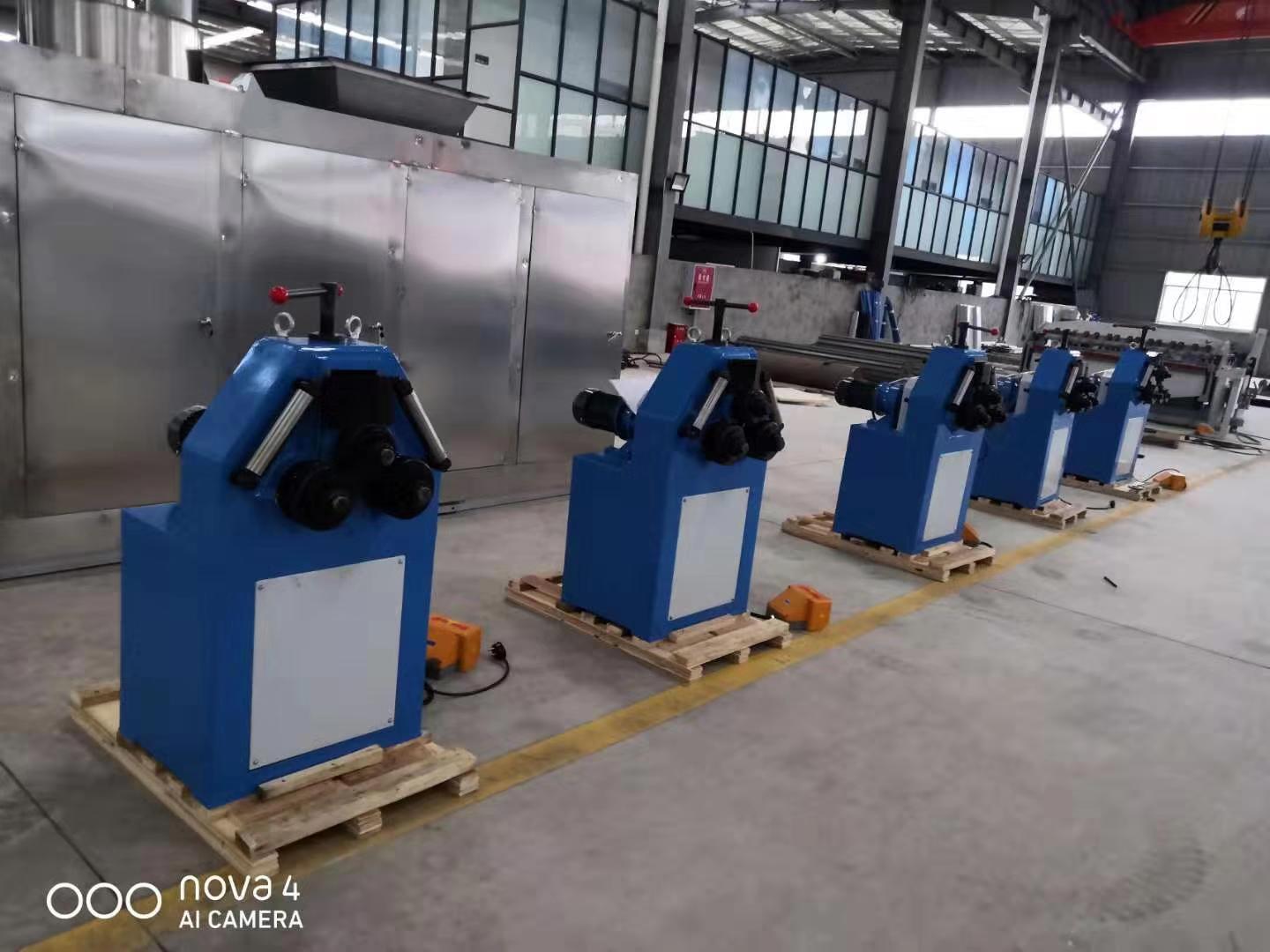

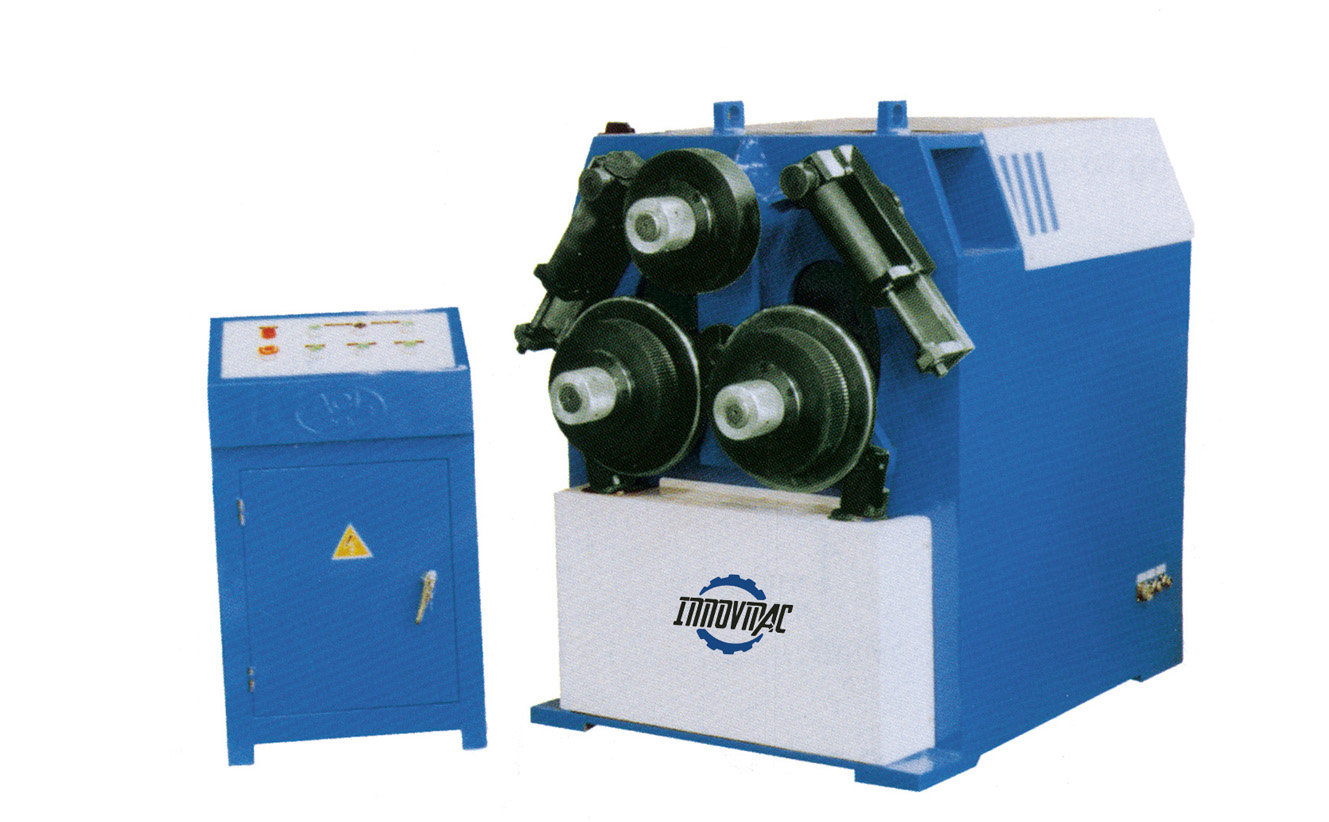

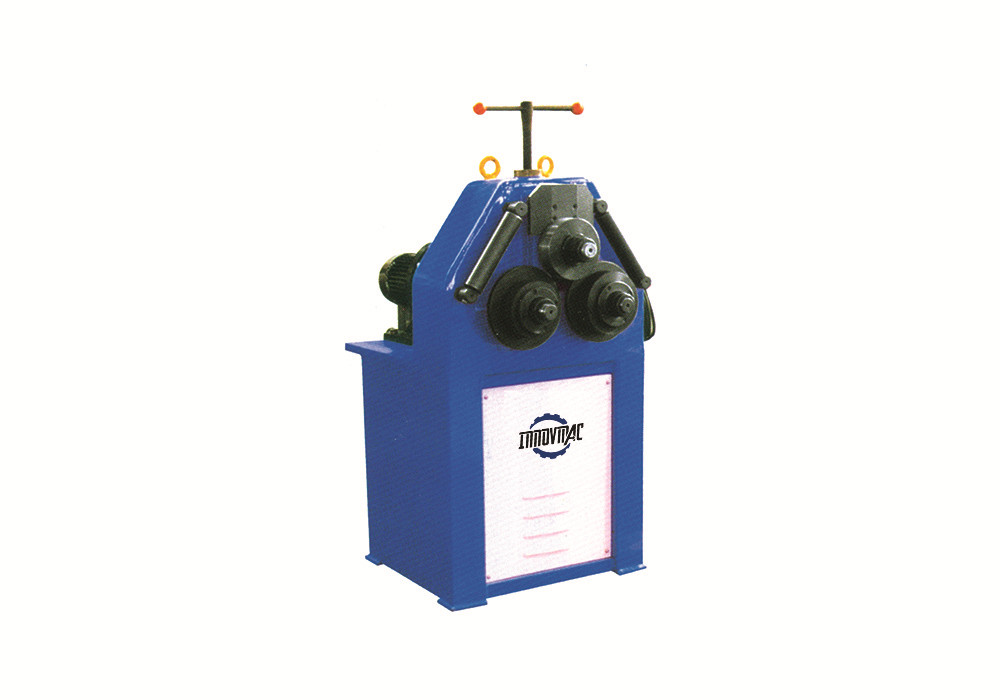

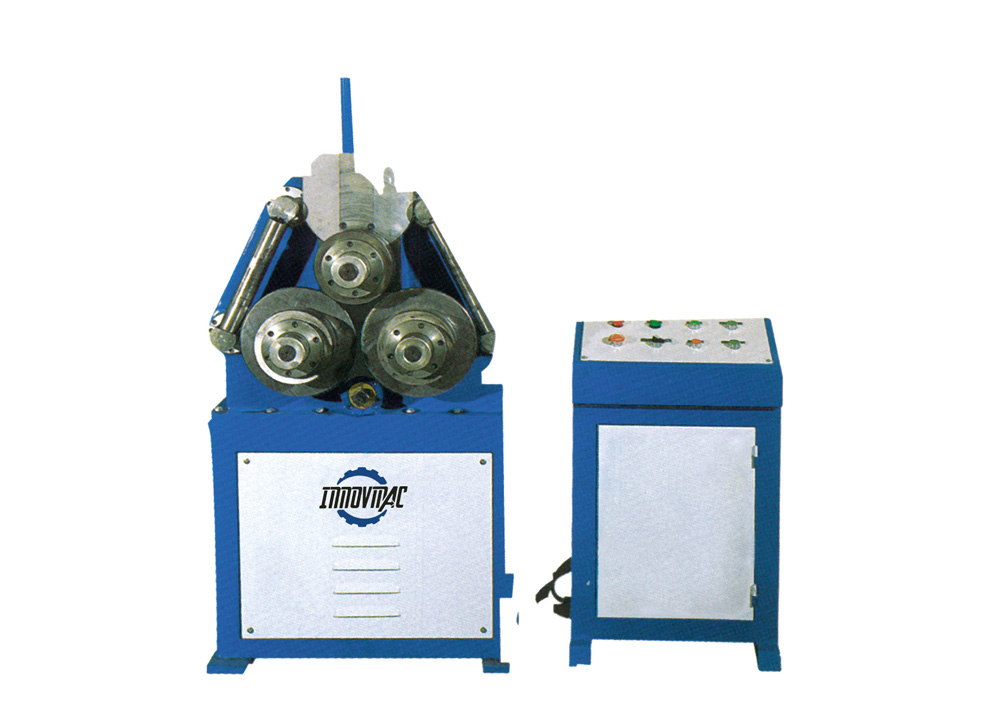

Hydraulic Section Bender
TOPMAC machinery company produces hydraulic angle iron angle iron rolling machine and rolling machine mechanic. Can be replaced according to the different needs of the roll, the roll angle iron, flat iron, pipe, channel, square pass and so on. Three rolls at work roll gap adjustable, hydraulic angle iron rolling machines with pre-bending function, material savings.
Model | Yield limit | Min beading dia | Capacity | Motor(kw) | Weight(kg) | Dimension(mm) |
W24-400 | ≤245 | 300-1200 | L40x4 | 1.5 | 350 | 1000x760x1380 |
W24Y-500 | ≤245 | 240-1800 | L50x5 | 2.2/2.2 | 800 | 1200x770x1500 |
W24Y-750 | ≤245 | 300-1350 | L75x7 | 4/3 | 1800 | 1300x920x1270 |
W24Y-1000 | ≤245 | 300-2150 | L100x10 | 4/3 | 2400 | 1650x920x1270 |
