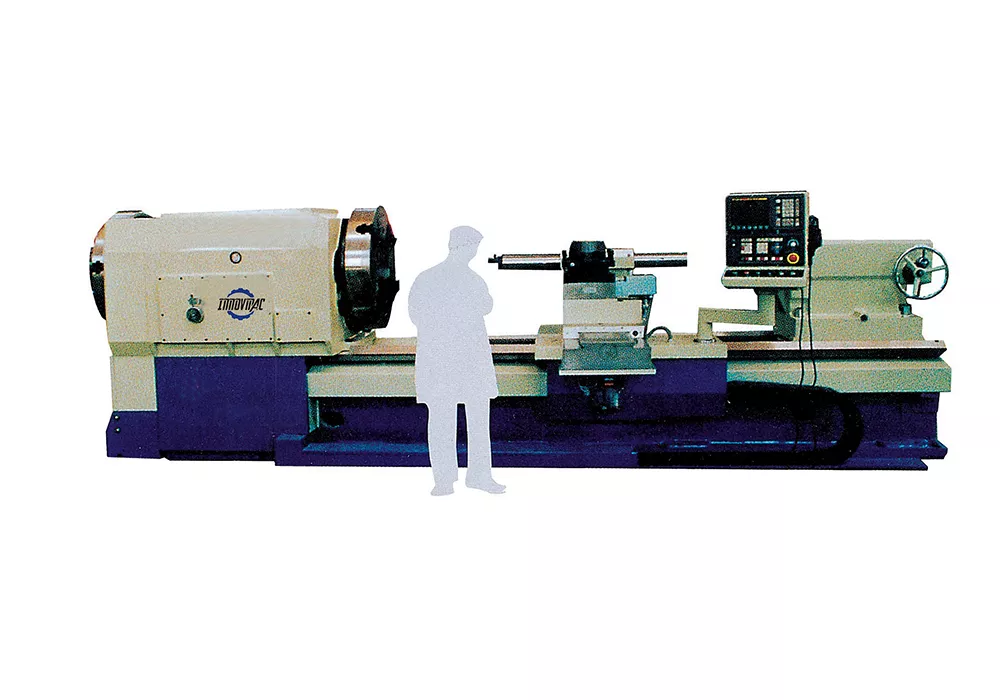

This machine is mainly suitable for turning pipe ends, taper pipe thread, pipe band, pipe sleeve, rod drilling and so on, It has characters of big power, good rigidity,high accuracy and excellent keep performance FANUC OR SIEMENS CNC system has been used, it is safe and reliable the reliability of the machine could be ensured, Pulse coder is as a measuring element, longitudinal and cross feed form semi-closed loop control.
Model |
CKW6636 |
CKW6663 | |
|
Max.swing over bed |
mm |
￠1000 |
￠1190 |
|
Max.swing cross slide |
mm |
￠640 |
￠880 |
|
External dimension of pipe turning |
mm |
￠60-￠340 |
￠200-￠600 |
|
Range of spindle speed |
r/mm |
￠25-￠400 |
|
|
Spindle bore |
mm |
￠360 |
￠630 |
|
Fron hole in spindle |
mm |
metric NO.570 |
|
|
Max.output torque of spindle |
N.m |
3000 |
12000 |
|
Cross efficient travel of turret |
MM |
610 |
650 |
|
Range of long and cross feed |
mm/min |
x=z 0.001-2000 |
|
|
Rapid traverse of longitudinal and cross feed |
mm/min |
X:3000 Z:1000 |
X:4000 Z:6000 |
|
Min.enactment unit of feed |
mm |
0.0001 |
|
|
Machining accuracy of machine |
IT7 Ra1.6 |
||
|
Dimension of tools |
mm |
32×32 |
40×40 |
