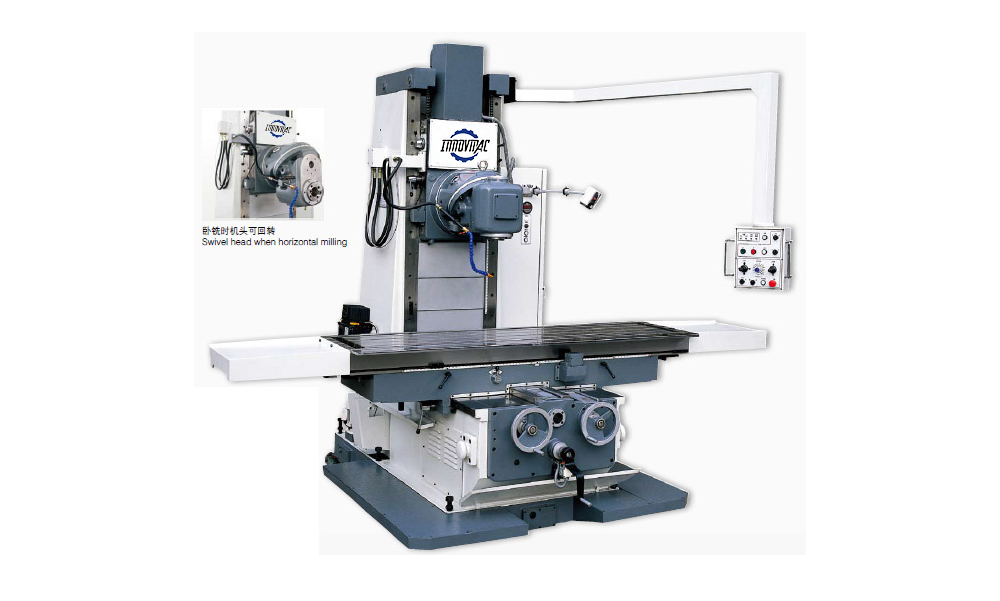

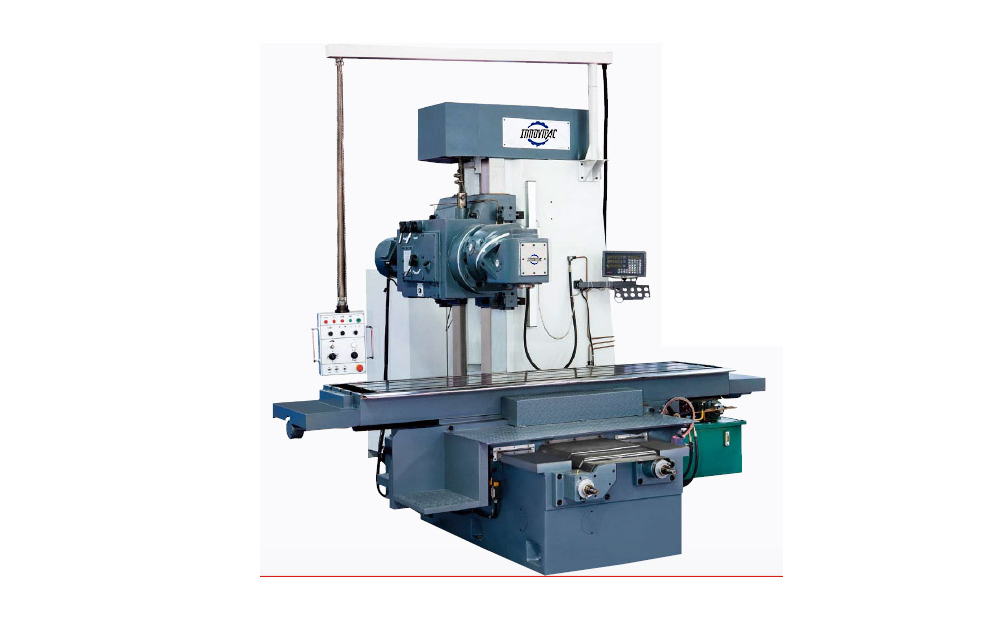

X715 X716 cooperate with Nambuk Co.,Ltd of South Korea in producing the machine
Advanced design large load and wide machining range.

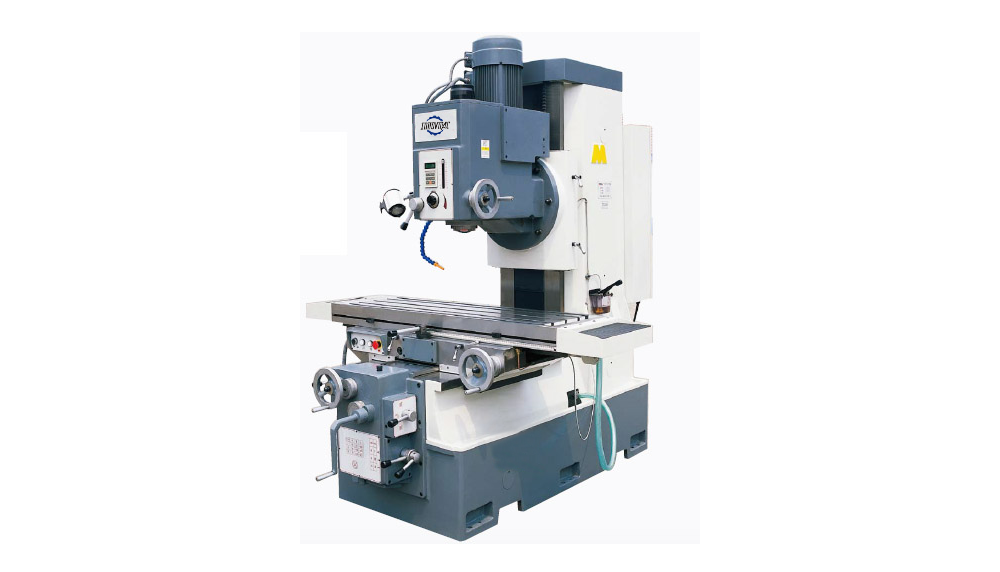

XA7140
MEEHANITE cast-iron construction
Rectangular guideways Y Z with high rigidity
Hardened and ground table surface
Headstock swivels ±30°
Infinitely variable speed
Model | Units | X713 | XA7140 | X715 | X716 |
Table size | mm | 1525×320 | 1400×400 | 2100×500 | 2500×575 |
Max. table travel | mm | 1050×470 | 800×400 | 1500×670 | 1800（2000）×600×900 |
Max load of table | kg | --- | 800 | 2000 | 3000 |
Number/Width/Distance of T-slot | mm | 3-14-80 | 3-18-100 | 4-20-100 | 3-22-152 |
Distance between spindle nose and table surface | mm | 70-570 | 150-650 | --- | --- |
Distance from spindle axis to column guideway | mm | 450 | 520 | 610 | 110 |
Spindle taper | ISO40 | ISO50 | --- | ISO50 | |
Spindle quill travel | mm | 127 | 105 | --- | --- |
Spindle speed range | rpm | 70-3620 | 18-1800 | 35-1345 12steps | 40-1200 |
Feed speed | mm/min | --- | --- | 20-1800 | 12-1320 |
Rapid feed speed(X.Y)/Z | mm/min | --- | --- | 3500 | 3000/1800 |
Spindle motor power | HP | 5 | 7.5 kw | 7.5 kw | 11kw |
Overall dimension | mm | 2565×2045×2290 | 2290×1840×2120 | 3300×2380×2750 | 4300×3200×3300 |
Machine weight | kg | 2300 | 3860 | 7300 | 10000 |
