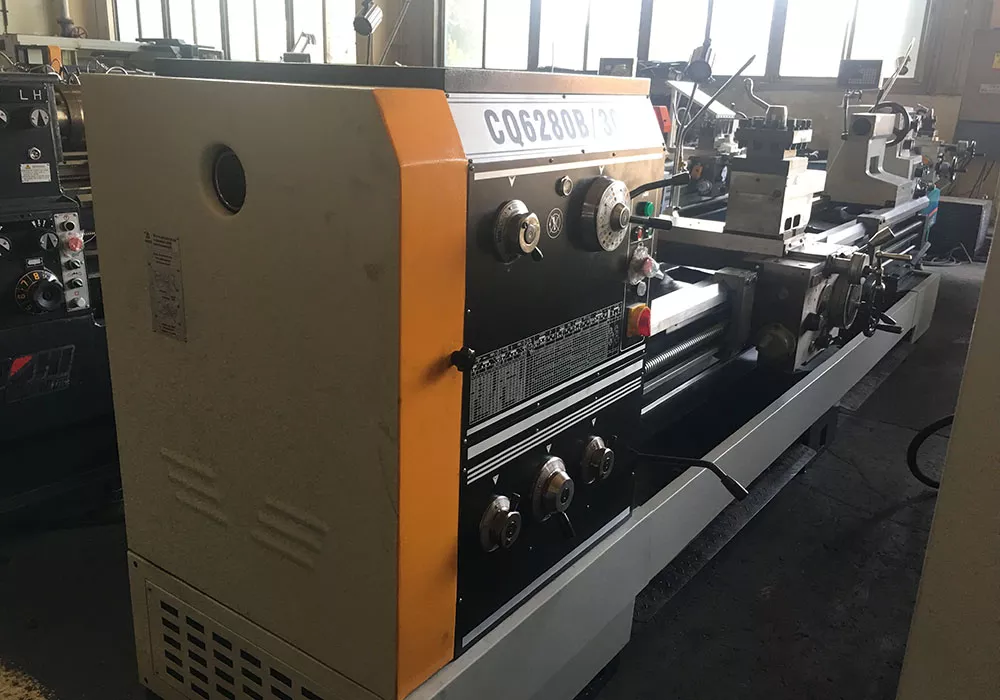

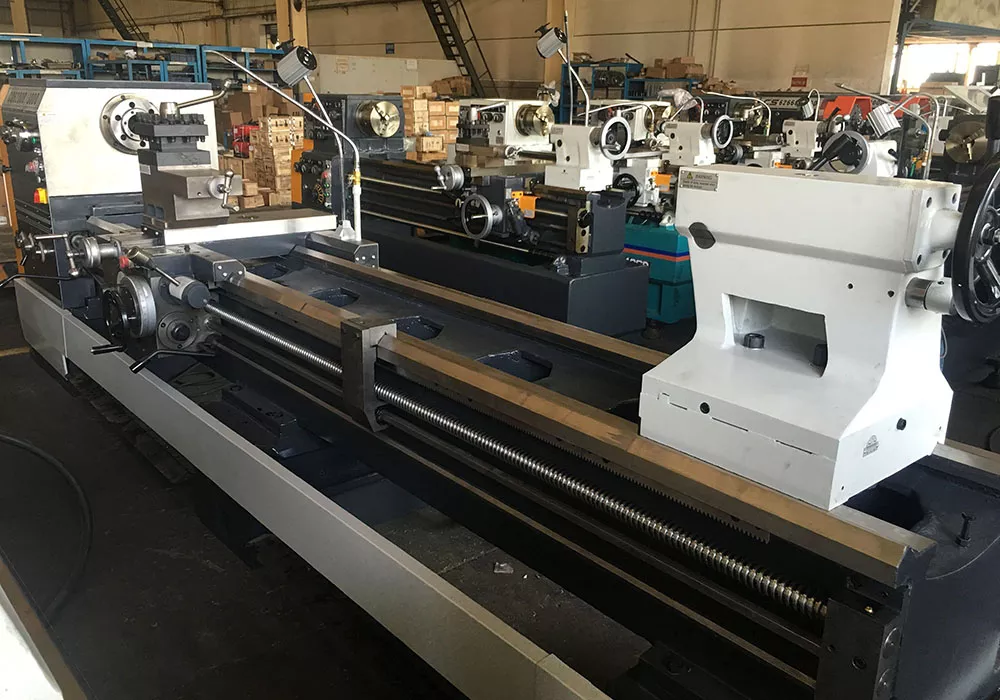

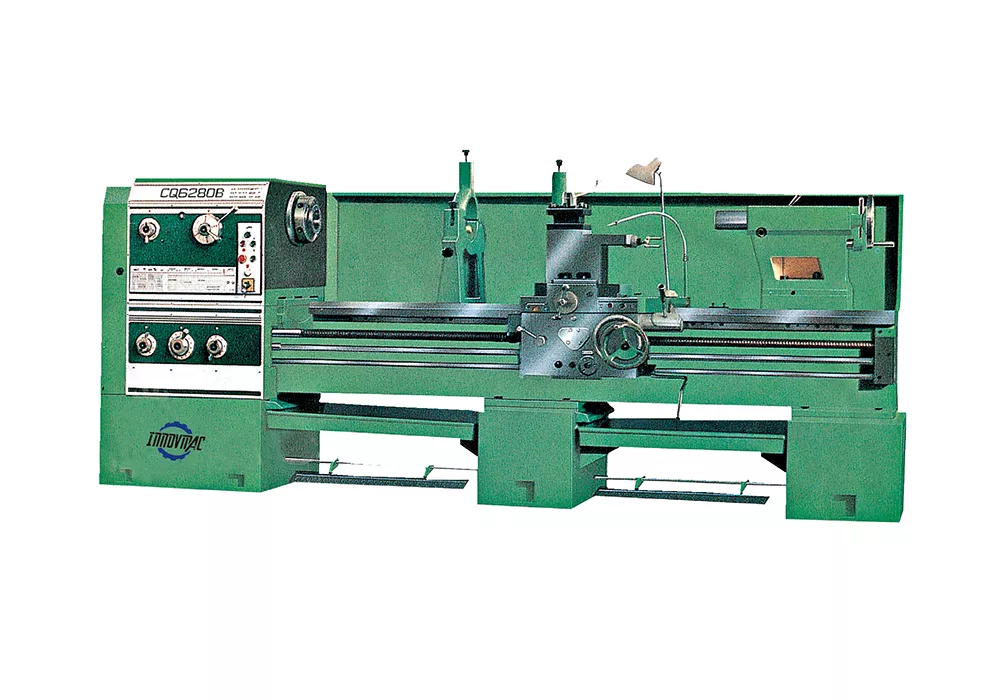

—Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
—Threading Inch, Metric, Module and D.P.;
—Perform drilling, boring and groove broaching;
—Machine all kinds of flat stocks and those in irregular shapes;
—Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
—Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
—There are hand brake and foot brake for users to choose;
—These series lathes operate on power supply of different voltages (220V、380V、420V) and different frequencies (50Hz、60Hz).
Standard accessories:
3-jaw chuck and adaptor
4-jaw chuck and adaptor
Face plate
Drive plate
Footbrake
Chip guard
Work light
Coolant system
Optional accessories:
Steady rest
Follow rest
Thread chasing dial
Taper turning attachment
Live center
Chuck cover
Leadscrew cover
Tool post cover
European type quick change toolpost
American type quick change toolpost
Leadscrew cover
SINO 2 axis DRO
SINO 3 axis DRO
Ps:distance between two centers above 1500mm the standard accessories including follow rest and steady rest.
Model |
Unit |
CS6240 |
CS6250/B |
CS6266/B |
CQ6280B |
CS6250C |
CS6266C |
CQ6280C | |
|
Capacity |
Max swing over bed |
mm |
φ400 |
φ500 |
φ660 |
φ800 |
φ500 |
φ660 |
φ800 |
|
Max swing in gap |
mm |
φ630 |
φ710 |
φ870 |
φ1000 |
φ710 |
φ870 |
φ1000 |
|
|
Effective length in gap |
mm |
240 |
|||||||
|
Max swing over slide |
mm |
φ220 |
φ300 |
φ420 |
φ560 |
φ300 |
φ420 |
φ560 |
|
|
Max workpiece length |
mm |
750/1000/1500/2000/3000 |
1000/1500/2000/3000 |
2000/3000 |
1000/1500/2000/3000 |
2000/3000 |
|||
|
Spindle |
Spindle thru-hole |
mm |
φ52 |
φ82 |
φ82 |
φ105 |
|||
|
Spindle nose |
CS6140:ISO 702/Ⅲ No.6 bayonet type; Others: ISO 702/Ⅱ No.8 cam-lock type |
||||||||
|
Spindle speed |
r/min |
24 step 9-1600 |
24 steps |
12 steps |
|
||||
|
Spindle motor |
kW |
7.5 |
|||||||
|
Tailstock |
Quill dia./travel |
mm |
φ75/150 |
φ90/150 |
φ75/150 |
φ90/150 |
|||
|
Taper of center |
MT |
5 |
|||||||
|
Tool post |
No of station |
4/25X25 |
|||||||
|
Feed |
Max X-axis travel |
mm |
145 |
||||||
|
Max Z-axis travel |
m/min |
320 |
310 |
320 |
|||||
|
X-axis feed |
mm/r |
93 sorts 0.028-6.43 |
65 sorts 0.063-2.52 |
||||||
|
Z-axis feed Z-axis feed |
mm/r |
93 sorts 0.012-2.73 |
65 sorts 0.027-1.07 |
||||||
|
Metric thread |
mm |
48 sorts 0.5-224 |
22 sorts 1-14 |
||||||
|
Inch thread |
t.p.i |
48 sorts 72-1/4 |
25 sorts 28-2 |
||||||
|
Module thread |
πmm |
42 sorts 0.5-112 |
18 sorts 0.5-7 |
||||||
|
DP thread |
t.p.i.π |
42 sorts 56-1/4 |
24 sorts 56-4 |
||||||
|
Others |
Coolant pump motor |
kW |
0.06 |
||||||
|
Machine length |
mm |
2382/2632/3132/3632/4632 |
2632/3132/3632/4632 |
3365/4365 |
2632/3132/3632/4632 |
3365/4365 |
|||
|
Machine width |
mm |
975 |
1050 |
1340 |
975 |
1340 |
|||
|
Machine height |
mm |
1230 |
1350 |
1490 |
1270 |
1450 |
1490 |
||
|
Machine weight |
kg |
1795/2050/2250 |
2050/2100/2300/2500/2900 |
2400/2600/2800/3000 |
3300/3700 |
2100/23 | |||
