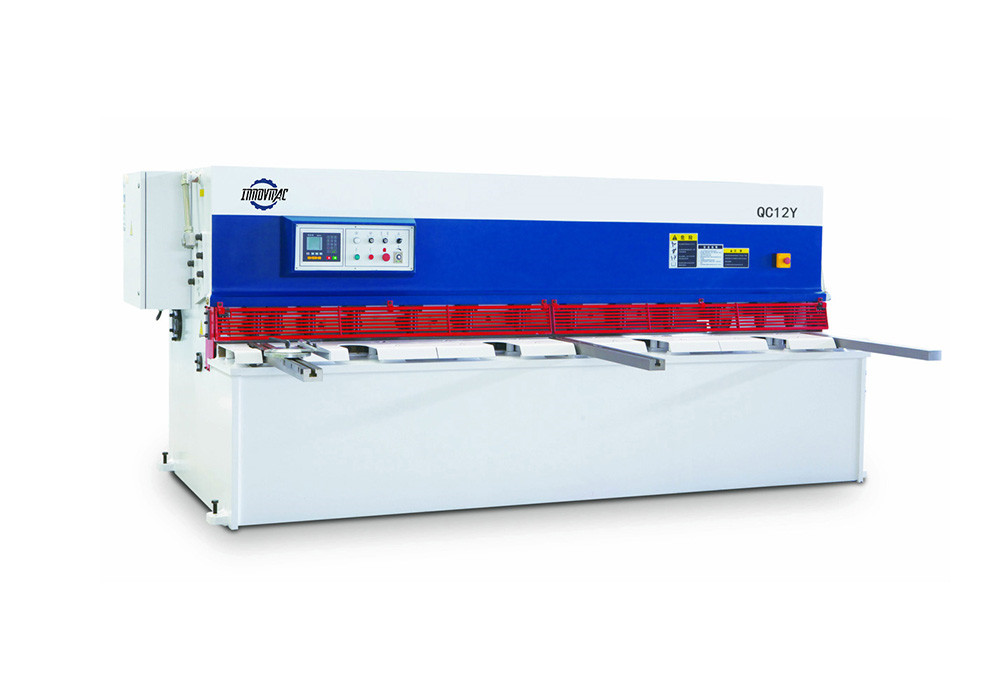

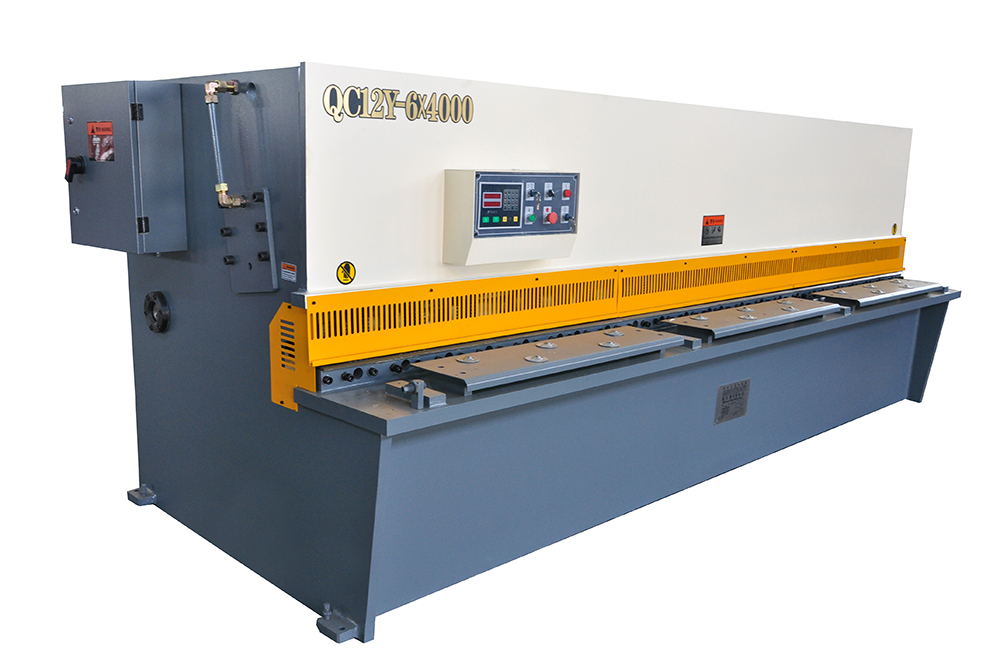

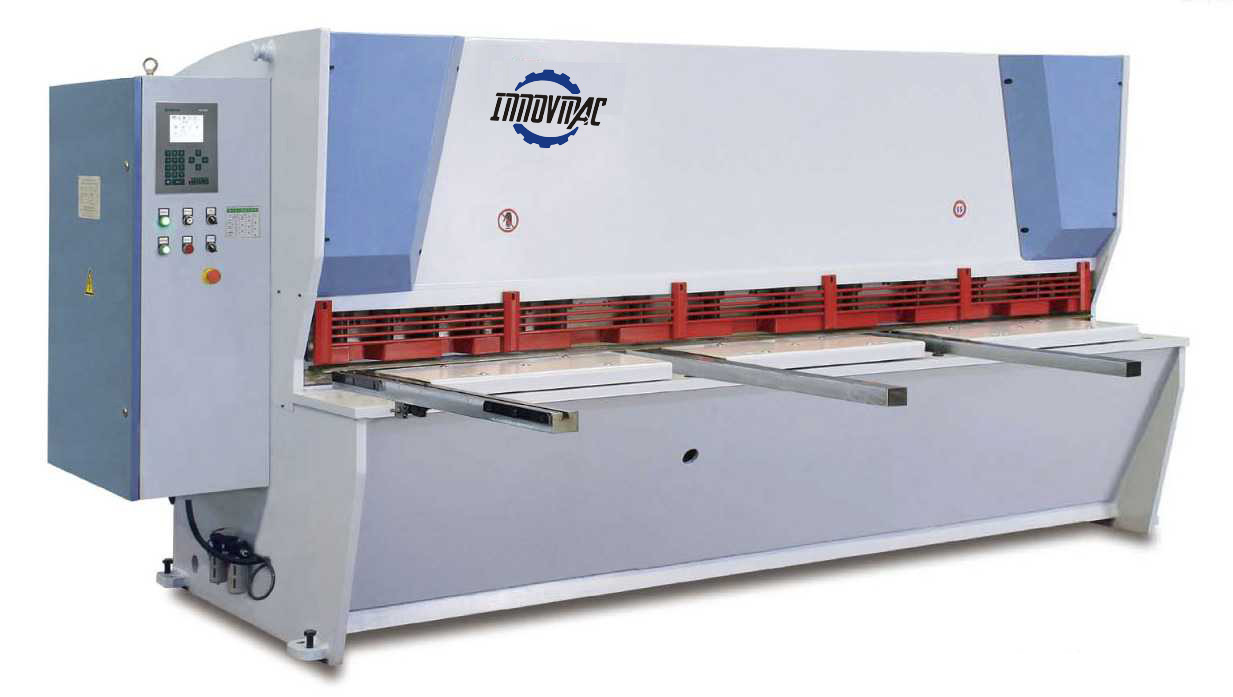

Hydraulic Swing Shearing Machine_Metal Forming Machine

Shearing Machine

Home > Products > Metal Forming Machine > Shearing Machine

FEATURES
PARAMETER

1.Total steel-welded structure and stress elimination by vibration,hydraulic drive and accumulator return stroke,reliable performance

2.NC system and position coder form a closed ring control system,characterized by high accuracy and good stability,it is capable of ensuring the accuracy of the back-gauge displacement.

3.Safe fence and the electric inter-locker have been designed for the machine to ensure the operation safety.

Model	shearing thickness(mm)	shearing width (mm)	shearing angle (°)	Number of stroke(min-1)	Backgauge range(mm)	Motor power (kw)
QC12Y-4x2500	4	2500	1°30'	20	20-500	5.5
QC12Y-4x3200	4	3200	1°30'	18	20-500	5.5
QC12Y-4x4000	4	4000	1°30'	12	20-500	5.5
QC12Y-4x6000	4	6000	1°30'	7	20-600	7.5
QC12Y-6x2500	6	2500	1°30'	18	20-600	7.5
QC12Y-6x3200	6	3200	1°30'	16	20-600	7.5
QC12Y-6x4000	6	4000	1°30'	10	20-600	7.5
QC12Y-6x6000	6	6000	1°30'	7	20-800	11
QC12Y-8x2500	8	2500	1°30'	14	20-600	7.5
QC12Y-8x3200	8	3200	1°30'	10	20-600	11
QC12Y-8x4000	8	4000	1°30'	8	20-600	11
QC12Y-8x6000	8	6000	1°30'	6	20-800	15
QC12Y-10x2500	10	2500	1°30'	12	20-600	11
QC12Y-10x3200	10	3200	1°30'	10	20-600	11
QC12Y-10x4000	10	4000	1°30'	8	20-600	15
QC12Y-12x2500	12	2500	2°	10	20-600	18.5
QC12Y-12x3200	12	3200	2°	9	20-600	18.5
QC12Y-12x4000	12	4000	2°	8	20-600	18.5
QC12Y-12x6000	12	6000	2°	4	20-800	22
QC12Y-16x2500	16	2500	2°	9	20-600	18.5
QC12Y-16x3200	16	3200	2°	8	20-600	18.5
QC12Y-16x4000	16	4000	2°	7	20-600	18.5
QC12Y-16x6000	16	6000	2°	4	20-800	22
QC12Y-20x2500	20	2500	2°30’	5	20-800	22
QC12Y-20x3200	20	3200	2°30’	4	20-800	22
QC12Y-20x4000	20	4000	2°30’	4	20-800	22
QC12Y-25x2500	25	2500	3°	5	20-800	30
QC12Y-25x3200	25	3200	3°	4	20-800	30
