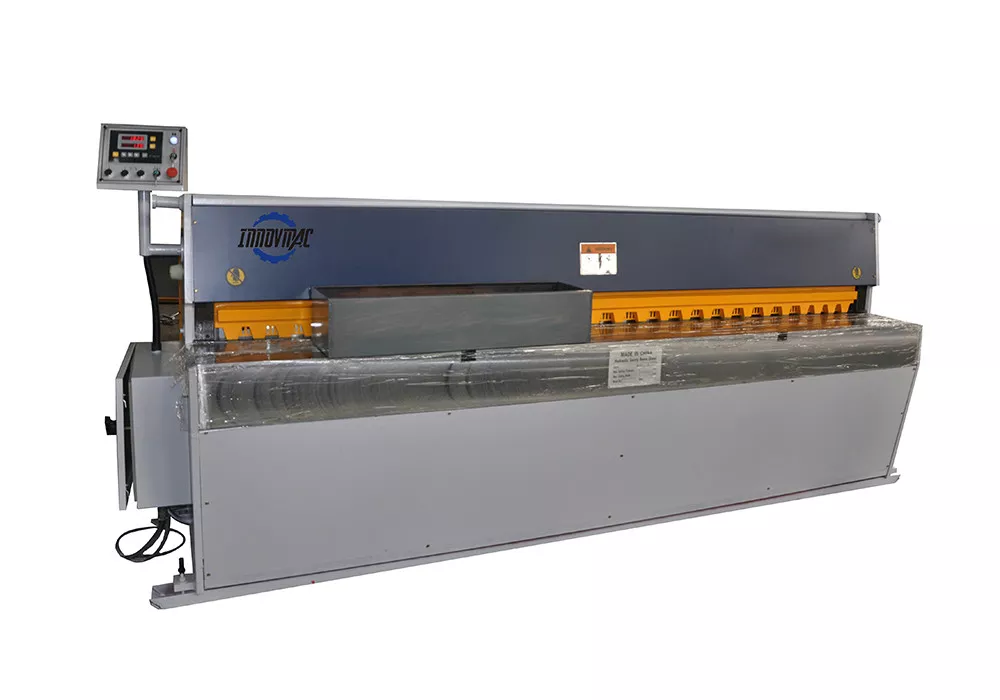

This machine is different from the traditional driving method of mechanical shearers,it`s one of the most advanced mechanical shearers.A brake motor driving through a shaft-mounted speed reduction unit and controlled by a detector switch for single or continous stroke provides quiet instantaneous engagement.The low cutting angle and inclined shearing direction reduces bowing and twist to a minimum,Blade clearance is easily set by a manually operated”quick set”device,it is an ideal true cut machining equipment of sheet metal and nonferrous sheet metal.
Model |
Shear thickness(mm) |
Shear width(mm) |
Shear angle |
Number of stroke(min-1) |
Backgauge range(mm) |
Motor power(kw) |
Overall dimensions(mm) |
|
QH11D-3.2X1250 |
3.2 |
1250 |
1°20" |
47 |
500 |
5.5 |
1860x2210x1480 |
|
QH11D-3.2X2000 |
3.2 |
2000 |
1°20" |
47 |
600 |
5.5 |
2620x2210x1480 |
|
QH11D-2.5X2500 |
2.5 |
2500 |
1°30" |
40 |
600 |
5.5 |
3120x2210x1480 |
|
QH11D-3.2X2500 |
3.2 |
2500 |
1°30" |
40 |
600 |
7.5 |
3120x2210x1580 |
|
QH11D-3.5X3050 |
3.5 |
3050 |
1°30" |
35 |
600 |
11 |
3660x2420x1580 |
