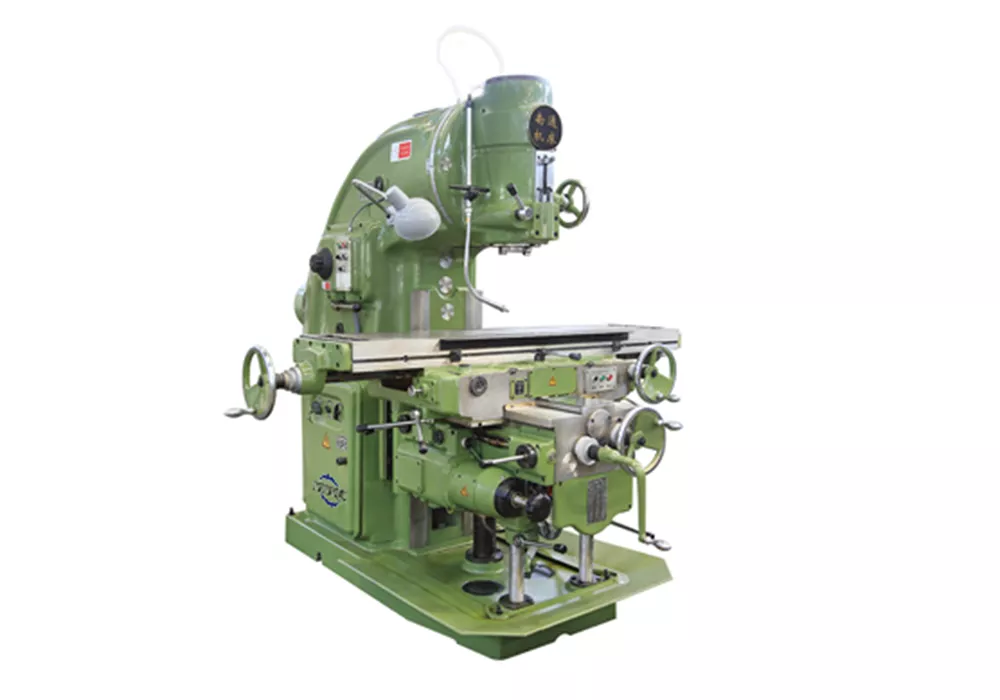

Model:X5042 is an all-purpose milling machine. Its is suited for
machining various parts with face milling cutters,cylindrical
cutters,metal slotting saws,end mills etc.Working table and slide ways
adopted puality cast hardened ensure high accuracy.
It can be equipped with digital display device.
Model:X5042A adopts ball screws in three travels(X.Y.Z)
Model |
Unit |
X53K(X5040) |
|
Worktable size |
mm |
400×1700 |
|
Longitudinal travel(manual/power)X |
mm |
900/880 |
|
Cross travel(manual/power)Y |
mm |
315/300 |
|
Vertical travel(manual/power)Z |
mm |
385/365 |
|
T-slot(Number/Width/Distance) |
mm |
3×18x90 |
|
Spindle taper |
7:24 |
|
|
Spindle bore diameter |
mm |
29 |
|
Quill travel |
mm |
85 |
|
Spindle speed range |
rpm |
30-1500 |
|
Main motor power |
kw |
11 |
|
Coolant pump motor |
kw |
0.125 |
|
Feed motor |
kw |
3 |
|
Overall size |
mm |
2556×2159×2258 |
|
Net weight |
kg |
4250 |
