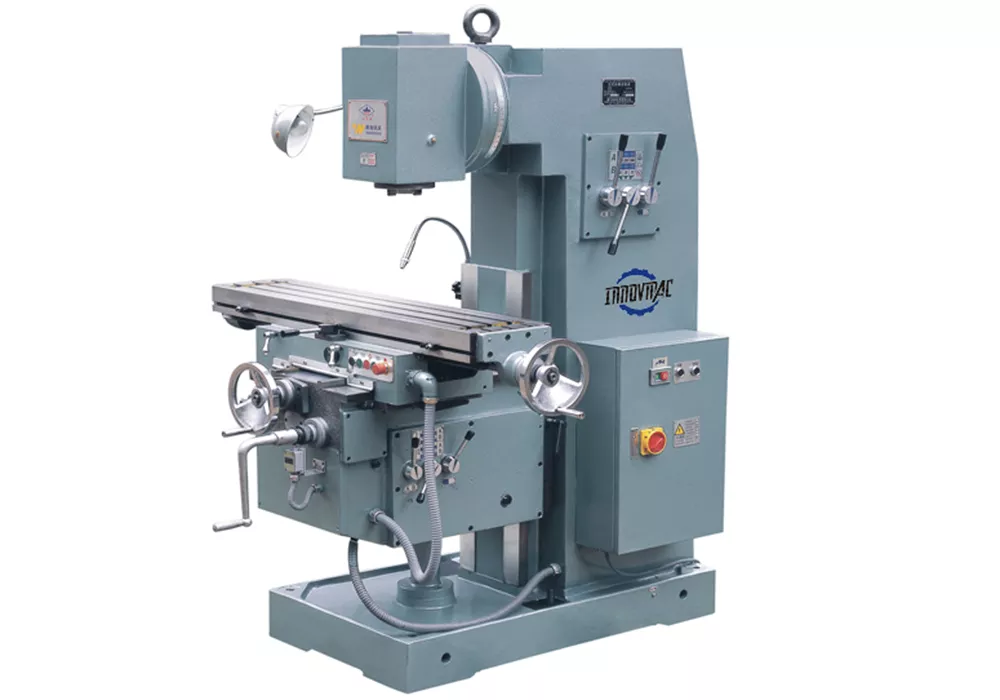

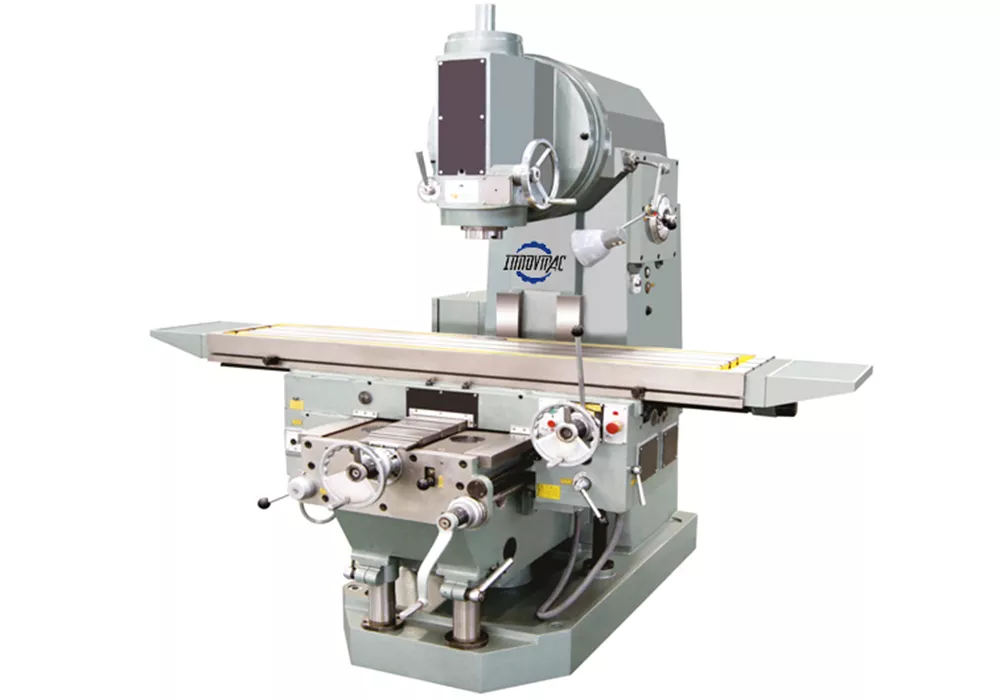

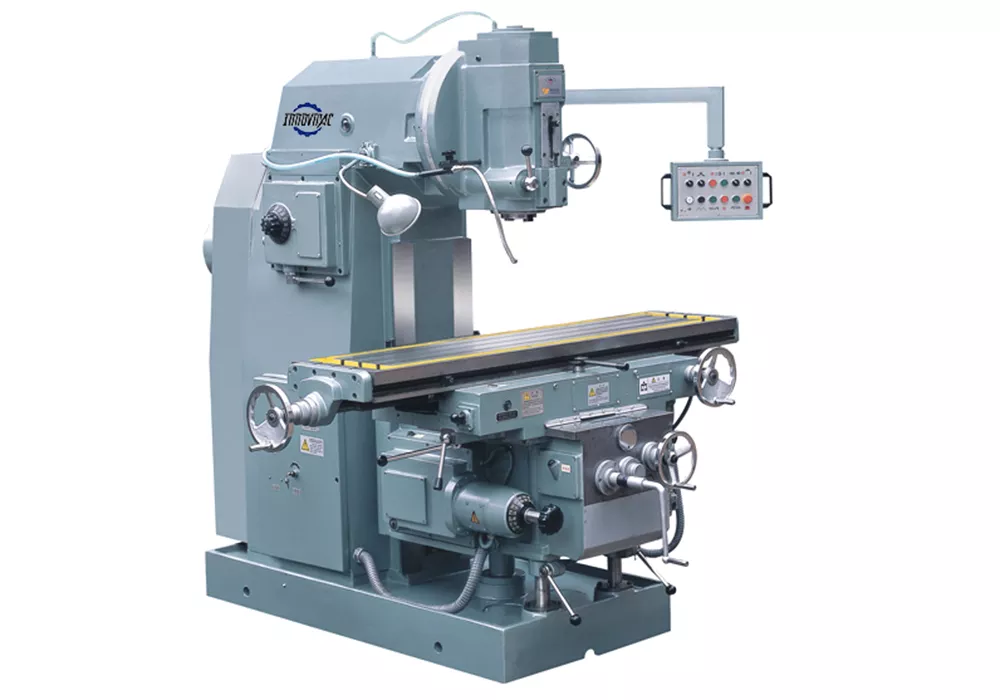

Worktable size

mm

250x1100

300x1250

320x1320

360x1600

420x1800

428x2000

T slots(NxWxD)

mm

3x14x63

3x14x63

3x18x80

3x18x80

3x18x90

3x18x100

Max laod bearing of worktable

kg

250

250

500

500

800

800

Longitudinal travel(manual/power)X

mm

720

800

800/780

1020/1000

1200/1180

1250/1230

Cross travel(manual/power)Y

mm

270

265

300/280

300/280

360/350

420/410

Vertical travel(manual/power)Z

mm

410

410

410/400

410/400

470/450

480/470

Max rotary angle of vertical milling head

mm

±45°

±45°

±45°

±45°

±45°

±45°

Arbor diameter

mm

22,27

22,27

32,40

32,40

32,50

40

Distance from spindle center to vertical guide way

mm

290

290

380

380

450

450

Distance from worktable center to vertical guide way

mm

160-430

152-417

235-535

235-535

275-655

365-785

Distance from spindle nose to worktable surface

mm

60-470

60-470

60-460

60-460

40-510

40-520

Spindle hole taper

7:24 No:40

7:24 No:40

7:24 No:50

7:24 No:50

7:24 No:50

7:24 No:50

Spindle quill travel

mm

/

70

75

75

85

90

Spinlde speed steps

steps

12

12

18

18

18

20

Spindle speed range

r/min

35-1600

35-1600

30-1500

30-1500

30-1500

18-1400

Feed speed steps

steps

12

12

18

18

18

15

Feed speed range:

Longitudinal X

mm/min

12-560

15-800

15-750

15-750

22-1100

10-1250

Cross Y

mm/min

12-560

15-800

15-750

15-750

22-1100

10-1250

Vertical Z

mm/min

5-226

6-270

5.7-280

5.7-280

8.3-410

2.5-315

Rapid feed speed range:

Longitudinal X

mm/min

1780

2100

2250

2250

2400

3200

Cross Y

mm/min

1780

2100

2250

2250

2400

3200

Vertical Z

mm/min

720

880

844

844

900

800

Main motor power

KW

4

4

7.5

7.5

11

11

Feed motor power

KW

0.75

0.75

1.5

1.5

3

3

Machine dimension

mm

1670x1350x1800

1750x1500x1800

2307x1707x2096

2307x2067x2096

2522x2265x2432

2610x2345x2460

Package dimension

mm

1660x1570x2180

1660x1570x2180

2200x1770x2270

2200x1770x2270

2450x2280x2460

2435x2300x2560

Machine weight

kg

1800

1800

3200

3200

4450

5650
