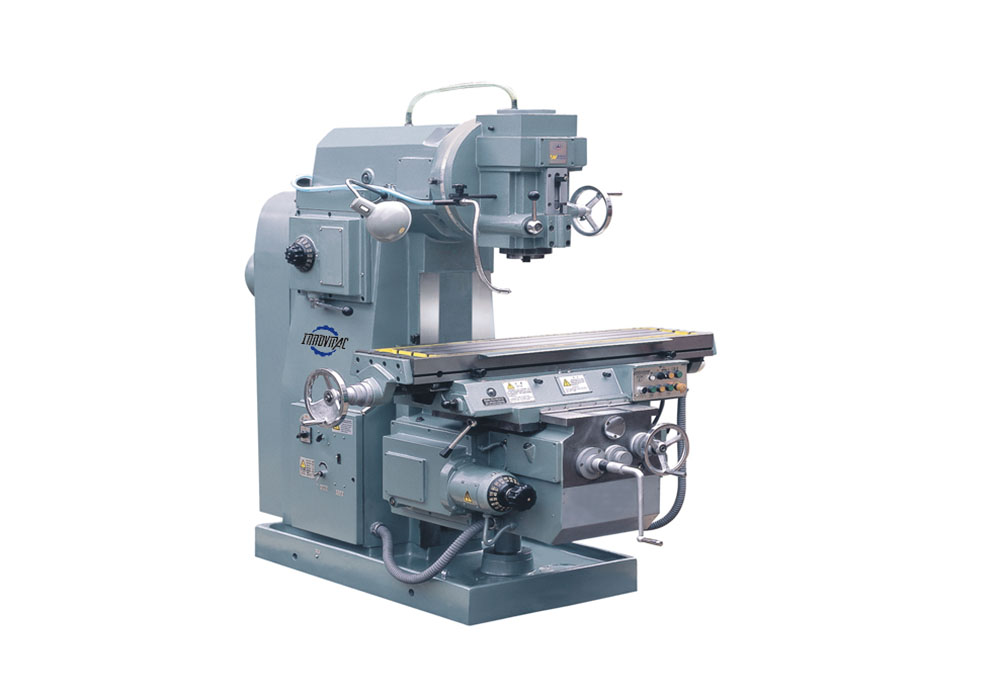

Model X5032A vertical knee-type milling machine is suit for milling flat,inclined face,angle surface,slots by employing discutters,angular cutters,formed cutters and face metal milling cutters.when mounted with the index,the machine will be able to perform milling operations in gears,cutter,helix groove,cam and tub wheel.
Vertical milling head can be swiveled by 45 degree.spindle quill can be moved in vertical.The longitudinal cross and vertical movements of the table can both be operated by hand and power,and it can be rapid moved.Working table and slide ways adopted quality cast hardened ensure high accuracy.

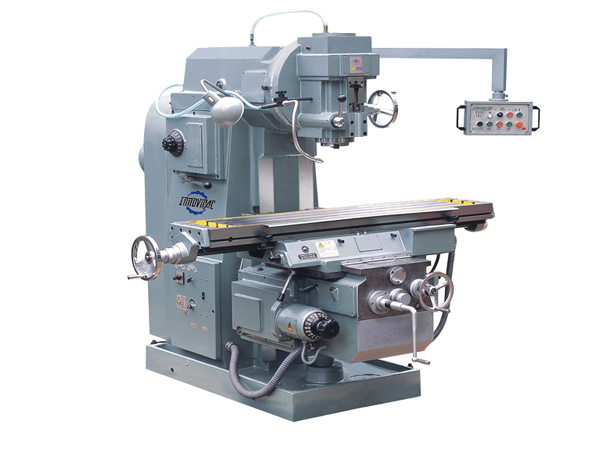

Model X5032x16 vertical knee-type milling machine,has extra travel in longitudinal,operating control adopts a cantilever panel.it is suit for milling flat,inclined face,angle surface,slots by employing disc cutters,angular cutters.when mounted with the index.the machine will be able to perform milling operations in gears,cutter,helix groove,cam and tub wheel.
Vertical milling head can be swiveled by 45 degree.spindle quill can be moved in vertical.the longitudinal cross and vertical movements of the table can both be operated by hand and power,and it can be rapid moved.working table and slide ways adopted quality cast hardened ensure high accuracy.
Model | Unit | X5032A | X5032Ax16 | |
Table size | mm | 320x1320 | 320x1600 | |
T slots(NxWxD) | mm | 3x18x80 | 3x18x80 | |
Table load-bearing | kg | 550 | 550 | |
Longitudinal travel(manual/power)X | mm | 800/780 | 1020/1000 | |
Cross travel(manual/power)Y | mm | 300/280 | 300/280 | |
Vertical travel(manual/power)Z | mm | 410/400 | 410/400 | |
Feed speed steps | 18 steps | 18 steps | ||
Feed speed ranges | Longitudinal X | mm/min | 15-750 | 15-750 |
Cross Y | mm/min | 15-750 | 15-750 | |
Vertical Z | mm/min | 5.7-280 | 5.7-280 | |
Rapid feed ranges | Longitudinal X | mm/min | 2250 | 2250 |
Cross Y | mm/min | 2250 | 2250 | |
Vertical Z | mm/min | 844 | 844 | |
Max rotary angle of vertical milling head | ±45° | ±45° | ||
Quill travel | mm | 75 | 75 | |
Distance from spindle center to column | mm | 380 | 380 | |
Min distance from spindle nose to table | mm | 60-470 | 60-470 | |
Distance between table center to vertical guide way | mm | 235-535 | 235-535 | |
Spindle hole taper | mm | 7:24 No:50 | 7:24 No:50 | |
Diameter of spindle hole | mm | φ29 | φ29 | |
Arbor diameter | mm | φ32 φ40 | φ32 φ40 | |
Spindle speed steps | 18 steps | 18 steps | ||
Spindle speed ranges | r/min | 30-1500 | 30-1500 | |
Main motor power | kw | 7.5 | 7.5 | |
Feed motor power | kw | 1.5 | 1.5 | |
Cooling pump power | kw | 0.12 | 0.12 | |
Packing size | mm | 2250x1790x2320 | 2240x2180x2320 | |
