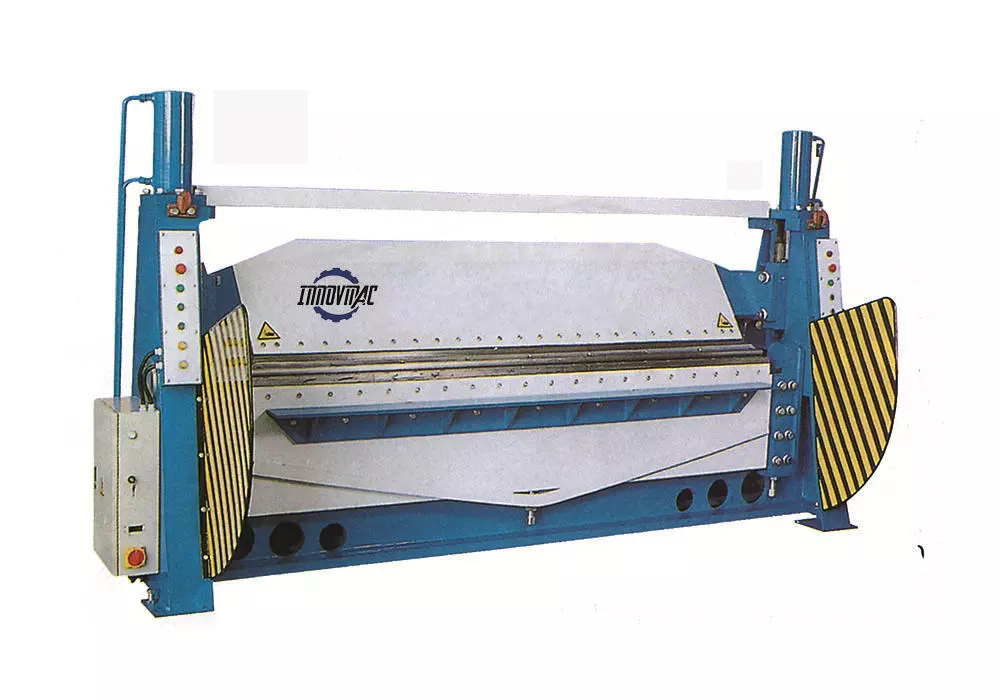

The machinery for the whole steel welded structure, after VSR ensure
high strength, small amount of deformation, easy operation, low power
consumption machine, durable.
The machine is fully hydraulic design, the system quiet, easy
maintenance, the pressure can be segmented knife is suitable for
workpieces cartridge production, opening height up to 200mm.
Pressure on the knife can automatically adjust the height, angle can
quickly adjust to work, especially for kitchenware, hardware, furniture
and other processing industries.
Model |
Unit |
W62Y-2x2500 |
W62Y-3x2500 |
W62Y-4x2500B |
W62Y-6X2500B |
W62Y-4X2000 |
W62Y-4X2500 |
W62Y-4X3100 |
W62Y-6X3100 | |
|
Folding length |
mm |
2500 |
2500 |
2500 |
2500 |
2000 |
2500 |
3100 |
3100 |
|
|
Folding thickness |
mm |
0.5-2 |
0.5-3 |
0.5-4 |
0.5-6 |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-6 |
|
|
Evolving angle of the bending beam |
0-125° |
0-125° |
0-125° |
0-125° |
0-125° |
0-125° |
0-125° |
0-125° |
||
|
Max lift of the upper beam |
mm |
180 |
180 |
200 |
200 |
180 |
200 |
200 |
200 |
|
|
Overall Dimension |
L |
mm |
3300 |
3300 |
3300 |
3300 |
2300 |
3350 |
3875 |
3875 |
|
W |
mm |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1250 |
1250 |
|
|
H |
mm |
1400 |
1400 |
1400 |
1400 |
1400 |
2000 |
2000 |
2000 |
|
|
Weight |
kg |
3400 |
3500 |
3600 |
3650 |
3200 |
2600 |
4309 |
4409 |
|
|
Main motor |
kw |
5.5 |
5.5 |
5.5 |
5.5 | |||||
