Standard Accessories
Toolbox &tools
Drawbar
Arbor
Splash guard
Chip tray
Optional accessories
Four-Jaw Chuck
Follow Rest
Steady Rest
Face Plate
ER25 Collet chuck
Digital depth ruler
Collet chuck
Quick change tool post
Turning Tools
Back plate
Stand

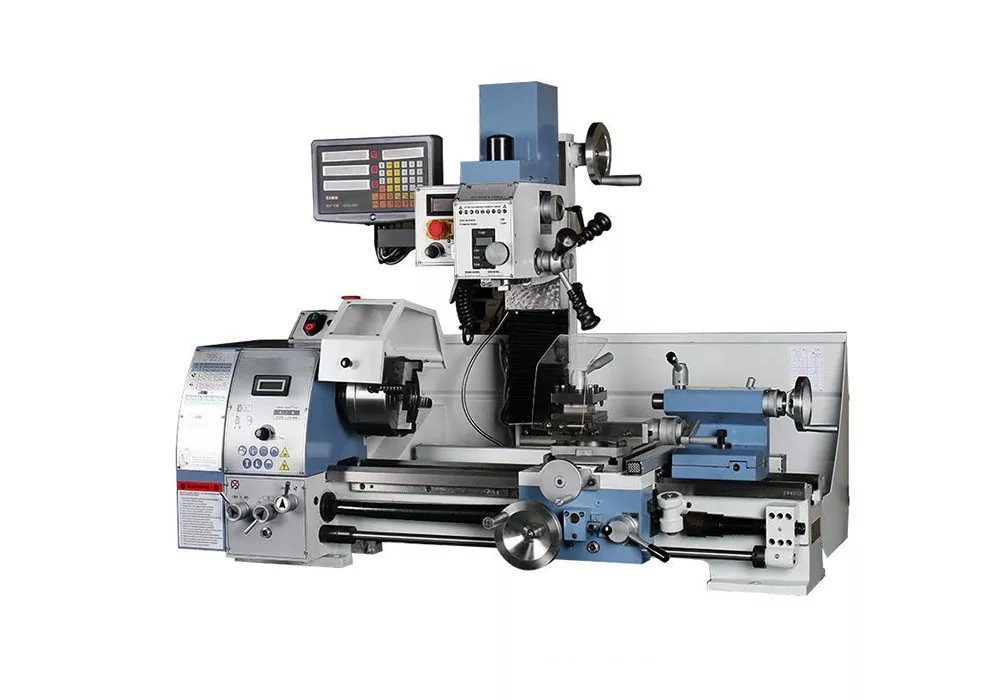

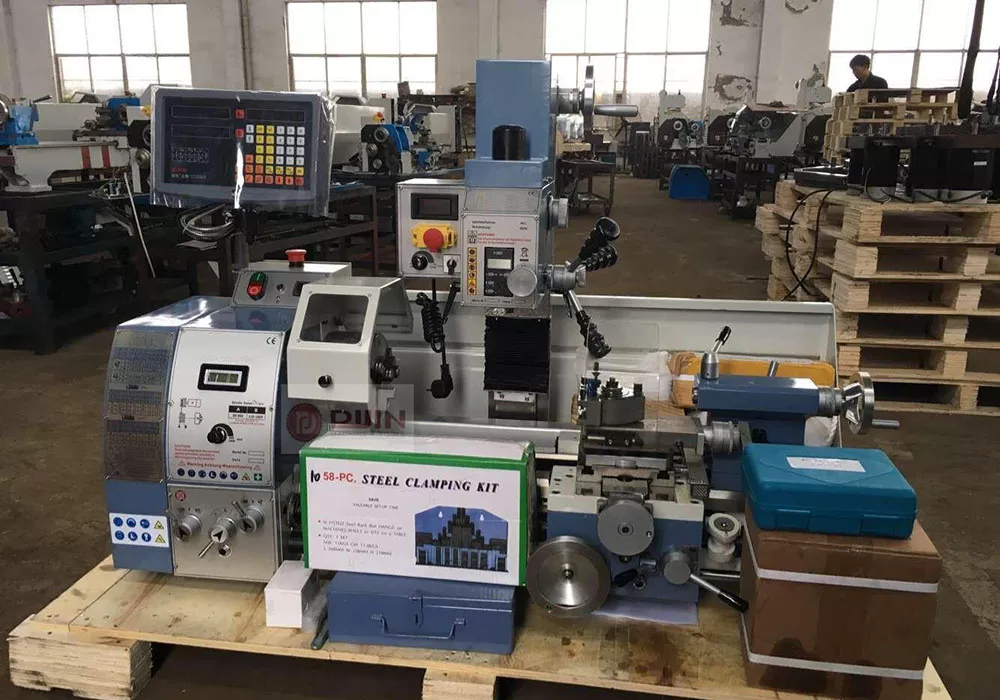

Model | P280V |
Distance between centers | 700mm |
Swing over bed | 280mm |
Swing over cross slide | 165mm |
Taper of spindle bore | MT4 |
Width of bed | 180mm |
Spindle bore | 26mm |
Number of spindle speeds | 6/variable |
Range of spindle speeds | 500-2000rpm |
Range of longitudinal feeds | 0.07 -0.20mm /r |
Range of inch threads | 8-56T.P.I |
Range of metric threads | 0.4 -3.5mm |
Top slide travel | 50mm |
Travel of cross slidel | 140mm |
Tailstock quill travel | 70mm |
Taper of tailstock quill | MT2 |
Motor | 1.1KW |
Standard Accessories | |
Taper of spindle bore | MT2 |
Spindle stroke | 50mm |
Spindle speed | 50-2250rpm |
Max.distance spindle to table | 375mm |
Max.distance spindle to columm | 185mm |
Motor | 600W |
Packing size | 1400 × 780 × 1070mm |
Net weight | 230kg / 250kg |
