Standard accessories:
Complete tool
Each-spring collet
Each-reducing sleeve
Each-cutter arobrs
Optional accessories:
F11100 universal dividing head
QH125 machine vice
TS250-1 rotary table
Z11150 Z12160 universal boring
Universal angular table(320x620mm)
Chip tray
Exchange guard
Double-taper spring collets
Splash guard
Anti-vibration pad
Drill chuck(1-13mm)
Milling chuck(JXT16-40)
Clamping kits

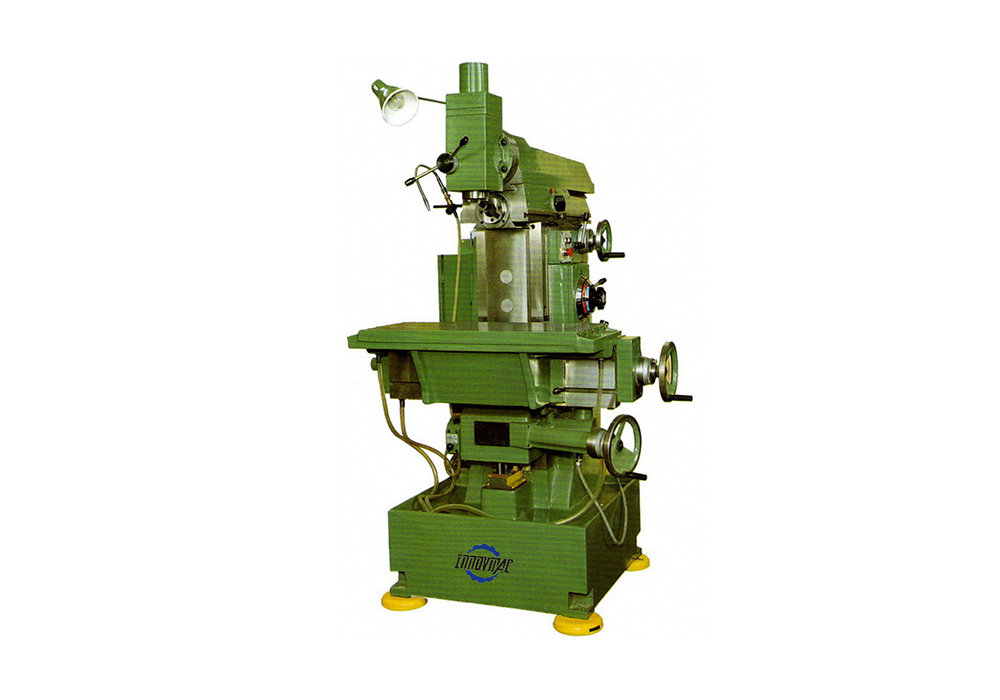

Model | Unit | X8130A |
Horizontal working table | ||
working surface | mm | 320x750 |
T slots(NxWxD) | 5x14x63 | |
Vertical working table | ||
working surface | mm | 225x830 |
T slots(NxWxD) | 2x14x126 | |
Max longitudinal travel(hand/power) | mm | 405/395 |
Max vertical travel(hand/power) | mm | 390/380 |
Max cross travel | mm | 200 |
Spindle taper bore | ISO40,7:24 | |
Max swivel of vertical milling head | ±60° | |
Distance from axis of horizontal spindle to table sureface | mm | 35-425 |
Distance from vertical table to guideway | mm | 188 |
Quill movement | mm | 80 |
Range of spindle speeds | r/min | 40-1600 |
Main drive motor power | kw | 2.2 |
Speeds of the main drive motor | r/min | 1430 |
Overall dimensions | mm | 1170X1210X1600 |
Net weight | kg | 1100 |
