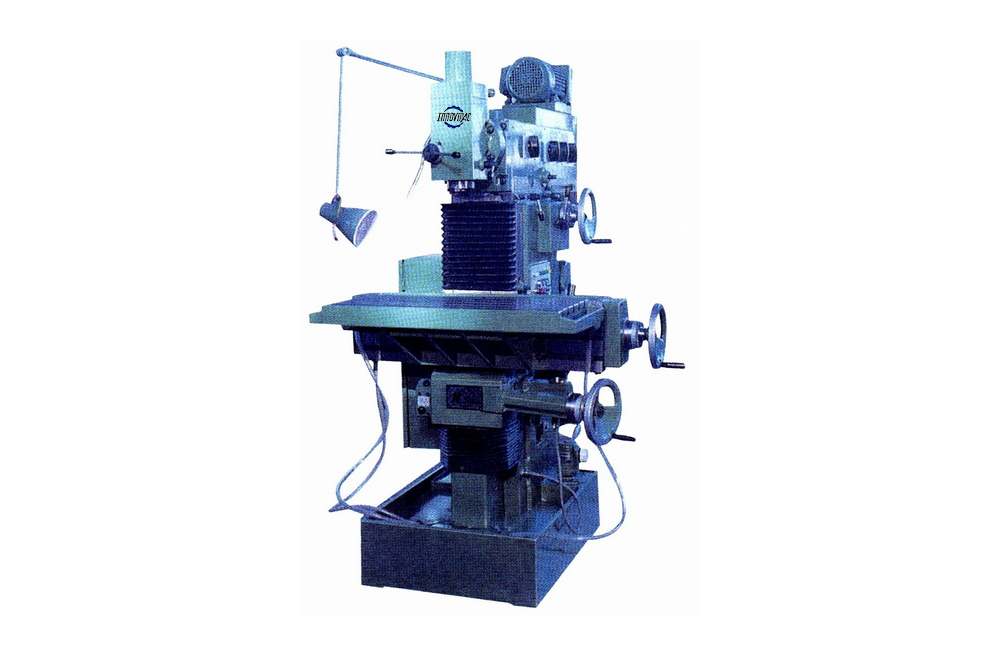

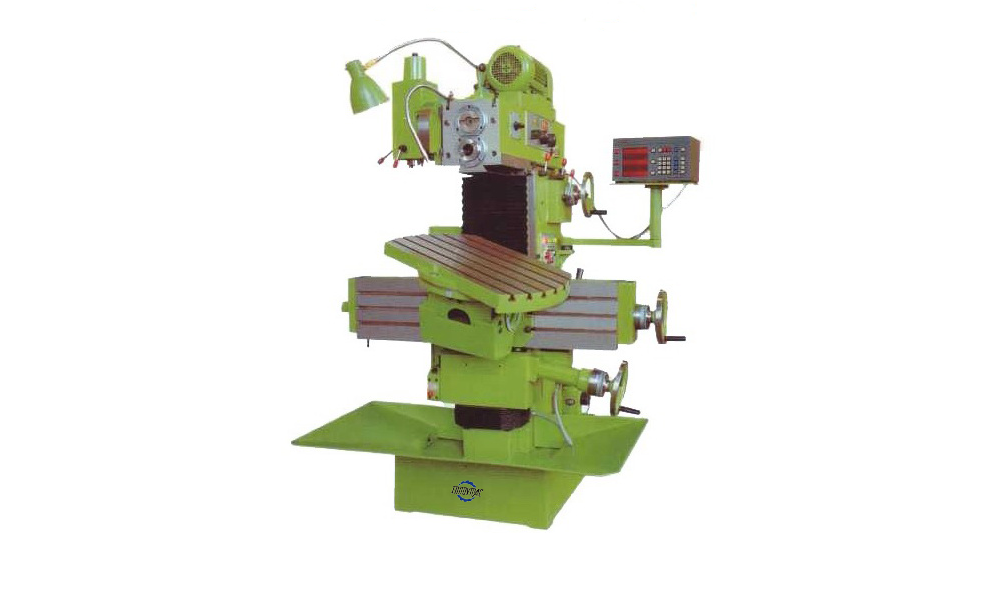

Model

Unit

X8132

X8140

Working surface of table(WxL)

horizontal

mm

320x750

400x800

vertical

mm

225x830

250x1060

T slots NxWxD)

horizontal

mm

5x14x63

6x14x63

vertical

mm

3x14x63

3x14x63

Max longitudinal(X) travel of working table(hand/power)

mm

405/400

500

Max cross(Y) travel of horizontal spindle slide(hand/power)

mm

305/300

400

Max vertical(Z) travel of working table(hand/power)

mm

400/390

400

Distance from axis of horizontal spindle to surface of horizontal working table

Min

mm

85±63

95±63

Max

mm

485±63

475±63

Distance from nose of vertical spindle to surface of horizontal working table

Min

mm

50±63

55±63

Max

mm

450±63

445±63

Distance from axis of vertical spindle to bed guideway max

mm

425

540

Range of spindle speeds(18)degrees

r/min

40-2000

40-2000

Max swivel of vertical milling head

±90°

Spindle taper bore

ISO40;7:24

ISO40;7:24

Range of longitudinal(X) cross(Y) and vertical(Z) travel

mm/min

10-380

10-380

Rapid feed of longitudinal(X) corss(Y) and vertical(Z) travel

mm/min

1200

1200

Travel of vertical spindle quill

mm

80

80

Power of main drive motor

kw

2.2

3

Total power motor

kw

3.59

5

Overall dimension

mm/min

1215x1200x1800

1390x1430x1820

Net weight

kg

1300

1400

Distance from vertical table surface to vertical guideway

mm

160
