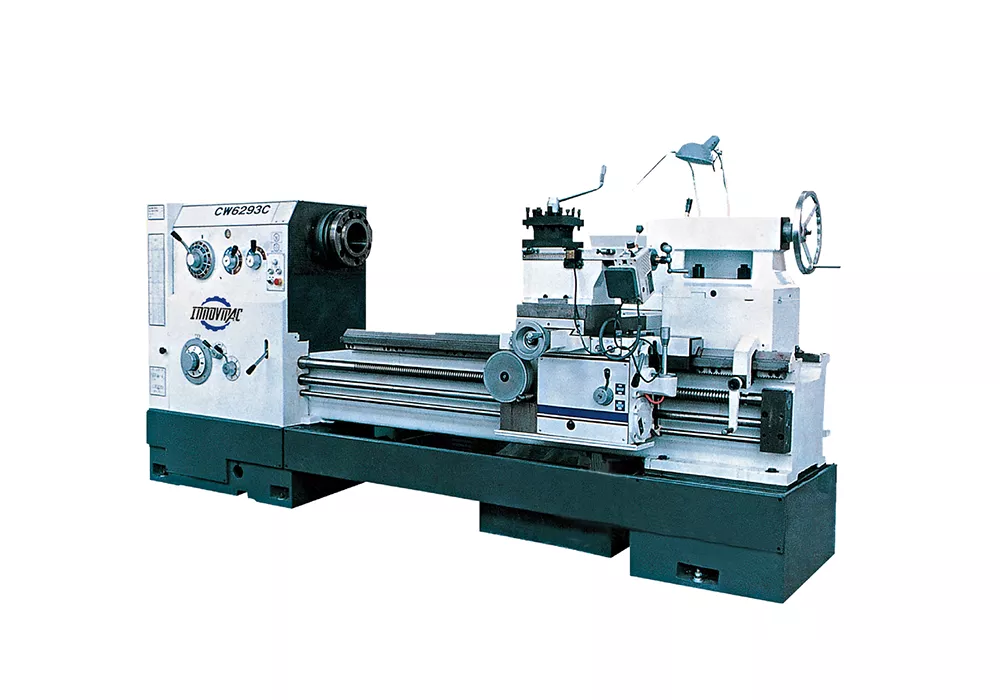

63C series horizontal lathe
This series horizontal lathe has good reputation in this line and
populated by customers in domestic and abroad. It including: CW61/263C,
CW61/273C,CW61/283C, CW61/293C, ect. Distance between centers are
750mm,1000mm,1500mm,2000mm,3000mm,4500mm,6000mm.
103C series horizontal lathe
This series horizontal lathe is a new-designed product, which are based
on 63C series lathe according to the market’s demand. The lathe is
especially suitable for machining light-duty big disc work pieces and
big diameter shaft work pieces.It including:
CW61/2103C,CW61/2123C,CW61/2143C,CW61/2163C,CW61/2183C.
The distance between centers are 1500mm, 2000mm, 3000mm, 4500mm, 6000mm.
63C series Standard accessories:
3-jaw chuck/Φ325 and flange
Dead centers
Reduction sleeve
Maintenance kit
Foundation bolts
Centers distance is more than 2000mm(include 2000mm) forΦ200 steady rest andΦ20—140 follow rest
Optional accessories:
4-jaw chuck and flange
Face plate
Drive plate
Steady rest(less than 2000mm)
Follow rest(less than 2000mm)
Φ130 spindle bore
Electric turret
Electric quill
Taper turning attachment
103C series Standard accessories:
4-jaw chuck and flangeΦ500(103C.,123C); Φ630(143C,163C,183C)
Dead centers
Reduction sleeve
Maintenance kit
Foundation bolts
Centers distance is more than 3000mm(include 3000mm) for steady restΦ500（103C、123C）、Φ700（143C、163C、183C）
Optional accessories:
3-jaw chuck and flange
Face plate
Steady rest(less than 3000mm)
Follow rest
Φ130 spindle bore
Electric turret
Electric quill
Taper turning attachment
Model |
Unit |
CW6163C |
CW6173C |
CW6183C |
CW6193C |
CW61103C |
CW61123C |
CW61143C |
CW61163C |
CW61183C | |
|
CW6263C |
CW6273C |
CW6283C |
CW6293C |
CW62103C |
CW62123C |
CW62143C |
CW62163C |
CW62183C |
|||
|
Swing over bed |
mm |
630 |
730 |
830 |
930 |
1030 |
1230 |
1430 |
1630 |
1830 |
|
|
Swing in gap |
mm |
800 |
900 |
1000 |
1100 |
1200 |
1400 |
1600 |
1800 |
2000 |
|
|
Swing over cross slide |
mm |
350 |
450 |
550 |
650 |
700 |
900 |
1100 |
1240 |
1440 |
|
|
Distance between centers |
mm |
750,1000,1500,2000,3000,4500,6000 |
1500,2000,3000,4500,6000 |
||||||||
|
Length in gap from face plate |
mm |
300 |
380 |
||||||||
|
Spindle nose |
Cll or D11 |
C11 or D11 |
|||||||||
|
Spindle bore |
mm |
105130 |
105,130 |
||||||||
|
Spindle speeds |
rpm/steps |
10—800/18 |
10-800/18 7-576/18 6-480/18 |
||||||||
|
Cross slidle travel |
mm |
480 |
615 715 815 915 |
||||||||
|
Top rest travel |
mm |
225 |
|
||||||||
|
Rapid traverse |
mm/min |
Axe Z:3200, Axe X:1900 |
Axe Z:3200,Axe X:1400 |
||||||||
|
Quill diameter |
mm |
90 |
120 |
||||||||
|
Quill travel |
mm |
260 |
270 |
||||||||
|
Quill taper |
MT5 |
MT6 |
|||||||||
|
Bed width |
mm |
550 |
610 |
||||||||
|
Metric threads |
mm/kinds |
1—240/53 |
1-240/53 |
||||||||
|
Inch threads |
tpi/kinds |
30—2/31 |
30-2/31 |
||||||||
|
Module threads |
mm/kinds |
0.25—60/46 |
0.25-60/42 |
||||||||
|
Diametral pitch threads |
Tpi/kinds |
60—0.5/47 |
60-0.5/47 |
||||||||
|
Main motor power |
kw |
11 |
11 |
||||||||
|
Longitudinal feeds |
0.07-16.72 |
||||||||||
|
Packing size |
Length |
mm |
3460,3390,3795,4330,5310,6810,8310 |
3840,4340,5170,6670,8200 |
|||||||
|
Width |
mm |
1400 |
1700 |
1700 |
1850 |
2100 |
2200 |
||||
|
Heigth |
mm |
2000 |
1980 |
2080 |
2220 |
2280 |
2380 |
||||
|
Gross weight |
Kg |
4250 |
4450 |
4650 |
4900 |
5900 |
6500 |
7200 |
7800 |
8600 |
|
|
4500 |
4700 |
5100 |
5300 |
6250 |
6850 |
7400 |
8200 |
9000 |
|||
|
5000 |
5200 |
5600 |
5800 |
6900 |
7500 |
8100 |
8900 |
9700 |
|||
|
5500 |
5700 |
6100 |
6300 |
8000 |
8600 |
9000 |
9800 |
10600 |
|||
|
6200 |
6400 |
6600 |
6900 |
9000 |
9600 |
10000 |
10500 |
11200 |
|||
|
7300 |
7500 |
7600 |
7900 |
||||||||
|
8300 |
8500 |
8600 |
8700 | ||||||||
