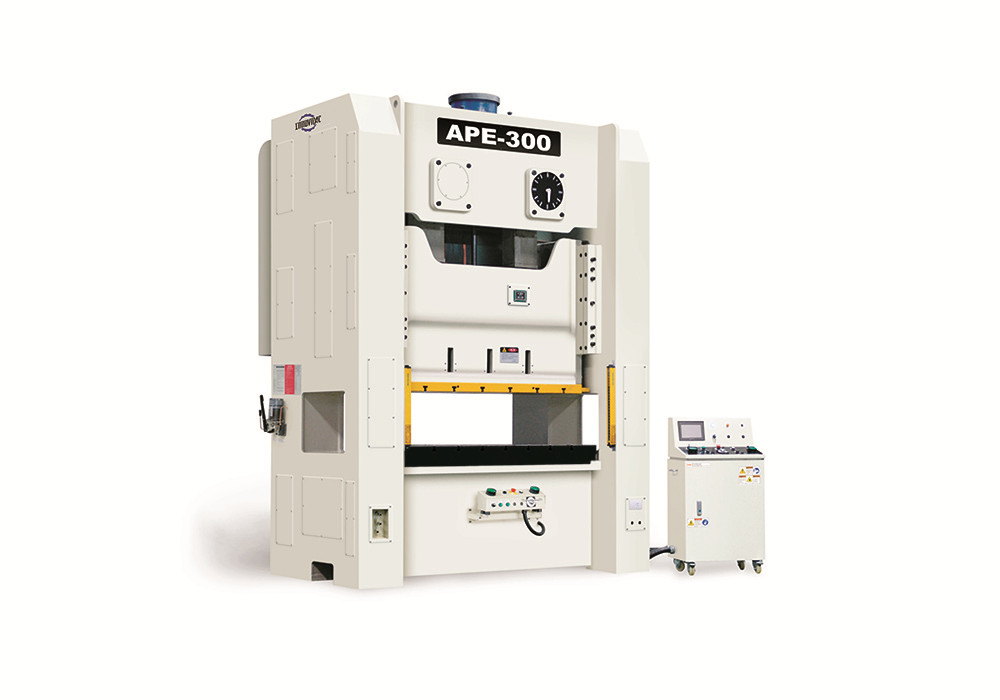

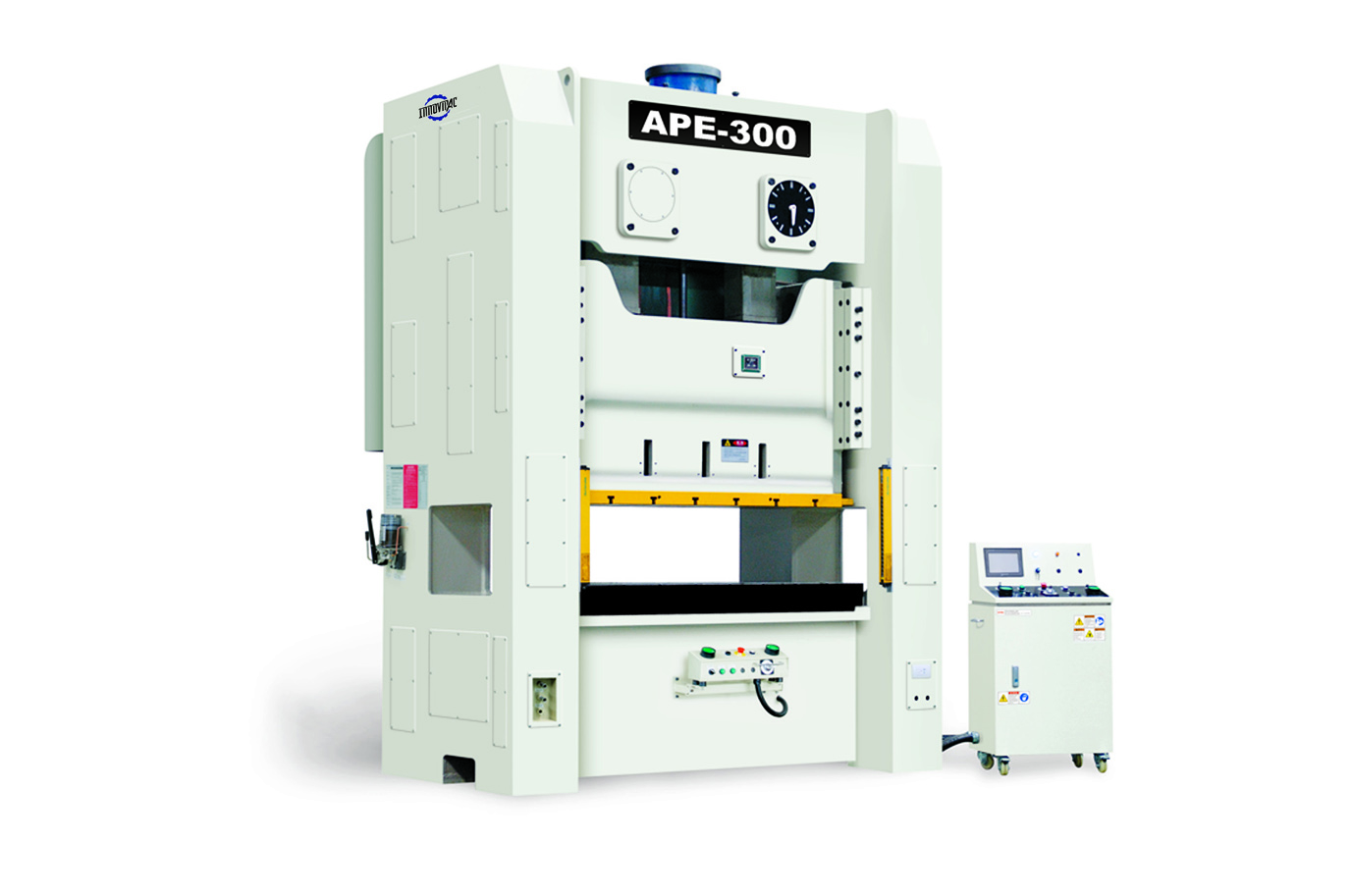

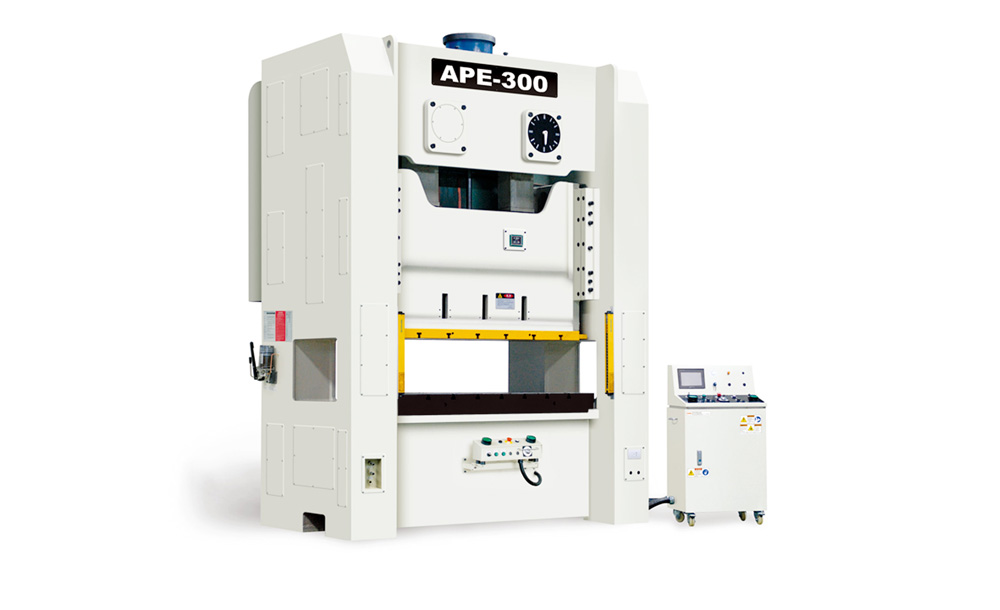

Double Crank Closed-Type Press_Metal Forming Machine

Power Press

Home > Products > Metal Forming Machine > Power Press

FEATURES
PARAMETER

Keep the transmission center and machine center in uniformity, guarantee the precision of pressing.

In order to guarantee the machine running in stable and smooth, adopts the design of symmetrical boards with balancer.

The precision of mold adjusting up to 0.1mm, safety, reliable and convenient.

Crank, gear, connect bar are oxidized hardening and milled, having super comprehensive mechanical performance and durable function.

Used reliable high sensitive clutch/brake and international up-to-date twin electromagnetic valve. overloading protector can guarantee the precision of slider running and stop and safe production of the machine.

Reasonable structural design is benefit for automation production and reduce cost, improve efficiency.

Advanced design, principle, low noise, low consumption, low cost, save energy.

Name	Unit	APE-160		APE-200		APE-250		APE-300		APE-400		APE-500		APE-600
Model		S	H	S	H	S	H	S	H	S	H	S	H	S	H
Capacity	Ton	160		200		250		300		400		500		600
Rated tonnage point	mm	6	3	6	3	7	3	7	3	7	3	10	6	10	6
Stroke	mm	180	130	250	150	280	170	300	170	300	170	300	180	300	180
Stroke per minute	s.p.m	30-55	40-85	20-50	35-70	20-40	30-60	20-35	30-50	20-30	20-40	18-25	20-30	15-25	20-30
Die height	mm	450	400	500	450	550	450	550	450	550	450	580	480	600	500
Slide adjustment	mm	100		120		120		120		120		120		120
Slide area	mm	1600x650		1850x750		2100x900		2100x900		2800x1000		2900x1000		3100x1100
Bolster area	mm	1800x760		2200x940		2500x1000		2500x1000		3200x1000		3300x1200		3500x1200
Side opening	mm	700x450		900x600		900x600		900x600		900x600		1000x750		1100x750
Main motor	kwxP	15x4		18.5x4		22x4		30x4		30x4		45x4		55x4
Slide adjust device	kwxP	1x4		2x4		2x4		2x4		2x4		3x4		3x4
Air pressure	kg/cm2	6		6		6		6		6		6		6
Presses precision		GB(JIS)1 class
