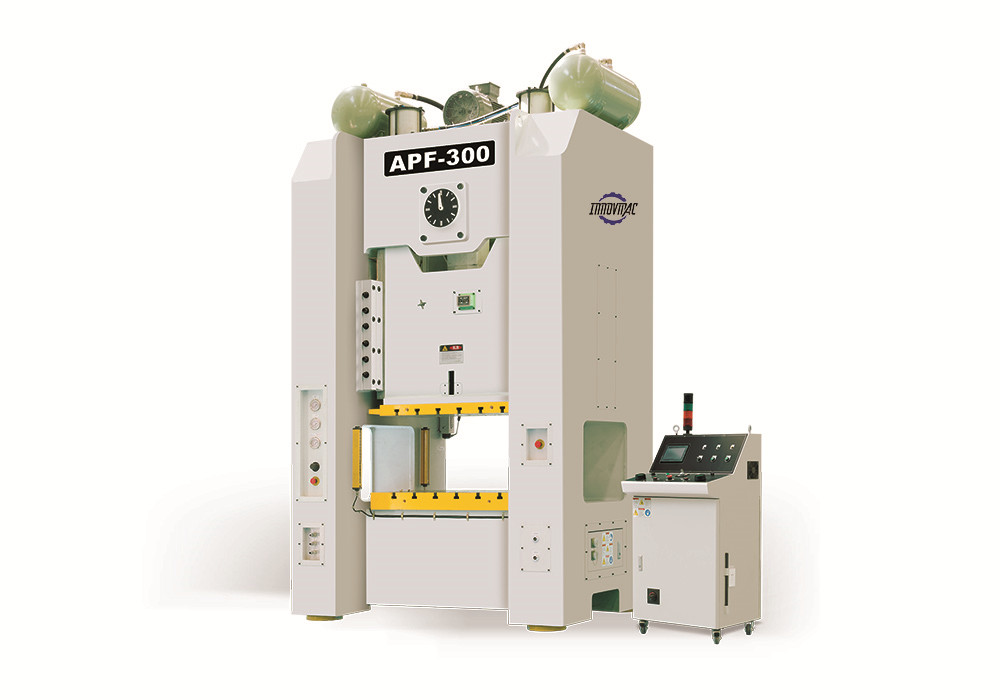

Single Crank Closed-Type Press_Metal Forming Machine

Power Press

Home > Products > Metal Forming Machine > Power Press

FEATURES
PARAMETER

1.The machine body is welded high quality steel sheet and treated by tension elimination.

2.The key parts are treated by hard chrome plated.

3.Adopted well known controller/driving unit/electromagnetism clutch/equipments, bearing etc.

4.International technology class for press machine,measures machine specification.

5.High quality and high response multi-function processor.

6.High memory/program with specialized design.

7.Shift driving with high integration multi shaft/spreading automatic equipments.

8.LCD man-machine interface/high frequency response control/connection international Ethernet website and USB.

Model		APF-110		APF-160		APF-200		APF-260		APF-300		APF-400		APF-500	APF-600
		V	H	V	H	V	H	V	H	V	H	V	H	V	V
Capacity	ton	110		160		200		260		300		400		500	600
Rated tonnage point	mm	6	3	6	3	6	3	7	3.5	7	3.5	9	4.5	10	13
Stroke	mm	180	80	200	90	200	100	250	150	300	170	300	200	250	250
Speed changing	s.p.m	30-60	60-90	20-50	40-70	20-50	50-70	20-40	40-50	20-40	35-50	15-25	20-35	20-30	15-20
Stable speed	s.p.m	50		35		35		30		30		20		20	20
Die height	mm	360	410	460	510	460	510	500	550	550	615	550	600	550	550
Slide adjustment	mm	80		100		110		120		120		150		120	120
Slide area	mm	1000x550x70		1100x600x90		1200x650x90		1300x700x100		1400x800x110		1500x850x110		1400x800	1400x1200
Bolster area	mm	1100x600x110		1200x800x140		1300x820x160		1400x840x180		1500x950x200		1600x1000x200		1500x1000	1700x1300
Side opening	mm	700x500		850x600		880x650		900x700		1000x750		1000x750		900x800	1000x900
Main motor	Kw x p	11x4		15x4		18x4		22x4		30x4		40x4		55x4	75x4
Slide adjusting motor	Kw x p	0.4x4		0.75x4		0.75x4		1.5x4		1.5x4		2.2x4		3x4	3x4
Air pressure	Kg/cm2	6	6	6	6	6	6	6	6	6	6	6	6	6	6
Presses precision		GB/T23280-2009
