●Longitudinal and cross feeds are effected by ball leadscrews. Driven by servo motors.
●Either vertical or horizontal 4-station or 6-station tool post or gang
tools can be selected. The post is located on precision contrite gears
with a high repeated positioning accuracy.
●Both chuck and tailstock are supplied with hydraulic or manual type.
Model |

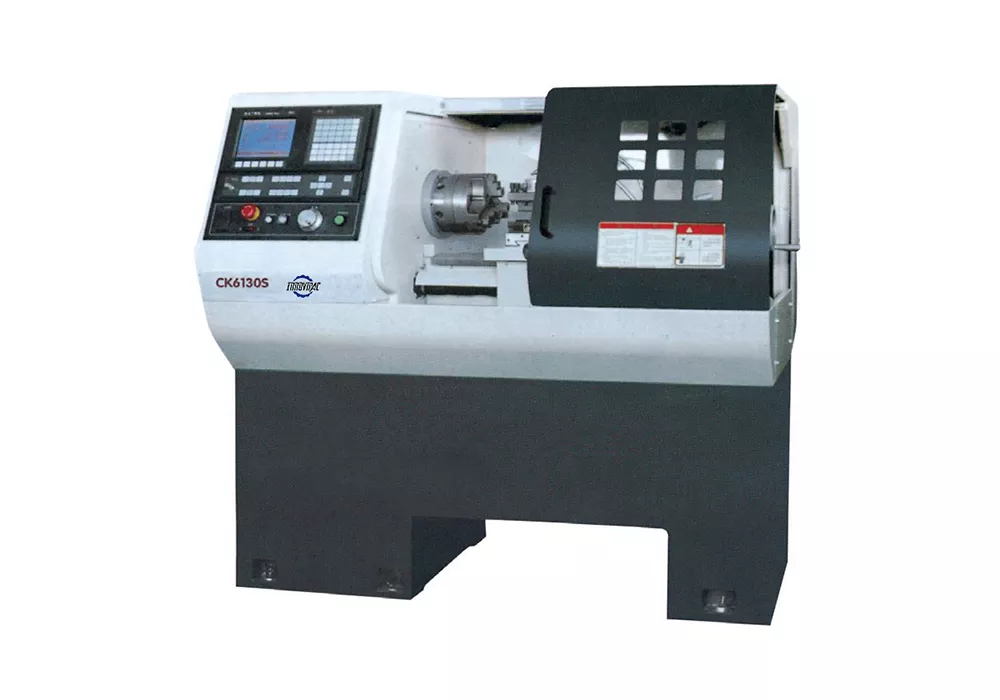

CK6130S |
CK6132S /CK6136S |

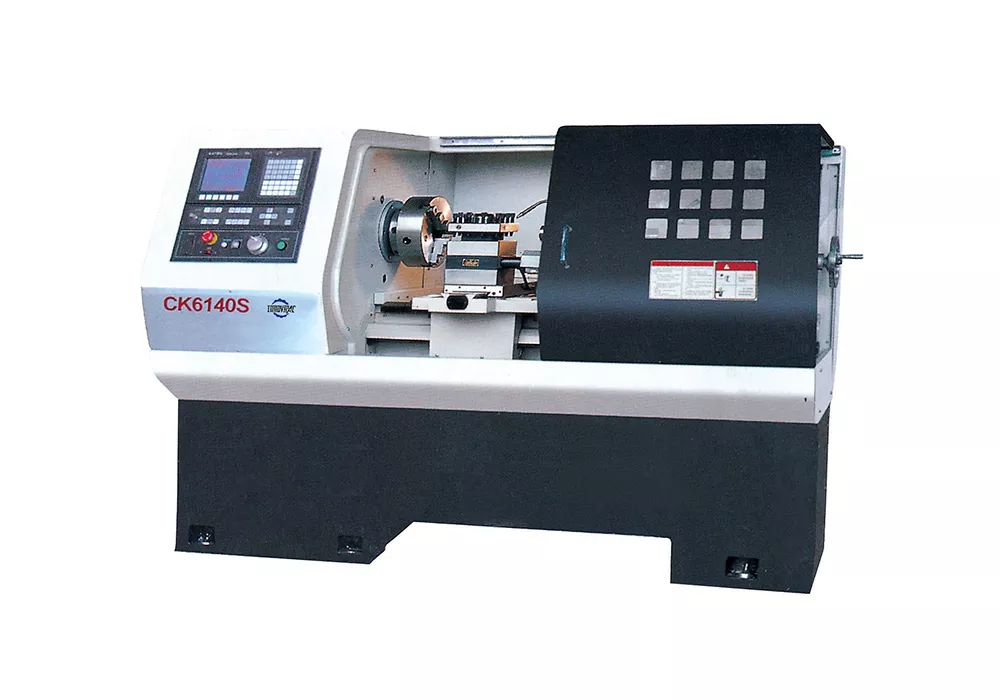

CK6140S |
|
Over bed |
Ø300mm(12〞) |
Ø360mm(14〞) |
Ø400mm(15.7〞) |
|
Over carriage |
Ø135/Ø100mm |
Ø180/Ø100mm |
Ø225/Ø150mm |
|
(Gang tools) |
(Gang tools) |
(Gang tools) |
|
|
Maximum turned length |
500 mm |
500/750/1000mm |
500/750/1000mm |
|
Max. turning length |
460mm |
450/700/950 mm |
450/700/950 mm |
|
Spindle nose |
D4 or A2-5 |
C5 |
C6 |
|
Spindle bore |
Ø38 or Ø43mm |
Ø40mm |
Ø52mm |
|
Cone hole diameter and taper of spindle hole |
MT.No.5 |
MT.No.5 |
MT.No.6 |
|
Steps of spindle speed(Manual) |
Variable |
||
|
Range of spindle speed |
200~3500r/min |
200~2800r/min |
|
|
Rapid feed for Axis Z |
10m/min |
||
|
Rapid feed for Axis X |
8 m/min |
||
|
Max. travel of Axis Z |
460mm(18〞) |
490/740/990 mm |
|
|
Max. travel of Axis X |
165/260mm |
215/295mm |
235/295mm |
|
Min. input |
0.001mm |
||
|
Tool post stations |
Gang tool post or power tool post |
4-ways or 6-ways or gang tools |
|
|
Tool cross section |
16×16 mm |
20×20 mm |
|
|
External diameter |
Ø50mm |
Ø60mm |
|
|
Taper of bore |
MT.No.3 |
MT.No.4 |
|
|
Max. Traverse |
130 mm |
120 mm |
|
|
X/Z motor torque |
3.6/4.7Nm |
3.6/4.7Nm |
|
|
Power of main motor |
3KW(4HP) |
3.7KW(5HP) |
3.7KW |
|
(Extra 5.5KW) |
|||
|
Power of cooling pump |
75W |
||
|
Overall dimensions(L×W×H) |
1500×945×1380mm |
(1870,2120,2370)×1200×1415mm |
|
|
Net weight |
1100㎏ |
1500,1700,1900㎏ |
