CK75 series CNC lathes,its strength, dynamic and static rigidity, mechanics of main parts, guard and coolant system are all advanced in design. This series lathe, designed with high vibration strength, adopts high grade cast iron, one piece of bed base, slant guideways, a high precision through-hole spindle driven by large-field AC main motor. Key parts like bearings of main spindle and of feeding screw are all famous foreign products. The multi-station turret indexes fast and continuously with a high repeatability and changes tool proximately. The lathe can be equipped with FANUC 0i-TD, FANUC 0i Mate-TD, Siemens 810D, 802D, DASEN 3i and etc on request. or other top brand control systems from both China and foreign countries (hydraulic parts, lubrication units and chucks that are good-quality from both domestic and foreign markets).
The lathe is designed with unique appearance, easy-operated panel, full-enclosed guard, which can prevent the leakage of water, power and oil effectively. It is the most powerful product in its class due to the large power, excellent accuracy and high performance.

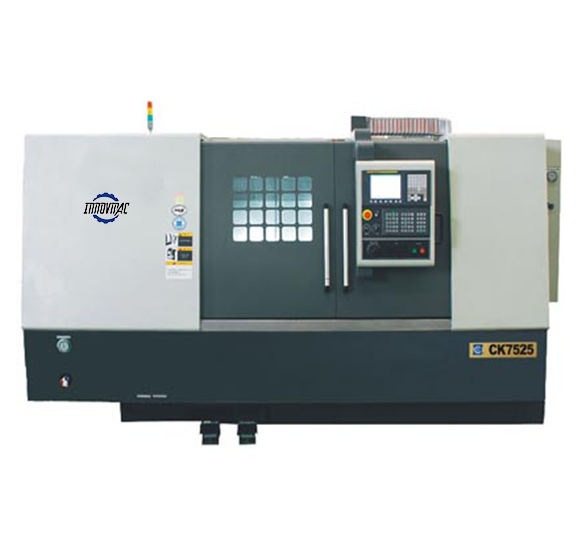

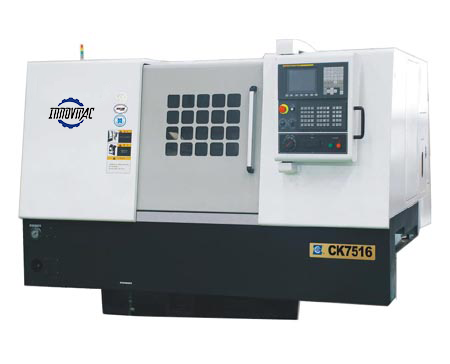

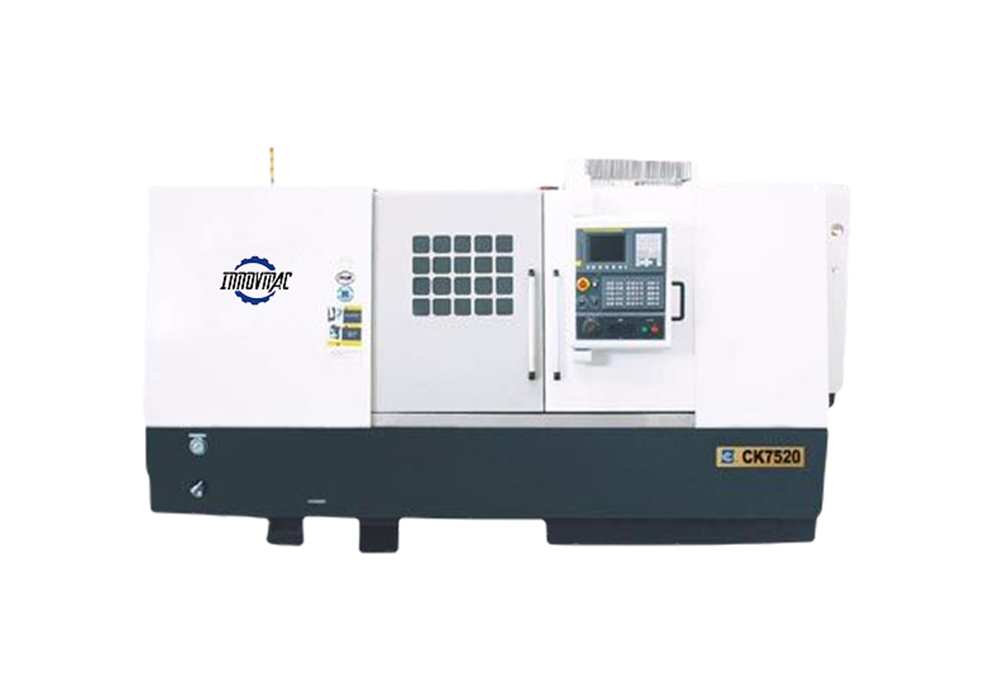

CK7516-7525
Model | UNIT | CK7516 | CK7520 | CK7525 | |
Capacity | Max.swing diameter over bed | mm | φ400 | φ500 | φ550 |
Max.swing dia. over slide | mm | φ260 | φ320 | φ370 | |
Max.turning diameter | mm | φ285 | φ370 | φ450 | |
Max.turning length | mm | 400 | 500 | 1000 | |
Max.bar diameter | mm | φ42 | φ51 | φ73 | |
Spindle | Type of spindle nose | A2-5 | A2-6 | A2-8 | |
Spindle bore diameter | mm | φ57 | φ62 | φ87 | |
Chuck diameter | mm | φ165 | φ210 | φ254 | |
Spindle speeds | r/min | 55-5500 | 40-4000 | 30-3000 | |
Spindle motor power（continuous/30min） | KW | 11/15（β） | 11/15 | 15/18.5 | |
Tailstock | Quill diameter | mm | φ70 | φ90 | φ100 |
Quill travel | mm | 80 | 100 | 100 | |
Taper of center(standard/alive spindle) | Morse No.4/2 | Morse No.5/4 | Morse No.5/4 | ||
Feeds | Travel X/Z | mm | 165/410 | 210/550 | 250/1010 |
Rapid traverse rate X/Z | m/min | 12/16 | 12/16 | 12/16 | |
FANUC servo motor torque X/Z | N•m | 8/12 | 8/12 | 12/22 | |
Turret | Number of turret station | 12/8 | 12/8 | 12/8 | |
Tool size（turning/boring） | mm | 20×20/φ32 | 20×20/φ40 | 25×25/φ40 | |
Others | Slant degree of bed | 45° | 45° | 45° | |
Power supply | KVA | 35 | 45 | 50 | |
Dimensions (L×W×H) | mm | 2540×1670×1710 | 2850×1800×1850 | 3785×1850×1930 | |
Weight | kg | 3000 | 4500 | 5000 | |

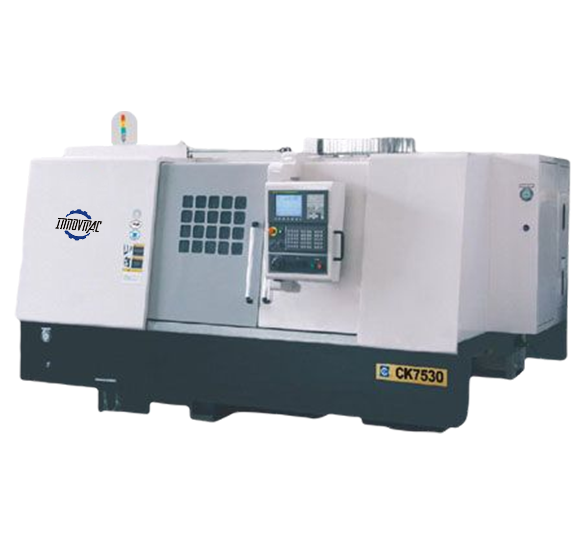

CK7530
Item | Description | Unit | Data | |
Power turret | Hyd. Turret | |||
Capacity | Max swing over bed/slide | mm | Φ670/Φ470 | |
Max turning length | mm | 1500(800) | ||
Max turning dia | mm | Φ600 | Φ550 | |
Max bar dia | mm | Φ90 | ||
Spindle | Hydraulic chuck dia | mm | Φ305 | |
Spindle nose | A2-8（GB5900.1） | |||
Spindle thru-hole | mm | Φ105 | ||
Spindle bearing (front/rear) | mm | Φ140/Φ130 | ||
Spindle speed | r/min | 25--2500 | ||
L:12-830 H:50-2500(with speed reducer) | ||||
Main motor(cont./30min) | kW | 22/30; 22/26(with speed reducer) | ||
Tailstock | Quill dia/travel | mm | Φ110/150 | |
Center taper of standard/live spindle structure | MT No. | 6/5 | ||
Carriage | Slant angle | DEG | 60° | |
X/Z-axis travel | mm | 325/1550(880) | 305/1550(880) | |
X/Z-axis rapid traverse | m/min | 12/16 | ||
X/Z-axis motor torque | Nm | 12/22 | ||
X/Z-axis screw dia | mm | Φ40/Φ50 | ||
Turret | Number of stations | 12/8 | 12/8 | |
Tool section(turning/boring) | mm | 32×32/Φ50 | ||
Others | Power supply | kVA | 60 | |
Dimension(L×W×H ) | mm | 4820×2130×2180（3820×1990×2040） | ||
Gross weight(net) | kg | 9730(8330) | ||
