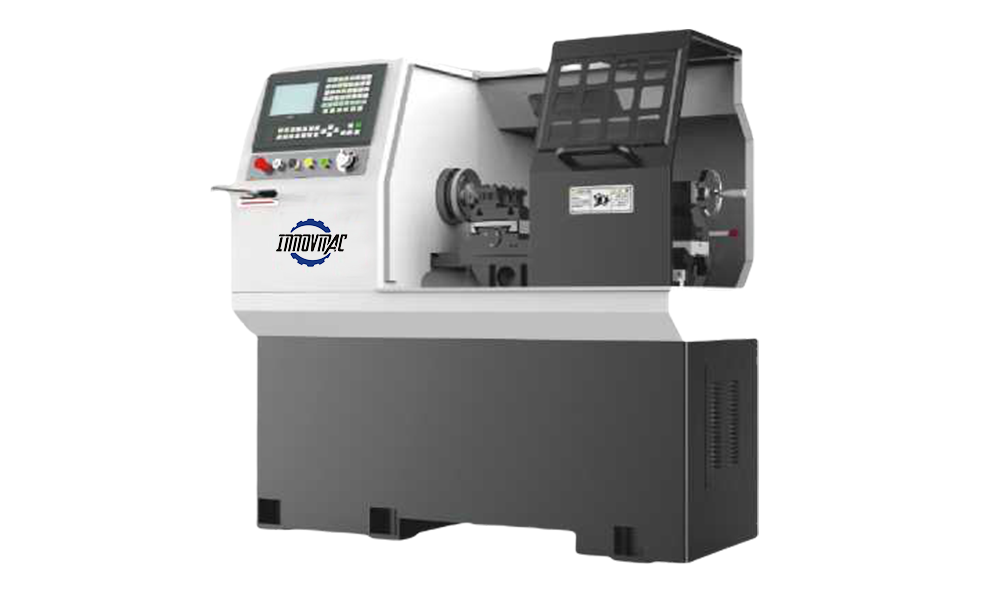

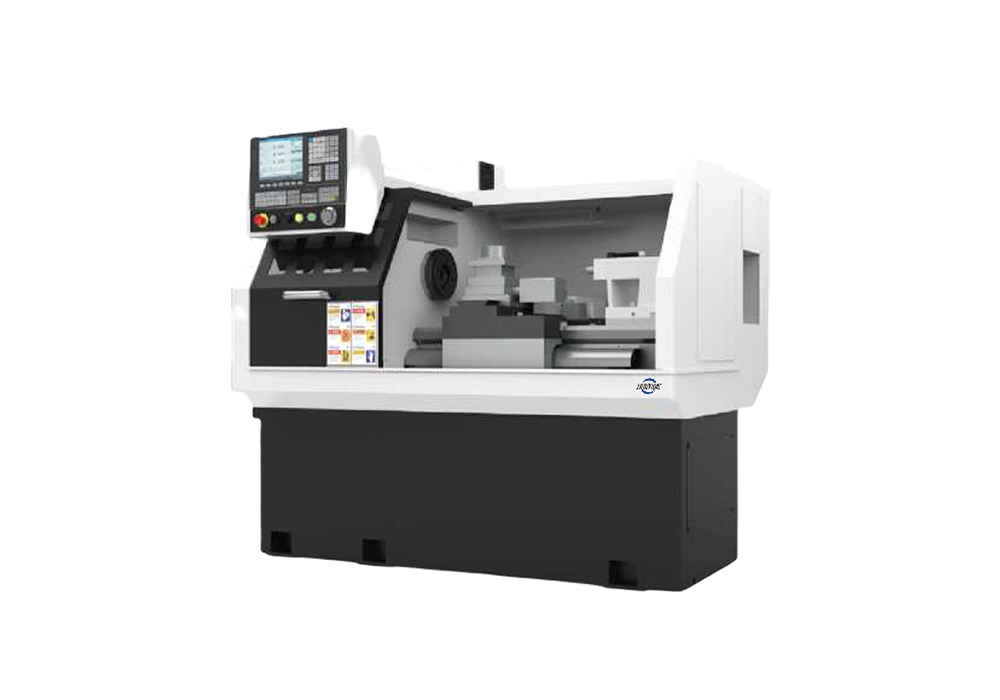

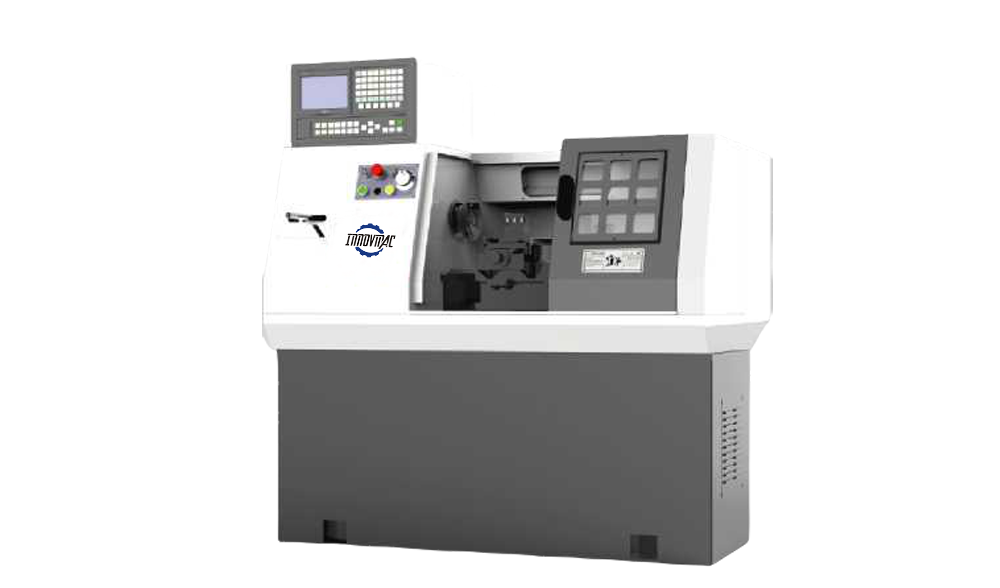

TF6:
High cost performance,Good machining ability,high producibility,3+2 structure bearing pack,high rigidity and accuracy spindle.

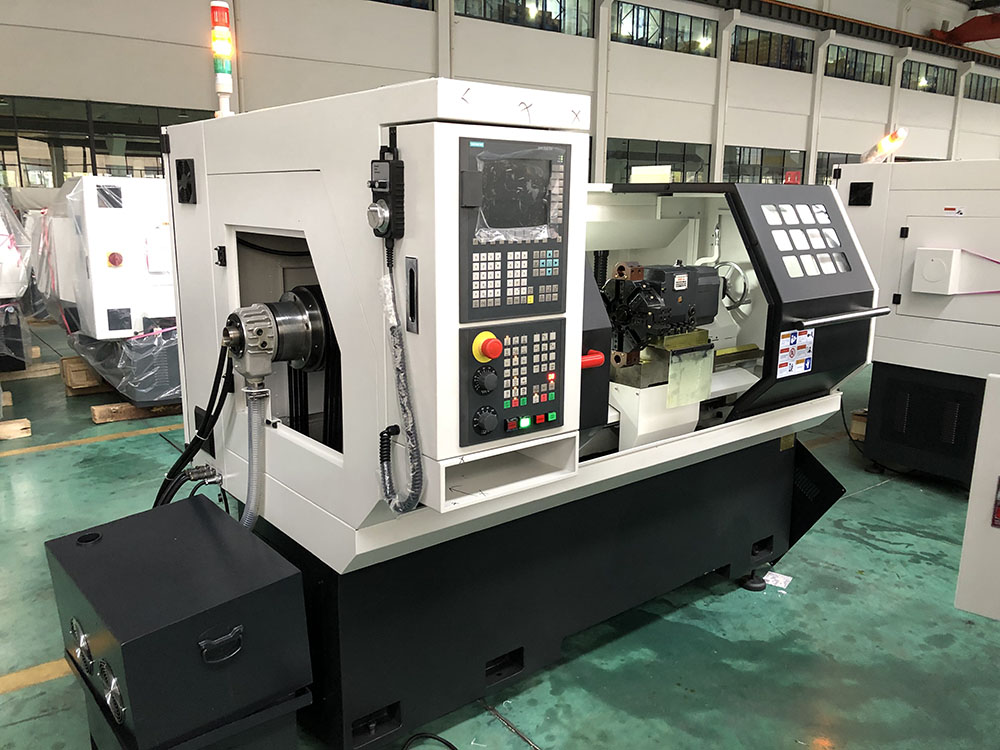

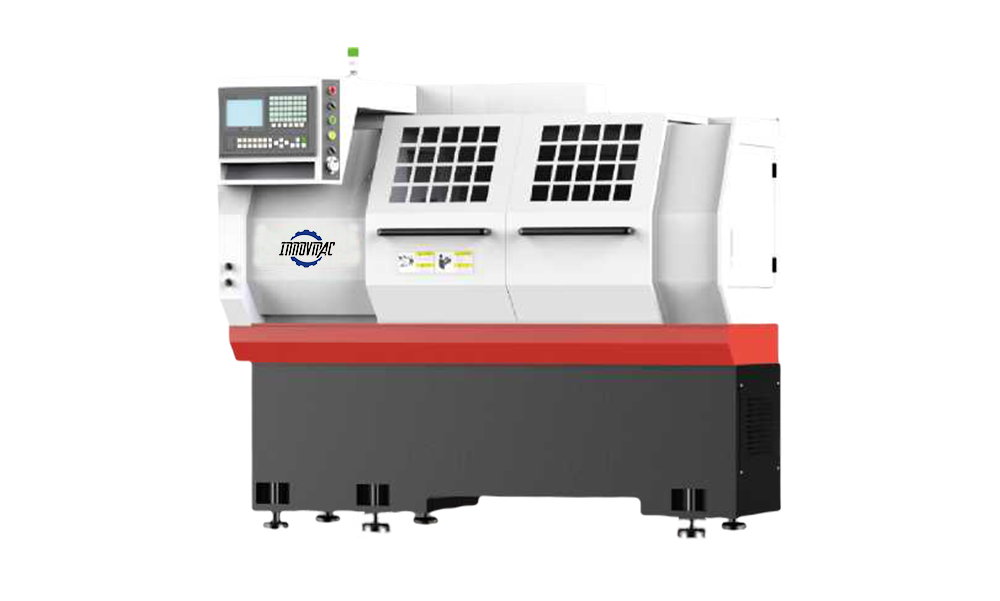

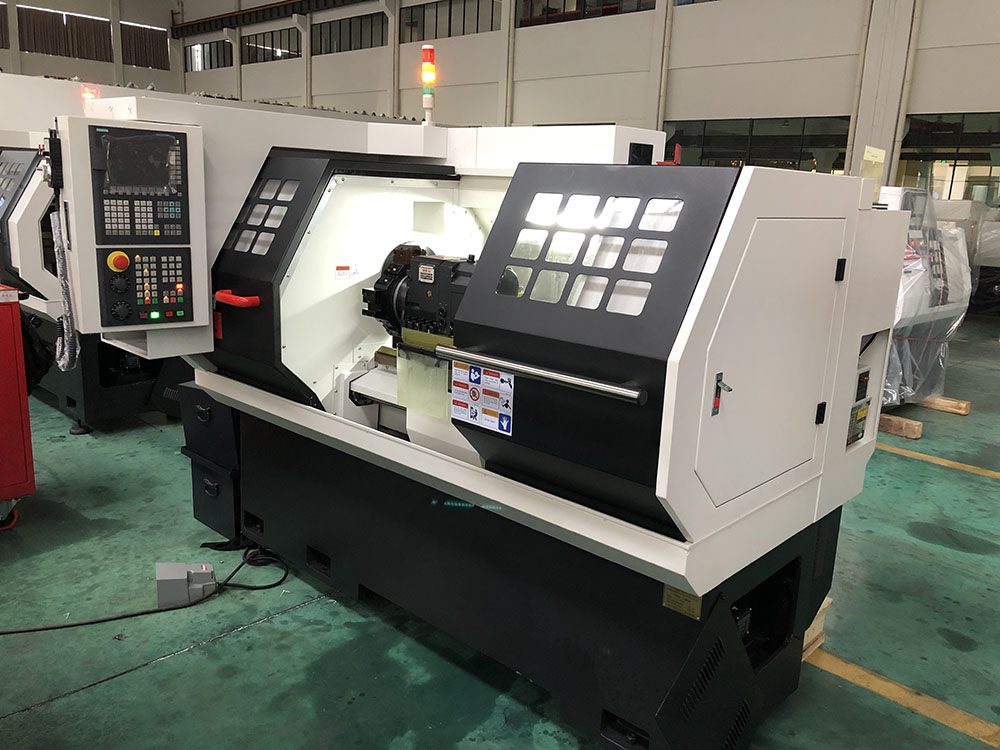

TF8/TF8L:
Able to complete all kinds of complicated parts.
Adopt collet,chuck or special clamping device.
Pneumatic or manual clamping.
Model | Unit | TF6 | TF8 | TF8L |
Swing diameter over bed | mm | 300 | 400 | 470 |
Swing diameter over slide | mm | 140 | 180 | 200 |
X/Z axis travel | mm | 200/300 | 250/500 | 300/600 |
Spindle bore | mm | 35 | 48 | 56 |
Speed range | rpm | 3500 | 3000 | 3000 |
X/Z axis rapid travel speed | m/min | 8/12 | 10/12 | 8/10 |
X/Z servo motor torque | N.m | 4/4 | 4/6 | 5/7.5 |
Chuck size | inch | 6 | 6 | 8 |
Tools | Electric tool&Gang type tool post | Electric tool post | ||
Tool shank dimensions | mm | 20*20 | 20*20 | 25*25 |
Boring tool size | mm | 20 | 20 | 20 |
Clamping | Collet | Pneumatic collet | Manual chuck | |
Positioning accuracy X/Z | mm | 0.016/0.02 | 0.012/0.016 | 0.012/0.016 |
Repeatability accuracy X/Z | mm | 0.007/0.008 | 0.004/0.006 | 0.004/0.006 |
Tailstock quill diameter | 43 | 52 | 65 | |
Tailstock quill travel | mm | 90 | 120 | 130 |
Tailstock taper | MT3 | MT4 | MT4 | |
Roundness | mm | 0.005 | 0.005 | 0.008 |
Surface roughness | Ra1.6 | Ra1.6 | Ra1.6 | |
Total power consumption | KVA | 5.62 | 9.12 | 9.78 |
Overall dimensions(L*W*H) | mm | 1500*1200*1480 | 2000*1250*1650 | 2200*1350*1620 |
Weight | kg | 800 | 1350 | 2100 |
