●Longitudinal and cross feeds are effected by servo motor drive through ball screws.
●Either vertical or horizontal 3-station or 6-station tool post or gang tools can be selected. The post is located on precision contrite gears with a high repeated positioning accuracy.
●Both chuck and tailstock are supplied with hydraulic or manual type.
●The surface of the bedways is supersonic frequency hardened and precision ground with a long service life.
●Variable spindle speed can be programmed as two rangs, that is high one and low one.

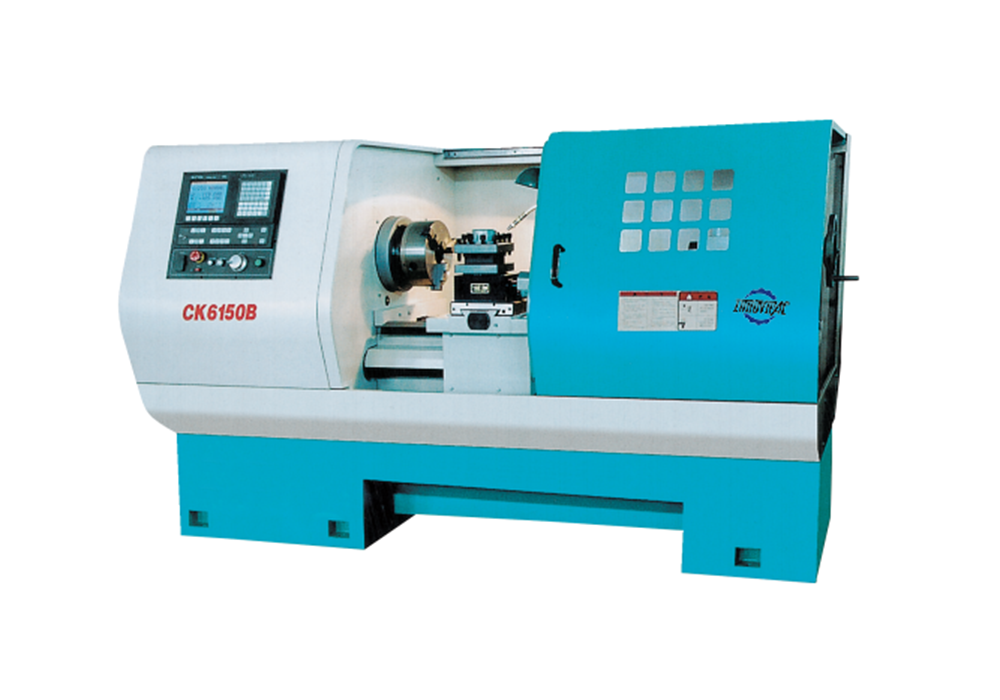

Model | CK6150B | CK6156B |
Max. swing over bed | Ø500mm | Ø560mm |
Max. swing over carriage | Ø310mm | Ø330mm |
Width of bed | 405mm | 405mm |
Maximum turned length | 750/1000/1500/2000/3000mm | |
Max. turning length | 650/900/1400/1900/2900mm | |
Spindle nose | A2-8 | |
Spindle bore | Ø80mm | |
Cone hole diameter and taper of spindle hole | MT.No7 | |
Steps of spindle speed(Manual) | Variable | |
Range of spindle speed | 400~1600rpm(high) 50~400 rpm(low) | |
Rapid feed for Axis Z | 10m/min | |
Rapid feed for Axis X | 8 m/min | |
Max. travel of Axis Z | 720/970/1270/1970/2970mm | |
Max. travel of Axis X | 300mm | 320mm |
Min. input | 0.001mm | |
Tool post stations | 4-ways or 6-ways | |
Tool cross section | 32×32 mm | |
External diameter | Ø75mm | |
Taper of bore | MT.No.5 | |
Max. Traverse | 150mm | |
Power of main motor | 7.5 KW | |
Power of cooling pump | 90W | |
Overall dimensions(L×W×H) | 2250/2500/3000/3500/4500x1200x1520 | 2250/2500/3000/3500/4500x1200x1550 |
Net weight | 2700/3000/3500/4000/4600㎏ | 2800/3100/3600/4100/4700㎏ |
