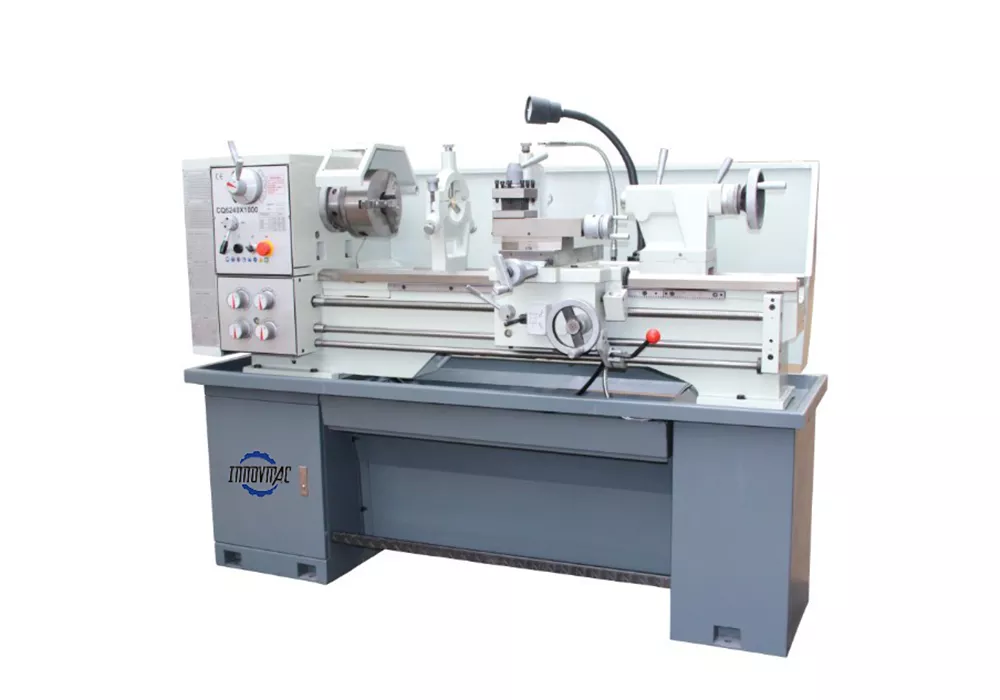

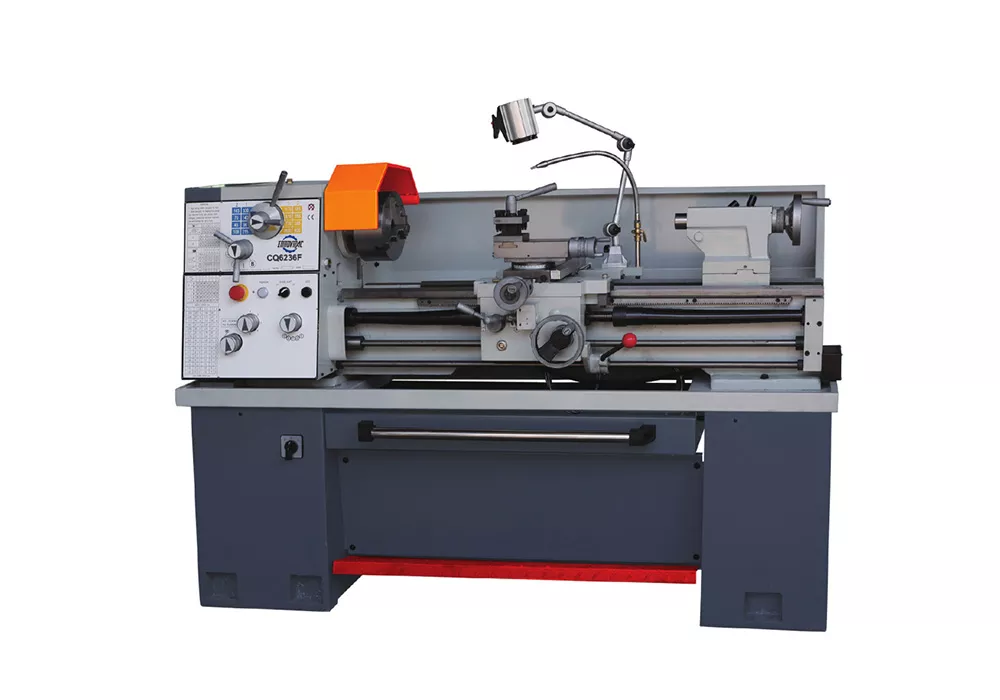

Swing over bed

Φ360mm（14 11/64"）

Φ400mm(15 3/4")

Swing over cross slide

Φ210mm(8 1/4")

Φ250mm(10")

Swing in gap(D×W)

480mm×100mm

520mm×100mm

Height of center

180mm(7 3/32")

200mm(7 7/8")

Distance between centers

1015mm

1015mm

Width of bed

218mm(8 9/16")

218mm(8 9/16")

Max. section of cutting tool

20mm×20mm

20mm×20mm

Total travel of cross slide

230mm

230mm

Total travel of top slide

120mm

120mm

Spindle bore

Φ52mm(2 3/64")

Φ52mm(2 3/64")

Spindle nose

D5

D5

Spindle morse taper in nose,in sleeve

M.T.#6/M.T.#4

M.T.#6/M.T.#4

Spindle speeds number

2×9 (18)

2×9 (18)

Spindle speeds range

65-1800 R.P.M

65-1800 R.P.M

Leadscrew diameter&thread

24mm×4 T.P.I or pitch 6mm

24mm×4 T.P.I or pitch 6mm

Threads imperial pithches

4-60 T.P.I

4-60 T.P.I

Threads metric pithches

0.4-7mm

0.4-7mm

Longitudinal feeds(imperial/metric)

0.0021"-0.0508"/0.0527mm-1.2912mm

0.0021"-0.0508"/0.0527mm-1.2912mm

Cross feeds(imperial/metric)

0.00043"-0.0109"/0.011mm-0.276mm

0.00043"-0.0109"/0.011mm-0.276mm

Total travel of tailstock quill

110mm

110mm

Tails stock quill

Φ52mm(2 1/64")

Φ52mm(2 1/64")

Taper tailstock quill

M.T.#4

M.T.#4

Spindle drive motor

2.0HP

2.0HP

Coolant pump motor

4/75HP(40W)

4/75HP(40W)

Machine dimension

overall package 1830mm×770mm×1280mm
split package 1830mm×770mm×680mm

Overall package 1830mm×770mm×1300mm
split package 1830mm×770mm×700mm

Packing dimension

overall package 1940mm×890mm×1545mm
split package 1940mm×890mm×1045mm

overall package 1940mm×890mm×1545mm
split package 1940mm×890mm×1045mm

N.W

overall package 680KG
split package 600KG

overall package 760KG
split package 670KG

G.W

overall package 790KG
split package 700KG

overall package 840KG
split package 800KG
