Precision ground and supersonic frequency hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel, ground and hardened.
Spindle speed range 70-2000RPM.
Sealed and easy operating feed box has various feeds and threads cutting functions.

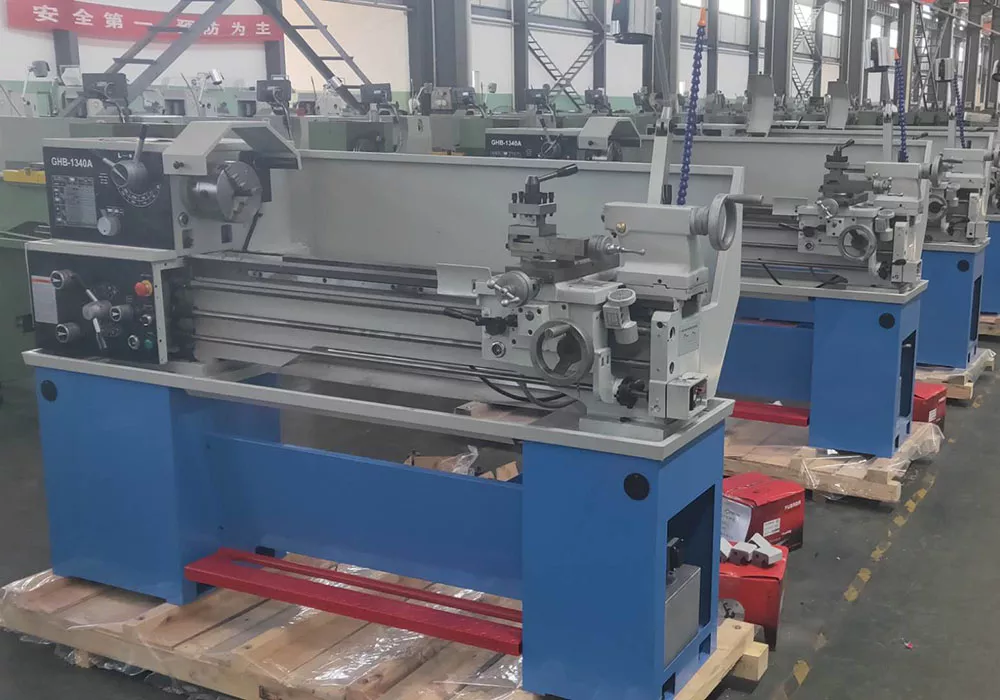

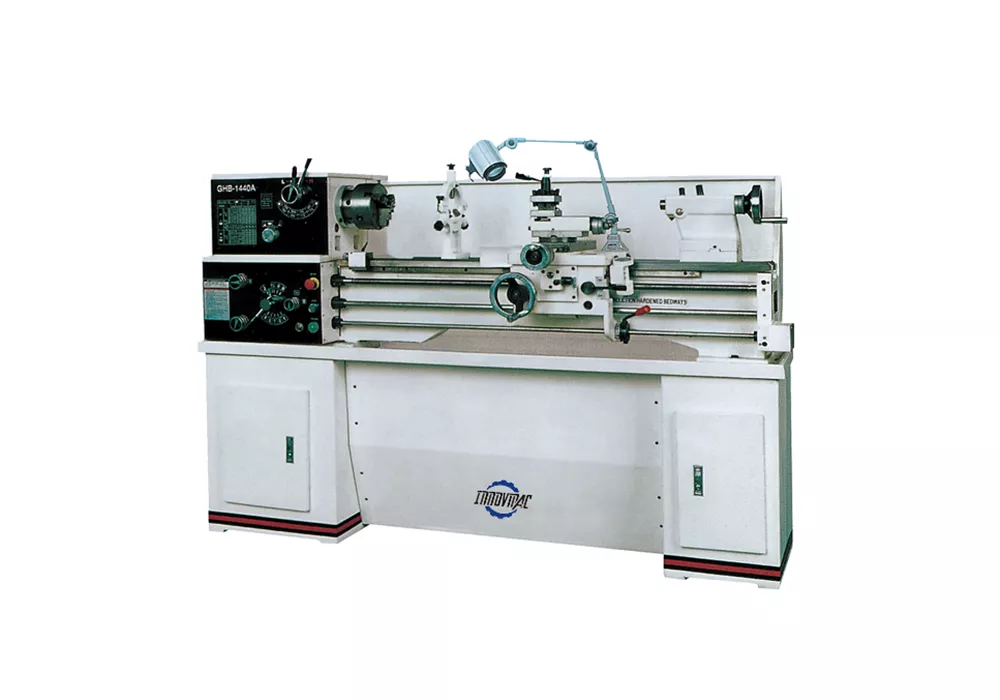

ITEMS |
GHB-1340A |
GHB-1440A |
|
Max. swing over bed |
330mm |
360mm |
|
Max. swing in gap |
476mm |
506mm |
|
Max. swing over slide |
200mm |
215mm |
|
Bed width |
187mm |
|
|
Max. length of workpiece |
1000mm |
|
|
Spindle nose |
D1-4 |
|
|
Spindle bore |
Φ38mm |
|
|
Taper of bore in spindle |
MT-5 |
|
|
Spindle speed steps |
8 |
|
|
Spindle speed scope |
70～2000 r/min |
|
|
Inch thread |
3-1/2-80T.P.I/38 |
|
|
Metric thread |
0.45～10mm/23 |
|
|
Longitudinal feed range |
0.0018"～0.0374" |
|
|
Cross feed range |
0.0006"～0.0130" |
|
|
Max. travel of tailstock quill |
95mm |
|
|
Taper bore of tailstock quill |
MT-3 |
|
|
Main motor |
2HP(1.5KW),1HP |
|
|
Net weight / Gross weight |
524/620Kg |
550/680kg |
