Hardened and ground bed ways.
12 speeds all geared head stock.
3HP(2.4kW)three phase motor.
Foot brake giving rapid braking.
Emergency stop button equipped on the front of headstock.
Jog button for easy gear engagement and inching spindle.
Extra safety switch shuts down machine automatically for changing belt or gear for threading cutting.

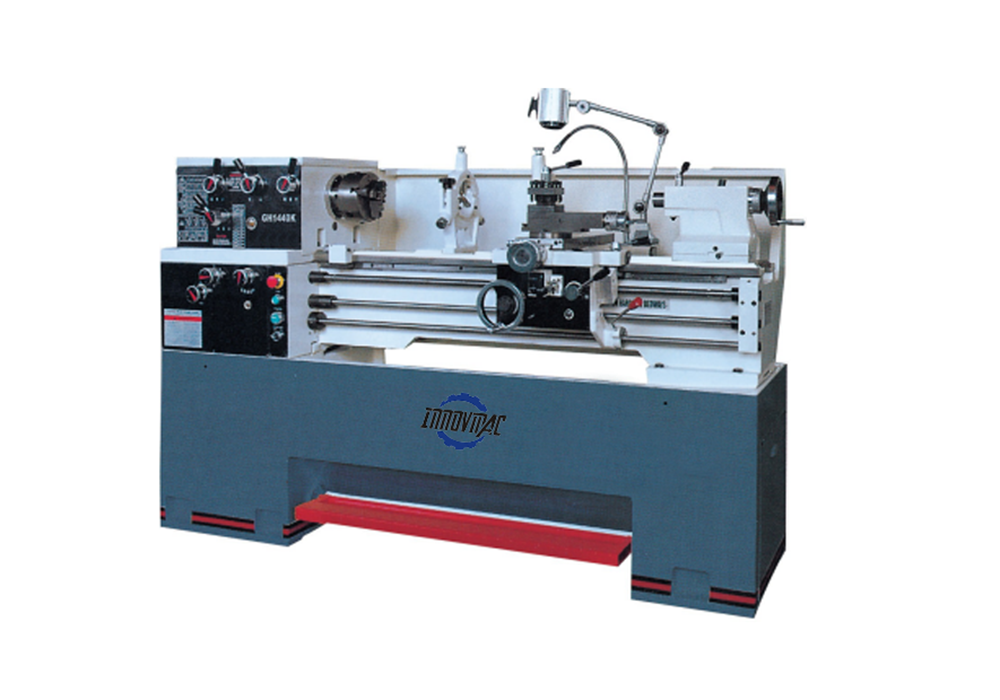

Model | GH-1440K(CQ6236) | ||
General capacity | Max. swing over bed | mm | Φ356（14") |
Max. swing over slide | mm | Φ210(8-1/5") | |
Max. swing in gap | mm | Φ508（20") | |
Width of bed | mm | 260(10-1/5") | |
Max. Length of workpiece | mm | 750(30")/1000(40") | |
Main spindle | Taper of spindle bore | M.T.No.5 | |
Diameter of spindle hole | mm | Φ40(1-1/2") | |
Number of spindle speeds | 12 | ||
Range of spindle speeds | 40-1800 | ||
Spindle nose | D1-4 | ||
Threading & Feeding | Metric pitch threads | mm | 0.4-7(37kinds) |
0.45-7.5(23kinds) | |||
Whit-worth threads | TPI | 4-56(28kinds) | |
4-112(40kinds) | |||
Range of longitudinal feeds | mm | 0.043-0.653(0.0012"-0.0294"rev) | |
Range of cross feeds | mm | 0.024-0.359(0.0004"-0.0103"rev) | |
Leadscrew | Diameter of leadscrew | mm | Φ22(7/8") |
Pitch threads of leadscrew | mm | 4mm or 8T.P.I | |
Tailstock | Travel of tailstock quill | mm | 120(4-3/4") |
Diameter of tailstock quill | mm | Φ45(1-25/32") | |
Taper hole of tailstock quill | M.T.No.3 | ||
Power | Power of main motor | 2.4Kw(3HP),3Ph,4P,60Hz,230V | |
Coolant pump motor power | kW | 0.04(0.055HP) | |
Overall dimensions (L×W×H) | mm | 1900×710×1170 | |
Packing size of lathe (L×W×H) | mm | 1900×760×1435 | |
Net weight | kg | 1250(2750 lbs) | |
Gross weight | kg | 1380(3040 lbs) | |
