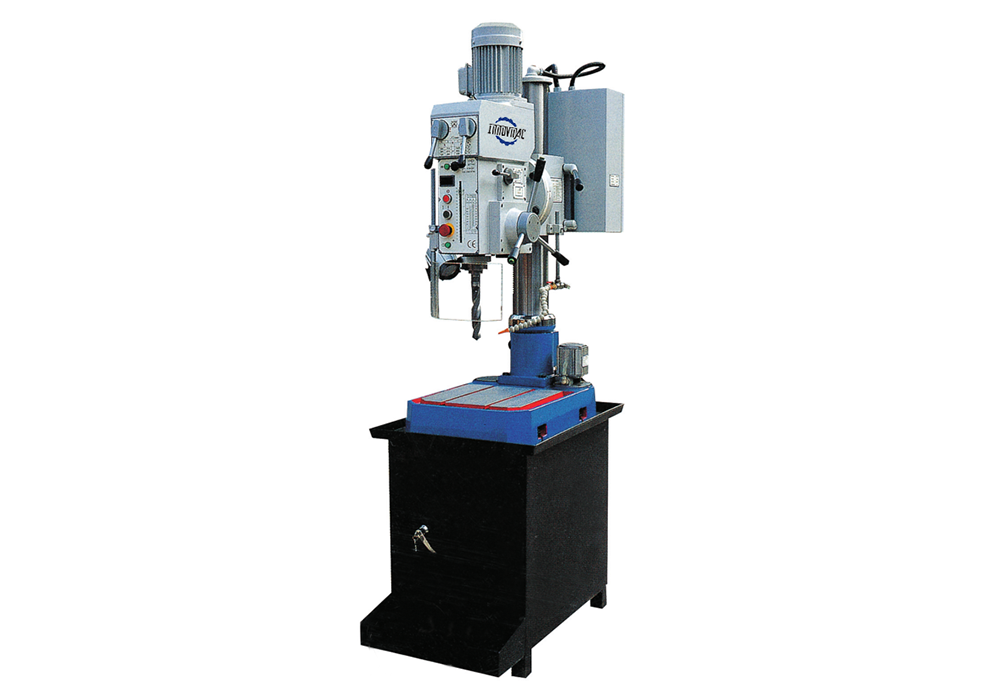

1.3-phase with two voltage for 220v-575v collocation.
2.all main parts are made with quality cast iron
3.Gear shill
4.Thin oil lubrication is available for drilling diameter 40mm and 50mm,grease lubrication is available for others.
5.Spindle box of ZN5025,ZN5030B,ZN-32 could be moved up and down.
6.Worktable could be rotated and could be inclined ±45°(not including ZN5025,ZN-32 and bench drilling machine)
7.Supenrior quality of gears with hardened and tapped gears of surface
8.Importable electrical components with CE,CSA and UL standard.
9.Supply tachometer,depth gauge and elevating motor of ZN5040B,ZN5040A,ZN5050B,ZN5050A.It as special order.
10.The model of machines with A is electromagnetic clutch transmission feed,with B is mechanical feed.without A and B is manual feed.
Model | ZN4025 | ZN4030/ZN4030B | ZN4035/ZN4035A/ZN4035B |
Max drilling diameter and tapping diameter | Φ25/M16 | 30/M20 | 35/M22 |
Max travel of spindle | 110 | 135 | 160 |
Max distance from spindle to generating line of cloumn | 240 | 260 | 320 |
Max distance from spindle end to surface of base worktable | 650 | 700 | 645 |
Max travel of spindle box | 500 | 520 | 515 |
Spindle taper bore | 3 | 3 | 4 |
Spindle speed steps | 6 | 12 | 12 |
Spindle speed range | 125-2825 | 125-3030 | 125-3030 |
Spindle feed steps | 3 | 3 | |
Spindle feed range | 0.1-0.3 | 0.1-0.3 | |
Dimension of worktable | |||
Effective working area of worktable | 310x320 | 335x340 | 400x360 |
Diameter of column | Φ95 | Φ110 | Φ120 |
Power of motor | 0.75 | 0.85/1.1 | 1/1.2 |
Machine dimension | 740x500x1500 | 740x420x1610 | 810x460x1640 |
Packing dimension | 820x620x2250 | 820x620x2270 | 820x620x2290 |
N/G weight | 230/280 | 315/360 | 340/385 |
Model | ZN5025 | ZN5030/ZN5030B | ZN5032/ZN5032A/ZN5032B | ZN-32 | ZN5035/ZN5035A/ZN5035B | ZN5040A/ZN5040B | ZN5050A/ZN5050B |
Max drilling diameter and tapping diameter | Φ25/M16 | Φ30/M20 | Φ32/M22 | Φ35/M22 | Φ35/M22 | Φ40/M24 | Φ50/M27 |
Max travel of spindle | 110 | 135 | 160 | 150 | 160 | 190 | 200 |
Max distance from spindle to generating line of cloumn | 240 | 260 | 320 | 300 | 320 | 340 | 360 |
Max distance between spindle end to the wortable surface | 630 | 670/685 | 630 | 800 | 585 | 665 | 590 |
Max distance from spindle end to surface of base worktable | 1100 | 1150/1165 | 1185 | 125 | 1140 | 1195 | 1175 |
Max travel of spindle box | 250 | 180(ZN5030B) | 285 | 270 | |||
Max travel of worktable and bracket/manual/mechanical | 450 | 605/500 | 415 | 550 | 545 | 570(450) | 530(410) |
Swivel angle of worktable | ±45° | ±45° | ±45° | ±45° | ±45° | ||
Spindle taper bore | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
Spindle speed steps | 6 | 12 | 12 | 12 | 12 | 12 | 12 |
Spindle speed range | 125-2825 | 125-3030 | 125-3030 | 78-2500 | 125-3030 | 76-2065 | 52-1400 |
Spindle feed steps | 3 | 3 | 3 | 3 | 4 | ||
Spindle feed range | 0.1-0.3 | 0.1-0.3 | 0.1-0.3 | 0.1-0.3 | 0.1-0.4 | ||
Dimension of worktable | 350x400 | 420x350 | 500x420 | TTX190² | 500x420 | 520x440 | 580x460 |
Effective working area of worktable | 310x320 | 335x340 | 400x360 | 365x415 | 400x360 | 405x395 | 445x435 |
Diameter of column | Φ95 | Φ110 | Φ120 | Φ120 | Φ140 | Φ160 | |
Power of motor | 0.75 | 0.85/1.1 | 1/1.2 | 1/1.3/1.7 | 1/1.2 | 1.5 | 2.2 |
Machine dimension | 700x500x1900 | 700x460x2250 | 835x500x1960 | 835x510x1730 | 835x510x1730 | 849x545x2290 | 940x680x2405 |
Packing dimension | 830x530x1950 | 870x550x2220 | 960x580x2080 | 940x570x2120 | 940x545x2290 | 1000x650x2220 | 1170x680x2300 |
N/G weight | 300/350 | 340/380 | 500/555 | 430/475 | 430x475 | 565/615 | 565/615 |
