• Drilling, tapping, boring, reaming ；
•Strong column,Vice table,Gear drive, lower noise；
•Heavy-duty tapered roller bearing spindle,Positive spindle lock
The Drilling Machine Z5035 Z5040 is equipped with:Auto spindle power down feeder,cooling system,Working light,Big Viceworktable,2step motor with 12 steps speed which can improve the machining accuracy and producing efficiency
• Drilling, tapping, boring, reaming ；
•Strong column,Vice table,Gear drive, lower noise；
•Heavy-duty tapered roller bearing spindle,Positive spindle lock
Standard accessories:
Draw bar
Adapter
Taper shank for drilling chuck
Drilling chuck
Arbor
T slot bolt
Washer
Nut
Tilted wedge
Spanner
Oil gun

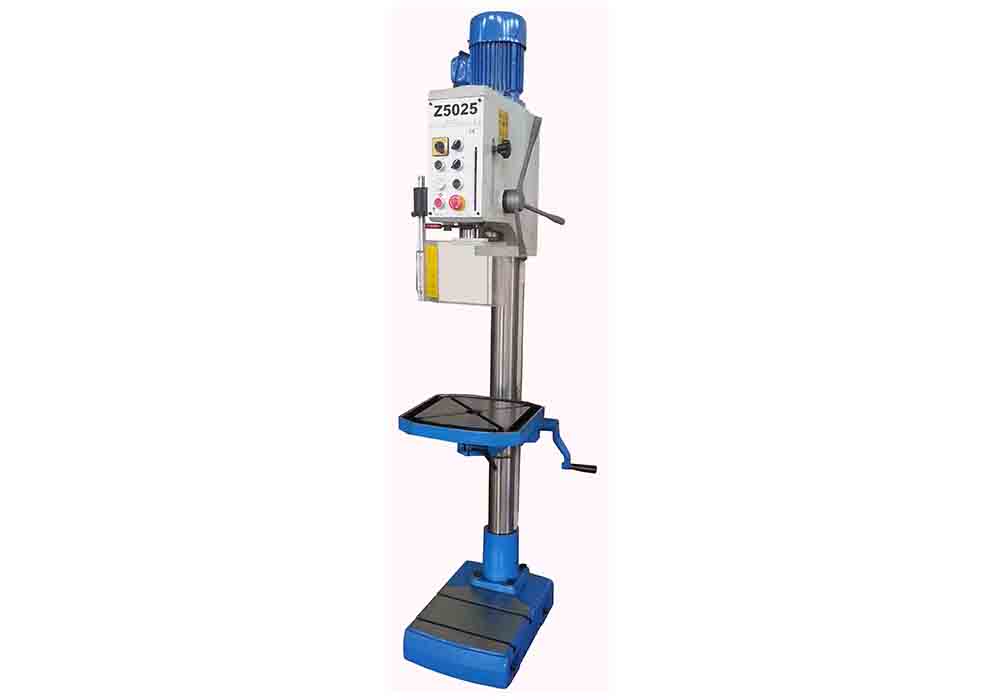

Model | Z5025 | Z5030 | Z5032 |
Max.drilling capacity(iron/steel) | 28/25mm | 35/30mm | 35mm |
Max.tapping capacity(iron/steel) | 22/18mm | 22/20mm | 22/20mm |
Spindle taper | MT3 | MT3/MT4/R8/ISO30 | MT4 |
Worktable size | 380×380mm | 540×470mm | 460×460mm |
Dimensions of base | 535×360mm | 650×450mm | 620×540mm |
Spindle travel | 130mm | 130mm | 160mm |
Distance spindle center to column surface | 250mm | 275mm | 300mm |
Spindle nose to worktable | 825mm | 715mm | 720mm |
Spindle nose to base | 1220mm | 1180mm | 1200mm |
Column diameter | 98mm | 115mm | 125mm |
Spindle speeds range | 12steps:75~3200rmp | 6steps:60Hz 90~1970rmp 50Hz 75~1600rmp | 12steps:75~3200rmp |
Motor | 1.1/0.85kw | 1.1kw | 1.5/1.1kw |
N．W/G.W | 210/250KG | 320/380KG | 350/400KG |
Packing size(L×W×H) | 2100×400×680mm | 740×720×1830mm | 2200×540×750mm |
20’ Container Q’ty | 42 sets | 24 sets | 24 sets |
Model | Z5035 | Z5040 | Z5050 |
Max.drilling capacity(iron/steel) | 40/35mm | 40mm | 60/50mm |
Max.tapping capacity(iron/steel) | 24/22mm | 24/20mm | 33mm |
Spindle taper | MT3/MT4/R8/ISO30 | MT4 | MT4 |
Worktable size | 500×360mm | 560×560mm | 600×500mm |
Dimensions of base | 670×470mm | 730×500mm | 940×580mm |
Spindle travel | 130mm | 180mm | 160mm |
Distance spindle center to column surface | 320mm | 350mm | 210mm |
Spindle nose to worktable | 685mm | 770mm | 350mm |
Spindle nose to base | 1140mm | 1210mm | 700mm |
Column diameter | 125mm | 150mm | 1290mm |
Spindle speeds range | 12steps:75-3200r/min | 12steps:50-1450rpm | 6steps:60Hz 60~1810 50Hz 50~1510 |
Motor | 1.5kw | 0.75/1.5kw | 3kw |
N．W/G.W | 430/480KG | 550/600KG | 830/880KG |
Packing size(L×W×H) | 570×810×2110mm | 950×1080×2270mm | 660×1062×2134 mm |
20’ Container Q’ty | 28 sets | 20 sets | 15 sets |
