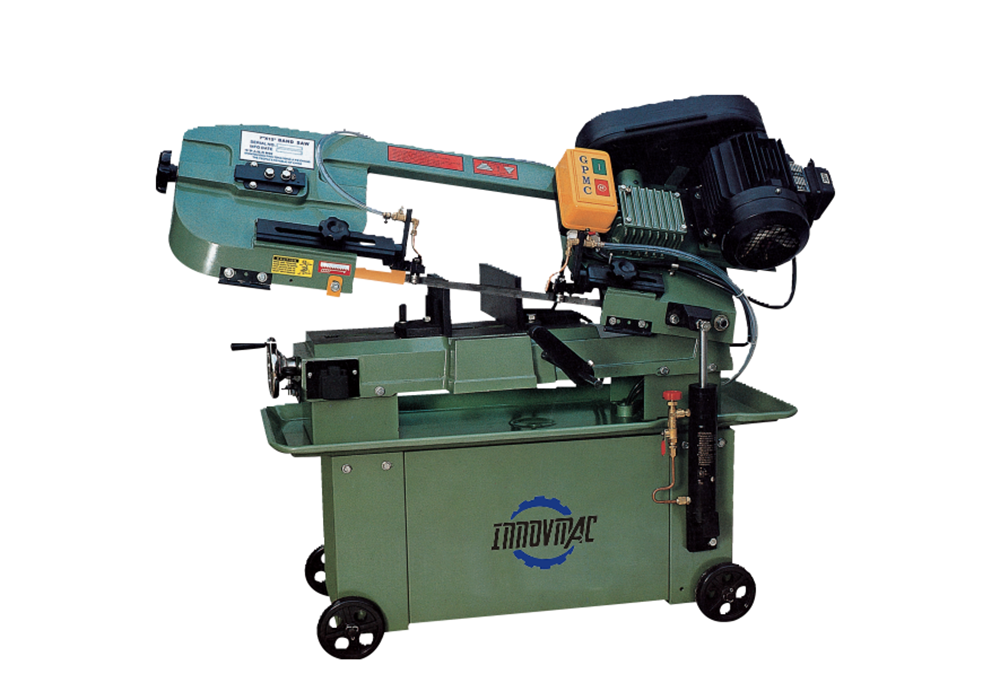

Band Saw Machine
Model | GB712 | GB916 |
Cutting capacity | 7(178mm)-7"x12"(178x305mm) | 9"(230MM)16'-80x408mm |
Blade size | (19x0.9x2360mm) | 25x0.9x3035mm |
Blade speeds | (26-4--54-79m/min) 4steps | 60HZ:25,40,51,71rpm 50HZ:20,33,43,59rpm |
Motor | 0.75kw 50HZ:1420rpm 60HZ:1725rpm | 1.5kw 50HZ:1420rpm/min 60HZ:1725rpm/min |
Machine dimension(LxWxH) | 1258x445x1000mm | 1625x570x1050mm |
Weight | 145/175kgs | 280/350kgs |
Model | GB712 | GB916 |
Cutting capacity | 7(178mm)-7"x12"(178x305mm) | 9"(230MM)16'-80x408mm |
Blade size | (19x0.9x2360mm) | 25x0.9x3035mm |
Blade speeds | (26-4--54-79m/min) 4steps | 60HZ:25,40,51,71rpm 50HZ:20,33,43,59rpm |
Motor | 0.75kw 50HZ:1420rpm 60HZ:1725rpm | 1.5kw 50HZ:1420rpm/min 60HZ:1725rpm/min |
Machine dimension(LxWxH) | 1258x445x1000mm | 1625x570x1050mm |
Weight | 145/175kgs | 280/350kgs |
