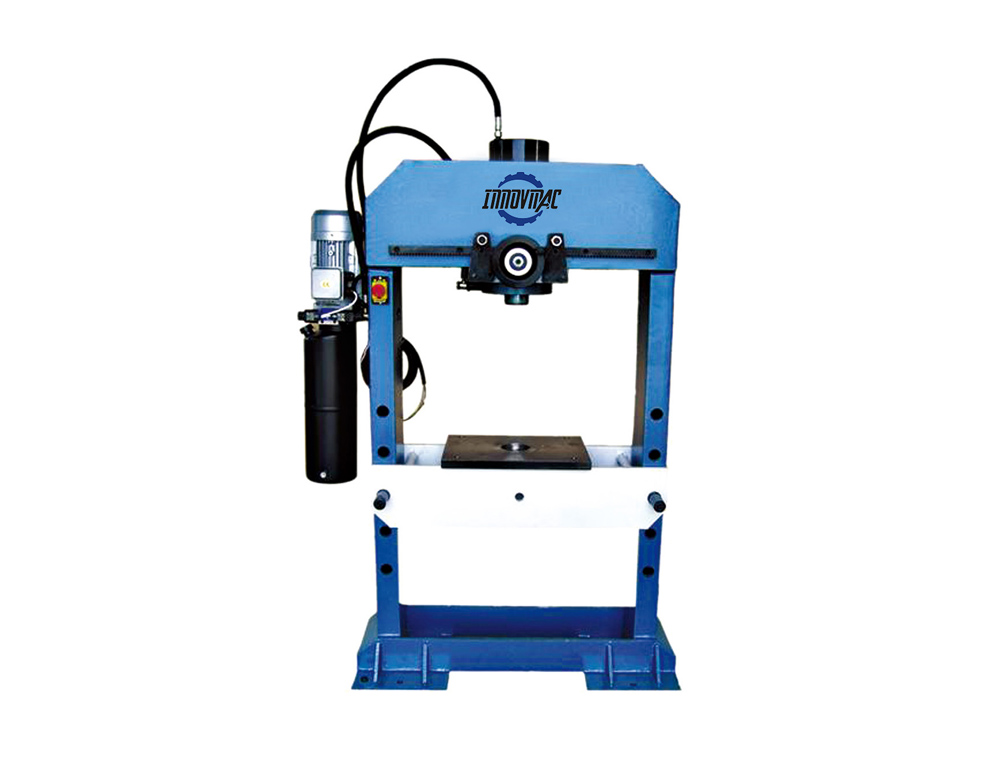

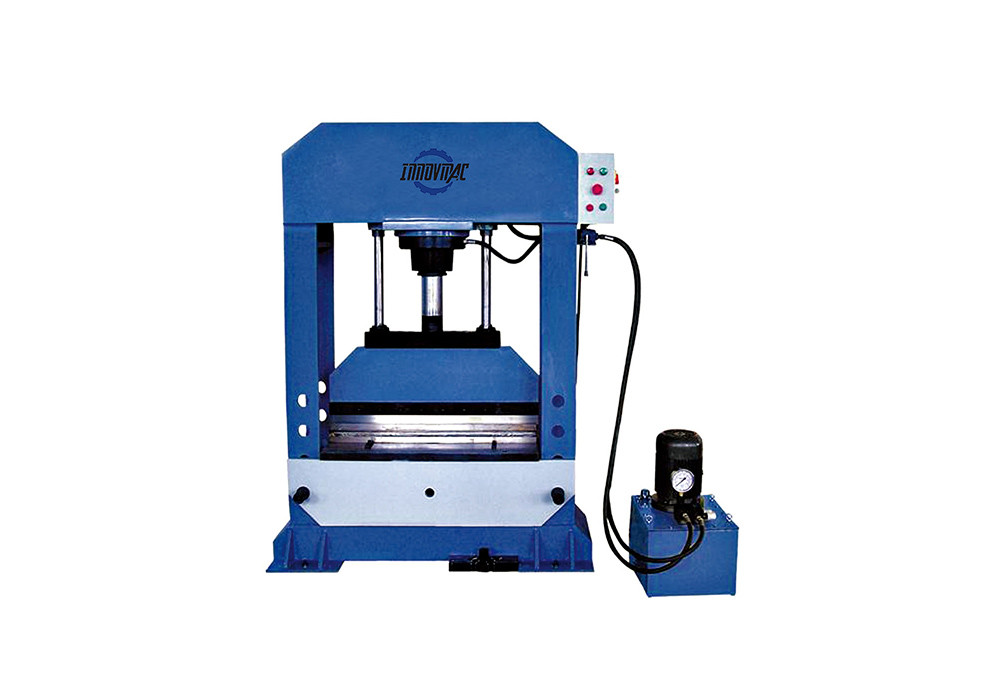

HP(HPB) series hydraulic press(bending machine) are used for assembling, dismantling, alignment,calendaring, tension, bending and punching.The machine supplied oil by Italy CNK and CBZ pump. It could save 60% energy compared with the traditional model. The efficiency increased to 2-3 times. It takes the advantages of small volume, high pressure, simple structure and light weight.
The worktable could do up-down movement, so made the machine easy operation.
MODEL | HP-30 | HP-50 | HP-63 | HP-100 | HP-150 |
HPB-30Z | HPB-50Z | HPB-1010Z | HPB-150Z | ||
Capacity（KN） | 300 | 500 | 630 | 1000 | 1500 |
Pressure（Mpa） | 25 | 25 | 30 | 30 | 45 |
Travel（mm） | 300+270 | 220+405 | 220+405 | 250+405 | 250+405 |
Table size（ mm） | 300*400 | 400*800 | 400*800 | 460*980 | 460*980 |
Dimension（mm） | 800*350*1400 | 1350*650*1950 | 1350*650*1950 | 1850*850*2250 | 1850*850*2250 |
750*650*960 | 750*650*960 | ||||
Weight （KG） | 420/650 | 780/1100 | 820/1500 | 1120/1420 | 1450/1850 |
