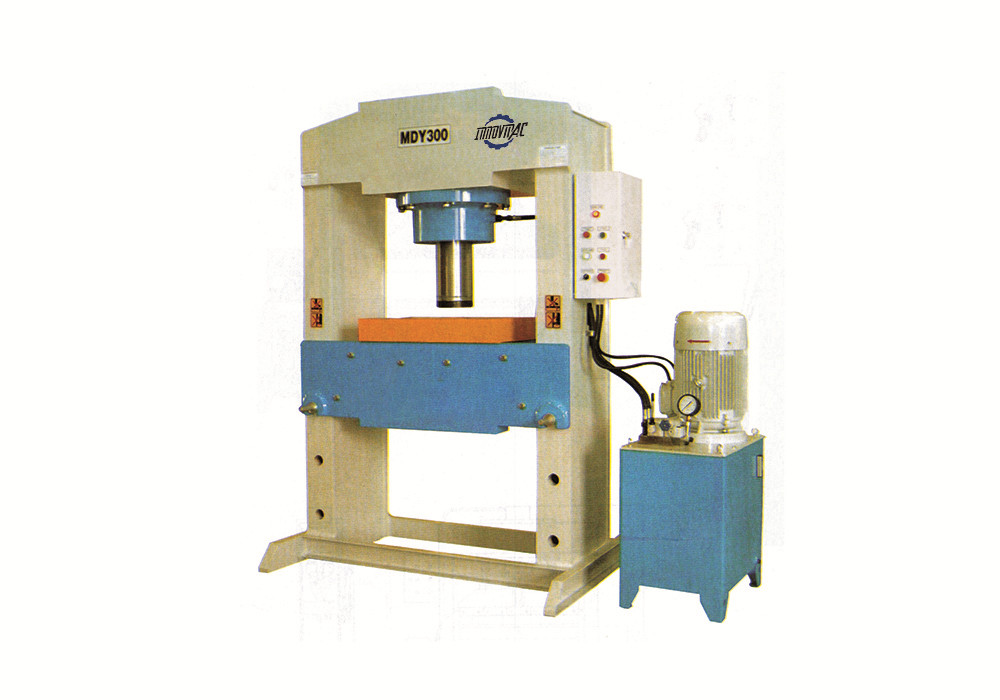

*Optimally designed steel-frame structure,is study and durable.
*Single piston double-acting hydraulic oil cylider,is durabie.
*Up stroke and down stroke ofcylider rod controlled by manual,is convenient and fiexible.
*Oil cylinder moves left and right,pressure head works at multiple points.
*Beam of work platform moves lifting device fro up to down,is convenient and easy.
Model | Max pressure(Kn) | Hydraulic pressure(Mpa) | Stroke of cylinder rod(mm) | Working speed(mm/s) | Size of worktable(mm) | Worktable adjustment(mmxn) | Motor power(kw) |
MDY30/25 | 300 | 25 | 250 | 5/h6 | 500x320/hole 100 | 200x4 | 1.5 |
MDY50/25 | 500 | 30 | 250 | 4/h5 | 550x350/hole 120 | 230x3 | 2.2 |
MDY63/30 | 630 | 30 | 300 | 5.8/h7.7 | 600x385/hole 120 | 250x3 | 4 |
MDY80/30 | 800 | 30 | 300 | 4.6/h6.1 | 640x395/hole 130 | 250x3 | 4 |
MDY100/35 | 1000 | 30 | 350 | 7.6/h10.5 | 650x440/hole 150 | 250x3 | 7.5 |
MDY150/35 | 1500 | 30 | 350 | 4.9/h6.7 | 700x530/hole 120 | 300x2 | 7.5 |
MDY200/35 | 2000 | 30 | 350 | 3.9/h5.8 | 750x550/hole 150 | 300x2 | 7.5 |
MDY300/35 | 3000 | 28.5 | 350 | 5.9/h8.5 | 800x650/hole 150 | 300x2 | 22 |
MDY400/35 | 4000 | 30 | 350 | k15.5/m3.4/h25.4 | 1000x700/hole 150 | fixed | 15(variable pump station) |
MDY500/35 | 5000 | 30 | 350 | k12.2/m2.7/h19.9 | 1190x760/hole 180 | fixed | 15(variable pump station) |
MDY600/35 | 6000 | 30 | 350 | k9.9/m2.3/h16.8 | 1190x880/hole 180 | fixed | 15(variable pump station) |
Model | A | B | C | D | E | I | Pump station | Mass(KG) |
MDY30/25 | 1310 | 700 | 1885 | 700 | 1040 | 302 | 500X310 | 410 |
MDY50/25 | 1440 | 800 | 1965 | 800 | 1075 | 336 | 500X310 | 560 |
MDY63/30 | 1570 | 900 | 2050 | 900 | 1015 | 404 | 500X310 | 860 |
MDY80/30 | 1730 | 950 | 2070 | 1050 | 965 | 404 | 500X310 | 1040 |
MDY100/35 | 1425 | 1000 | 2210 | 1050 | 1040 | 515 | 580X440 | 1410 |
MDY150/35 | 1502 | 1070 | 2210 | 1100 | 965 | 553 | 580X440 | 1830 |
MDY200/35 | 1685 | 1100 | 2210 | 1250 | 850 | 590 | 580X440 | 2530 |
MDY300/35 | 1680 | 1200 | 2535 | 1250 | 995 | 740 | 650X550 | 3600 |
MDY400/35 | 1700 | 1240 | 2585 | 1250 | 995 | 750 | 900X550 | 4750 |
MDY500/35 | 1810 | 1200 | 2700 | 1250 | 880 | 760 | 900X550 | 5700 |
MDY600/35 | 1810 | 1320 | 2775 | 1250 | 880 | 780 | 900X550 | 6800 |
