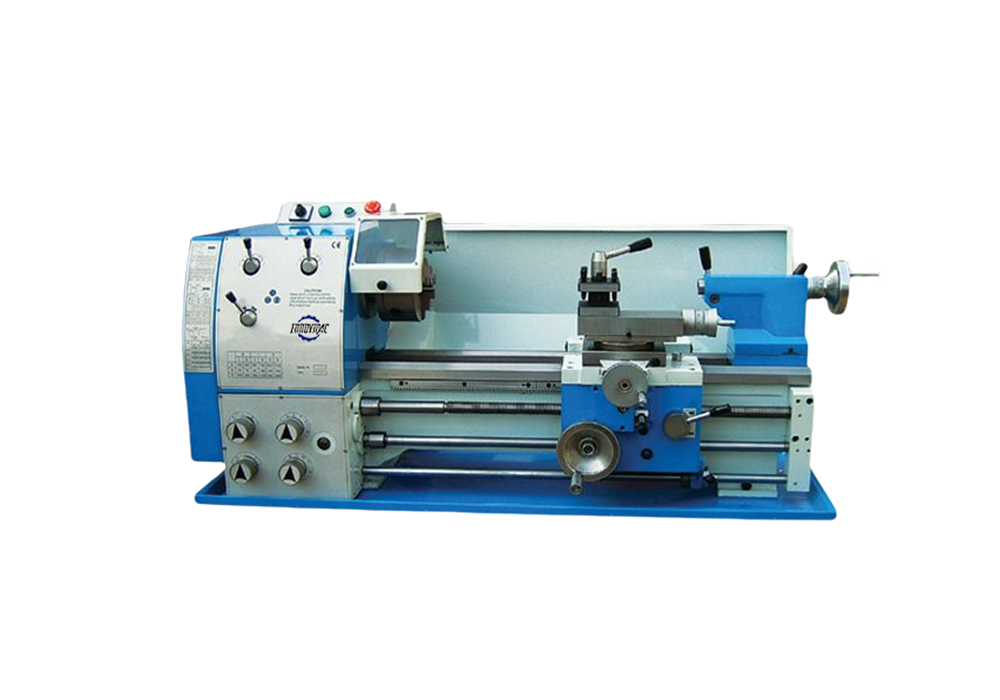

Bench Lathe
Standard accessories：
Toolbox &tools
Drawbar
Arbor
Optional accessories:
Four-Jaw Chuck
Follow Rest
Steady Rest
Face Plate
Rolling Center
Stand
Cutter
Back plate
Splash Guard
Chip Tray
Model | BVB25 |
Distance between centers | 450mm/700mm |
Swing over bed | 250mm |
Swing over cross slide | 140mm |
Taper of spindle bore | MT4 |
Spindle bore | 27mm |
Range of spindle speeds | 115-1620rpm |
Range of inch threads | 8-56T.P.I |
Range of metric threads | 0.2 -3.5mm /r |
Taper of tailstock quill | MT3 |
Taper of spindle bore | MT3 |
Spindle stroke | 80mm |
Step of spindle speeds | 4 |
Range of spindle speeds | 400-1600rpm |
Head stroke | 240mm |
Head tilt | ± 9 0 ° |
Motor | 750W |
Packing size | 1510 × 670 × 920mm |
Net weight | 245kg / 265kg |
