Precision ground and supersonic frequency hardened bed ways.It features with high accuracy and well-resisting.
The spindle is supported with precision roller bearing.
Safety magnetic switch or lock key switch .The width of bed ways is up to 180mm,providing superbrigidity.

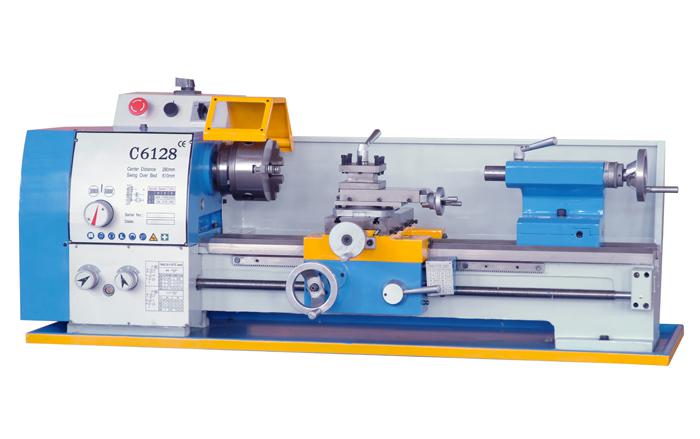

Model | C6128Bx610/C6128Vx610 |
Max. swing over bed | Φ280mm |
Max. swing over cross slide | Φ150mm |
Distance between centers | 610mm |
Width of bed | 180mm |
Spindle bore | Φ26mm |
Taper of spindle bore | M.T.#4 |
Range of spindle speeds | C6128B:125-2000rpm |
Taper of tailstock quill | M.T.#3 |
Metric threads can be cut | 0.1-3.5mm |
Inch threads can be cut | 8-35TPI |
Range of longitudinal feeds | 0.1-0.25mm/rev |
Max. travel of cross slide | 110mm |
Max. travel of top slide | 70mm |
Max.travel of tailstock quill | 80mm |
Motor power | 750w/1.0kw |
Packing size(L*W*H) | 1320mm×650mm×610mm |
N.W/G.W | 218kg/258kg |
Foot stands(L*W*H) | 280mm×390mm×600mm |
Foot stands(N.W/G.W) | 52kg/56kg |
