◆ Precision ground hardened bedways
◆ The spindle is supported wish precision roller bearings
◆ Headstock gears are made of high quality steel, ground and hardened
◆ Removable gap is provided for larger diameter work
◆ Easy operation speed change levers
◆ Spindle speed range 70～2000r/min
◆ Two different length beds are available
◆ Easy operating gear box has various feeds and thread cutting function
◆ D1-4 camlock spindle nose

Standard accessories:

• ·Reduction sleeves 5/3#

• ·Center MT3#(Dead Center, Alloy

• · jaw chuck

• · Chip tray

• · Splash guard

• · Tool box & tolls 1 set

Optional accessories:

• ·4 jaw chuck (200mm)

• ·Face plate

• ·Driving plate

• ·Quick change tool post

• ·Steady rest

• ·Follow rest

• ·Brake

• ·Coolant system

• ·Taper turning

• ·Live center

• ·Drill chuck

• ·Chuck cover

• ·Tool post cover

• ·Leadscrew cover

• ·Work light

• ·Stopper

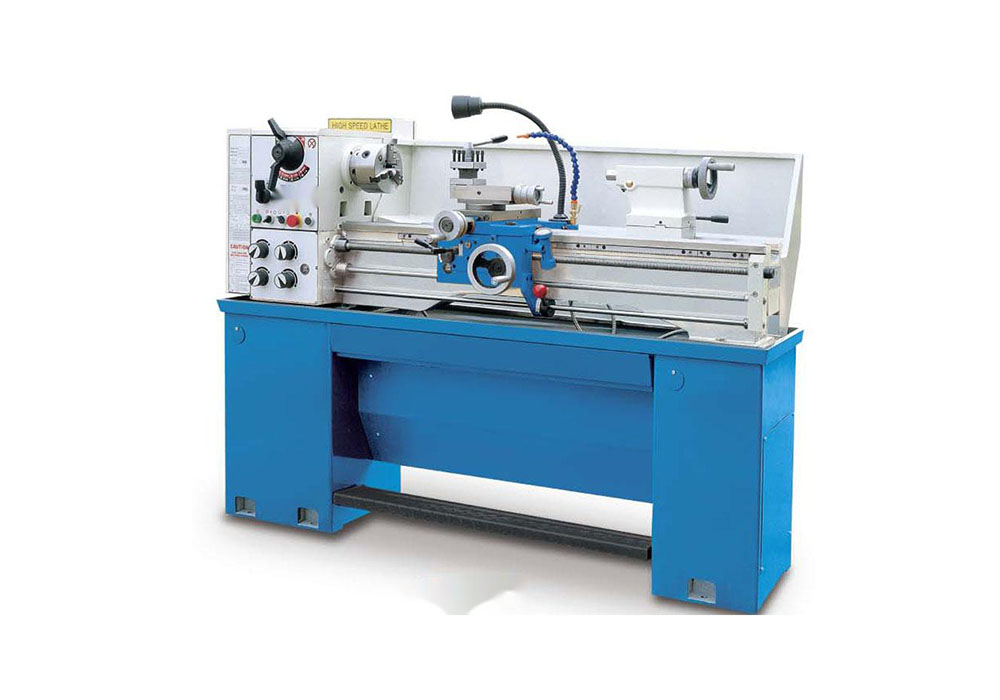

Models

C0632A

C0636A

Swing over bed

330mm(13")

360mm(14")

Swing over cross slide

198mm(7-25/32")

224mm(8-13/16")

Swing in gap diameter

476mm(18-3/4")

502mm(19-3/4")

Swing in length

210mm(8-1/4")

210mm(8-1/4")

Center height

166mm(6-1/2")

179mm(7")

Admits between

750mm(30")/1000mm(40")

750mm(30")/1000mm(40")

Bed width

187mm(7-3/8")

187mm(7-3/8")

Bed length

1405mm(55-5/16")/1655mm(65-1/8")

1405mm(55-5/16")/1655mm(65-1/8")

Bed height

290mm（11- 13/32"）

290mm（11- 13/32"）

Spindle bore

38mm(1-1/2")

38mm(1-1/2")

Spindle nose

D1-4"

D1-4"

Taper in nose

MT NO.5

MT NO.5

Taper in sleeve

MT NO.3

MT NO.3

Speeds number

8

8

Range of spindle speed

70-2000 r/min

70-2000 r/min

Cross slide width

130mm（5-3/32″）

130mm（5-3/32″）

Cross slide travel

170mm(6-11/16")

170mm(6-11/16")

Compound rest width

80mm(3-1/8″)

80mm(3-1/8″)

Compound rest travel

95mm(3-9/16")

95mm(3-9/16")

Lead screw diameter

22mm(7/8″)

22mm(7/8″)

Lead screw thread

8T.P.I. or 3mm

8T.P.I. or 3mm

Feed rod diameter

19mm(3/4")

19mm(3/4")

Cutting tool max section

16mm×16mm(5/8"×5/8")

16mm×16mm(5/8"×5/8")

Threads imperial pitches

34 Nos.4-56 T.P.I

34 Nos.4-56 T.P.I

Threads metric pitches

26 Nos.0.4-7 M.P

26 Nos.0.4-7 M.P

Longitudinal feeds imperial

32 Nos.0.002-0.548"/Rev

32 Nos.0.002-0.548"/Rev

Longitudinal feeds metric

32 Nos.0.052-0.392mm/Rev

32 Nos.0.052-0.392mm/Rev

Cross feeds imperial

32 Nos.0.007-0.0187"/Rev)

32 Nos.0.007-0.0187"/Rev

Cross feeds metric

32 Nos.0.014-0.380mm/Rev

32 Nos.0.014-0.380mm/Rev

Quill diameter

32mm(1-1/4")

32mm(1-1/4")

Quill travel

100mm(3-15/16")

100mm(3-15/16")

Quill taper

MT NO.3

MT NO.3

For main motor

2HP, 3PH or 2PH, 1PH

2HP, 3PH or 2PH, 1PH
