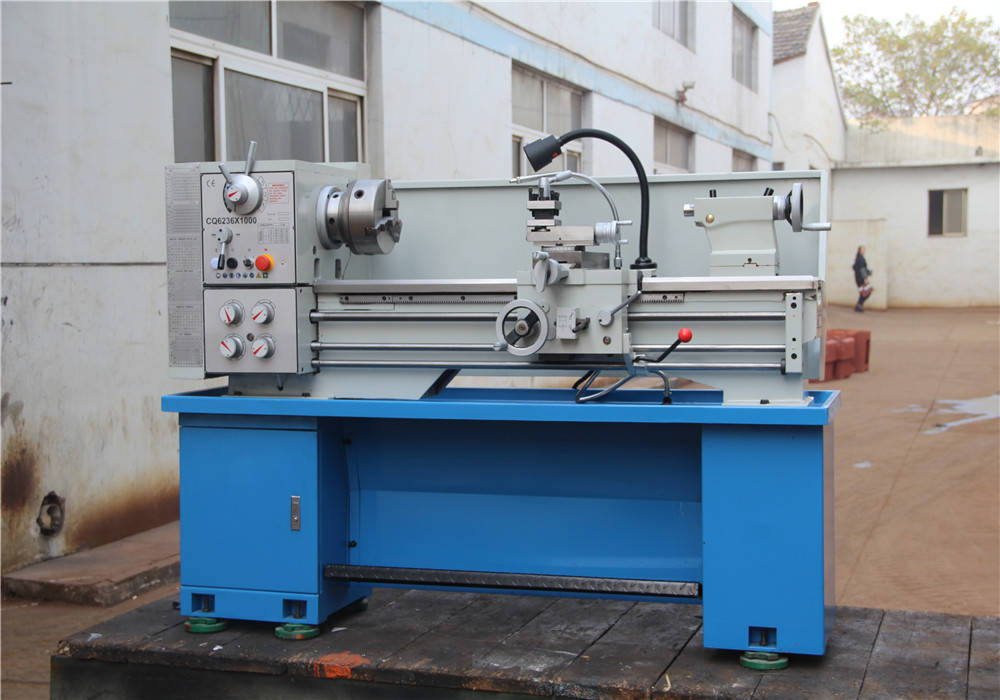

Bench Lathe
Precision ground and supersonic frequency hardened bed ways.
The spindle is supported with precision roller bearing.
Strong power motor suited for heavy duty cutting.
Model | CQ6230A | CQ6230A-1 | CQ6230A-2 |
Max.swing over bed | Φ310mm | ||
Max.swing over cross slide | Φ180mm | ||
Max. swing over gap | Φ450mm | ||
Distance between centers | 750mm/910mm | ||
Width of bed | 181mm | ||
Spindle bore | Φ38mm | ||
Taper of spindle bore | M.T.#5 | ||
Range of spindle speeds | 65-1810(1400)rpm | ||
Taper of tailstock | M.T.#3 | ||
Metric threads can be cut | 0.4-7mm | ||
Inch threads can be cut | 4-60 T.P.I. | ||
Range of longitudinal feeds | 0.0527-1.2912mm/rev | ||
Range of cross feeds | 0.011-0.276mm/rev | ||
Max. travel of cross slide | 130mm | ||
Max. travel of top slide | 75mm | ||
Max. travel of tailstock quill | 100mm | ||
Motor power | 1.1KW.3PH/1.5KW.1PH | ||
