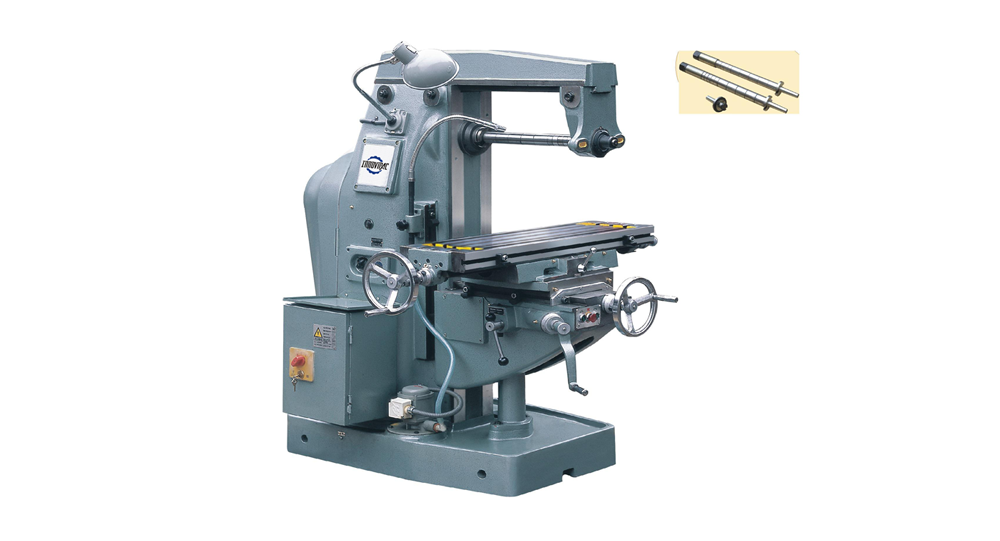

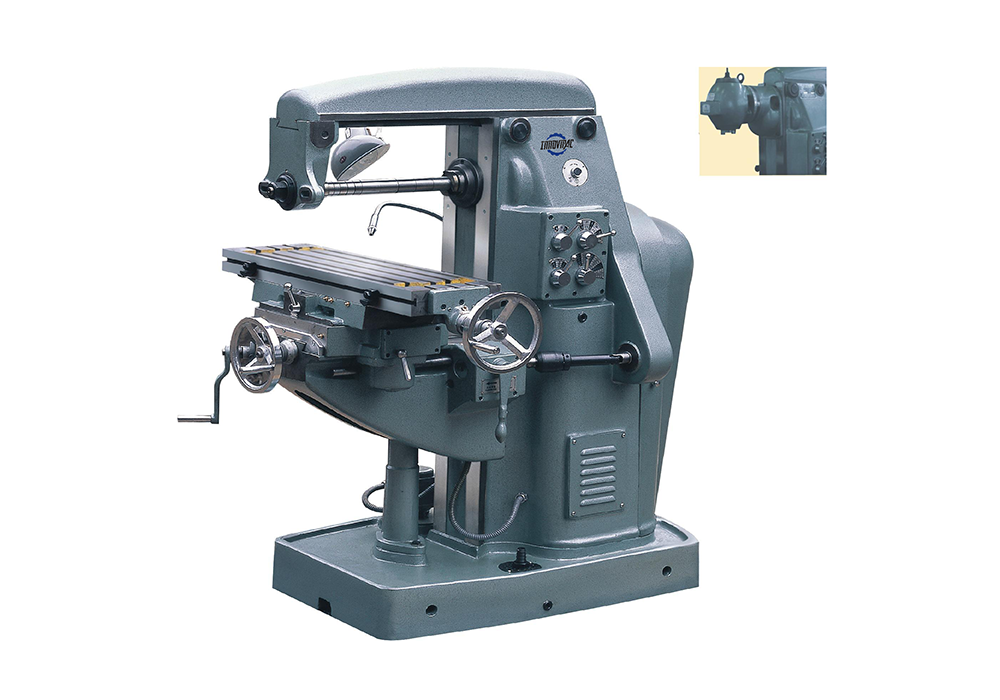

Model:X6125A/57-3C universal knee-type milling machine is a mini type machine,used for milling flat,inclined face,vertical surface and slots by employing dis cutters,angular cutter,formed cutters and face metal milling cutters.when mounted with the vertical milling attachments,the machine will be able to perform milling operations in various dirctions.when mounted with the rotary table,helix groove and ring formed can be milled.with the universal dividing head.The machine will be able to cut gear M=3mm,helical gears bevel gear etc.
Model | Unit | X6125A | 57-3C | |
Table size | mm | 250x900 | 240X810 | |
T-slt(NxWxD) | mm | 3x14x54 | 3x14x54 | |
Longitudinal travel X | mm | 500 | 480 | |
Cross travel Y | mm | 165 | 165 | |
Verticaltravel Z | mm | 300 | 300 | |
Max rotary angle of table | ±45° | ±45° | ||
Arobr diameter | mm | φ22,φ27 | φ22,φ27 | |
Min distance from spindle center to table | mm | 60-360 | 60-360 | |
Spindle hole taper | MT3/7:24 No:30 | MT3/7:24 No:30 | ||
Spindle speed steps | 12 steps | 6 steps | ||
Spindle speed ranges | r/min | 32-1250 | 31-570(H)/1250(V) | |
Distance from spindle center to arm | mm | 160 | 160 | |
Feed speed steps | 12 steps | 6 steps | ||
Feed speed range | Longitudinal X | mm/min | 5.6-181 | 7.3-111.9 |
Cross Y | mm/min | 11.3-366 | 14.9-226.3 | |
Vertical Z | mm/min | 4.5-146.2 | 6-90.4 | |
Main motor power | kw | 2/2.4 | 1.5 | |
Cooling pump power | kw | 0.12 | 0.12 | |
Cooling pump capacity | L/min | 25 | ||
Packing size | mm | 1500x1310x1760 | 1500x1310x1760 | |
Net weight | kg | 1300 | 1200 | |
