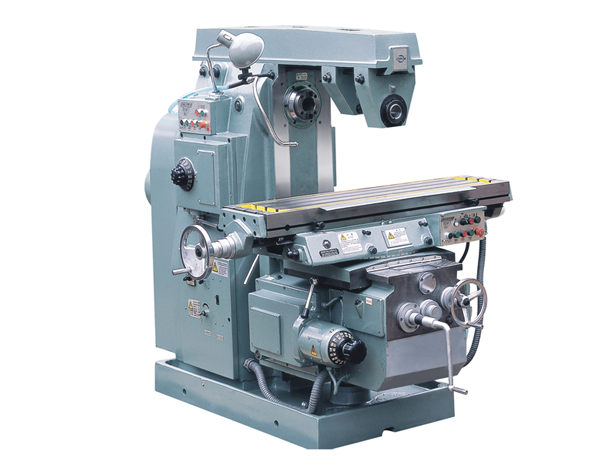

Model:X6132x16 X6132A universal knee-type milling machine has extra travel in longitudinal operateing control adopts a cantilever panel.It is suit for milling flat,inclined face,angle surface,slots by employing disc cutters,angular cutters,formed cutters and face metal milling cutters,when mounted with the indes the machine will be able to perform milling operations in gears,cutter,helix groove,cam and tub wheel.The longitudinal cross and vertical movements of the table can both be operated by hand power,and it can be rapid moved,working table and slide ways adopted quality cast hardened ensure high accuracy.

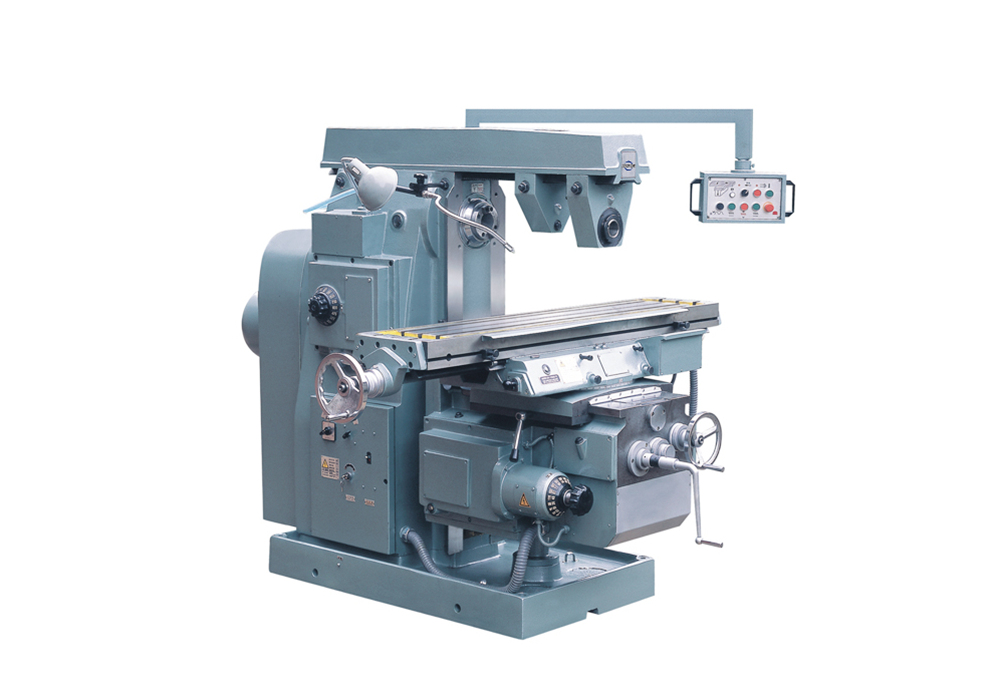

Model:X6142 universal knee-type milling machine is suit for milling flat inclined face,angle surface,slots by employing disc cutters,angular cutters,formed cutters and face metal milling cutters.when mounted with the index,the machine will be able to perform milling operations in gears,cutter,helix groove,cam and tub wheel.

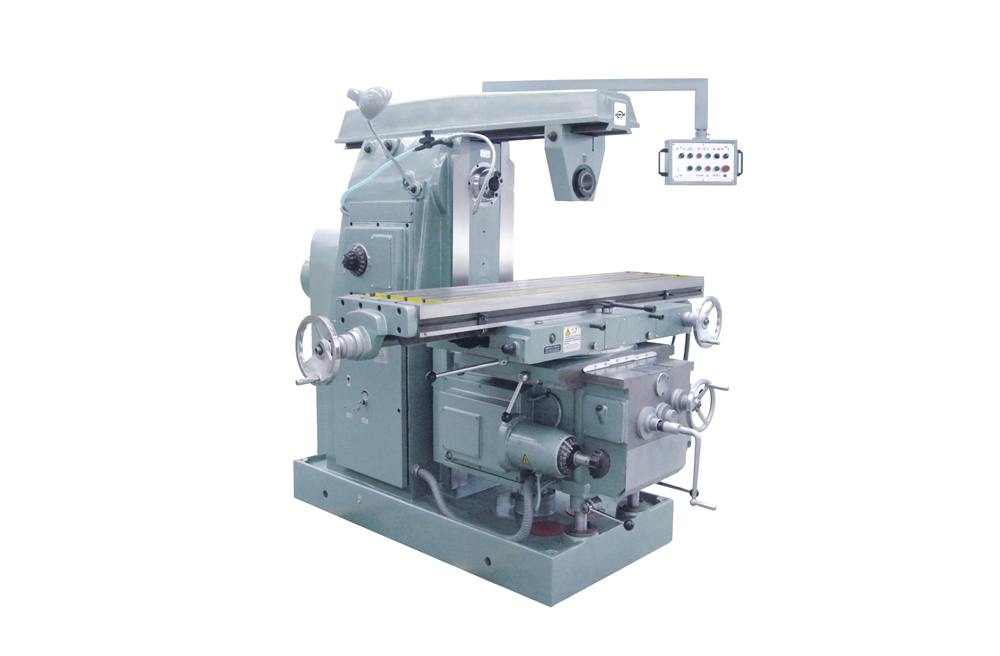

The longitudinal cross and vertical movements of the table can both be operated by hand and power.and it can be rapid moved.It has the large working table,a set of cantilever for electric button and a longitudinal handwheel in front of the table;so the machine can be easy to operate,working table and slide ways adopted quality cast hardened ensure high accuracy.
Model | Unit | X6132A | X6132Ax16 | X6142 | X6142B | |
Table size | mm | 320x1320 | 320x1600 | 420x1800 | 428x2000 | |
T-slot(NxWxD) | mm | 3x18x80 | 3x18x80 | 3x18x90 | 3x18x100 | |
Table load-bearing | kg | 500 | 500 | 800 | 800 | |
Longitudinal travel(manual/power) X | mm | 800/780 | 1020/1000 | 1200/1180 | 1250/1230 | |
Cross travel(manual/power) Y | mm | 300/280 | 300/280 | 360/350 | 420/410 | |
Verticaltravel(manual/power) Z | mm | 410/400 | 410/400 | 470/450 | 480/470 | |
Max rotary angle of table | ±45° | ±45° | ±45° | ±45° | ||
Feed speed steps | 18 steps | 18 steps | 18 steps | 18 steps | ||
Feed speed range | Longitudinal X | mm/min | 15-750 | 15-750 | 22-1100 | 10-1250 |
Cross Y | mm/min | 15-750 | 15-750 | 22-1100 | 10-1250 | |
Vertical Z | mm/min | 5.7-280 | 5.7-280 | 8.3-410 | 2.5-315 | |
Rapid feed range | Longitudinal X | mm/min | 2250 | 2250 | 2400 | 3200 |
Cross Y | mm/min | 2250 | 2250 | 2400 | 3200 | |
Vertical Z | mm/min | 844 | 844 | 900 | 800 | |
Distance from spindle center to arm | mm | 155 | 155 | 200 | 182 | |
Distance between table center to vertical guide way | mm | 235-535 | 235-535 | 280-650 | 385-805 | |
Arobr diameter | mm | φ22,φ27,φ32 | φ22,φ27,φ32 | φ32,φ50 | φ40 | |
Min distance from spindle center to table | mm | 40-440 | 40-440 | 40-500 | 20-500 | |
Spindle hole taper | 7:24 No:50 | 7:24 No:50 | 7:24 No:50 | 7:24 No:50 | ||
Diameter of spindle hole | mm | φ29 | φ29 | φ29 | φ29 | |
Spindle speed steps | 18steps | 18steps | 18steps | 18steps | ||
Spindle speed ranges | r/min | 30-1500 | 30-1500 | 30-1500 | 18-1400 | |
Main motor power | kw | 7.5 | 7.5 | 11 | 11 | |
Feed motor power | kw | 1.5 | 1.5 | 3 | 3 | |
Cooling pump power | kw | 0.12 | 0.12 | |||
Packing size | mm | 2240x1790x1900 | 2220x2180x2040 | 2522x2265x2047 | 2800x2415x2088 | |
Net weight | kg | 2850 | 2850 | 4200 | 5400 | |
