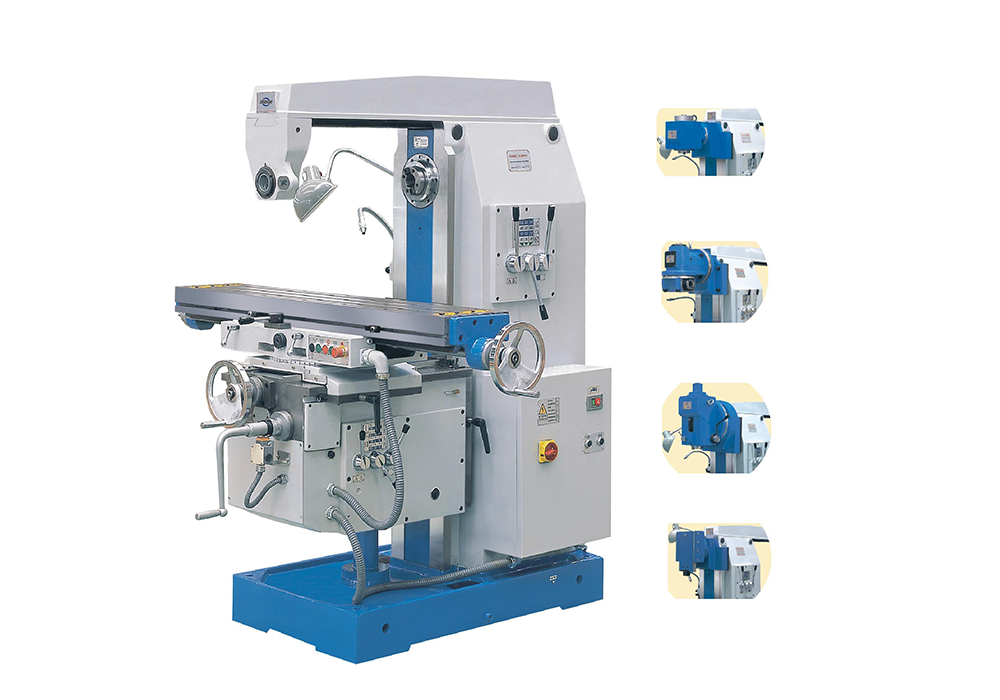

X6125C,X6130C universal knee-type milling machine is a mini type machine,used for milling flat,inclined face,vertical surface and slots by employing dis cutters,angular cutter,formed cutters and face metal milling cutters.when mounted with the vertical milling attachments,the machine will be able to perform milling operations in various dirctions.when mounted with the rotary table,helix groove and ring formed can be milled.with the universal dividing head.The machine will be able to cut gear M=3mm,helical gears bevel gear etc.
Model | Unit | X6125C | X6130C | |
Table size | mm | 250x1250 | 300x1250 | |
T slots(NxWxD) | mm | 3/14/63 | ||
Table load-bearing | kg | 250 | ||
Max rotary angle of table | 45° | |||
Longitudinal travel | mm | 800 | ||
Cross travel | mm | 235 | ||
Vertical travel | mm | 440 | ||
Distance from spindle end to table | mm | 30-470 | ||
Distance from vertical guide to spindle milling head | mm | 290 | ||
Distance between spindle center to arm | mm | 161 | ||
Arbor diameter | mm | φ22,φ27 | ||
Spindle hole taper | 7:24 No.40 | |||
Spindle speed steps | 12 steps | |||
Spindle speed ranges | r/min | 35-1600 | ||
Feed speed steps | 12 steps | |||
Feed speed ranges | longitudinal | mm/min | 15-800 | |
cross | mm/min | 15-800 | ||
vertical | mm/min | 6-270 | ||
Rapid feed ranges | longitudinal | mm/min | 2100 | |
cross | mm/min | 2100 | ||
vertical | mm/min | 880 | ||
Main motor power | kw | 4 | ||
Speed | r/min | 1420 | ||
Feed motor power | kw | 0.75 | ||
Feed motor speed | r/min | 1460 | ||
Cooling pump power | kw | 0.12 | ||
Cooling pump capacity | L/min | 25 | ||
Cooling pump speed | r/min | 2760 | ||
Overall size | mm | 1650x1540x1720 | ||
Packing size | mm | 1540x1650x1960 | ||
Net weight | kg | 1650 | 1700 | |
