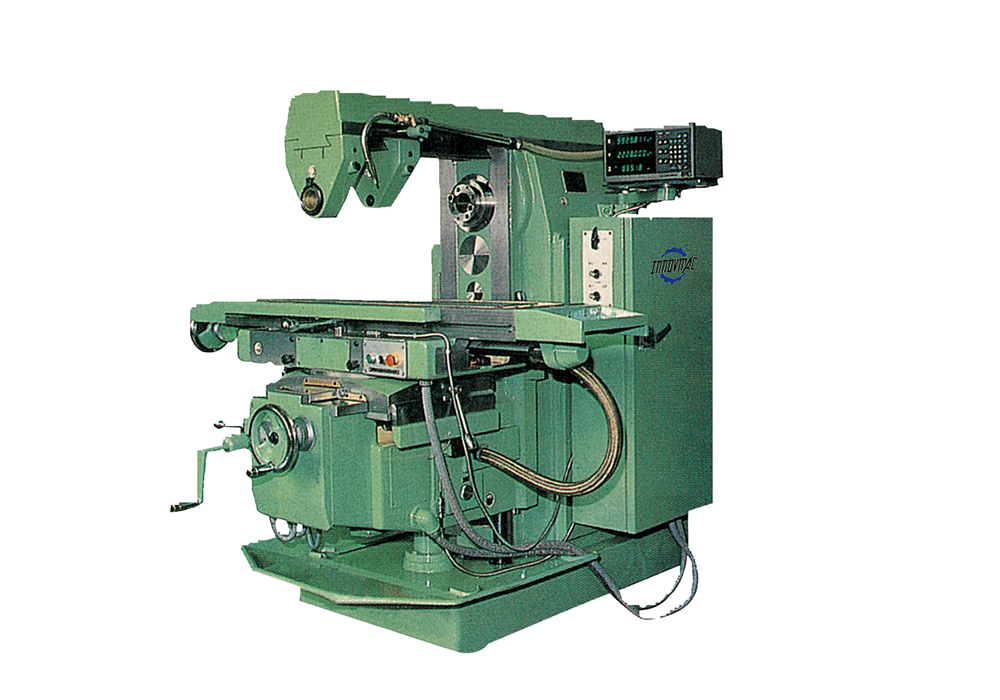

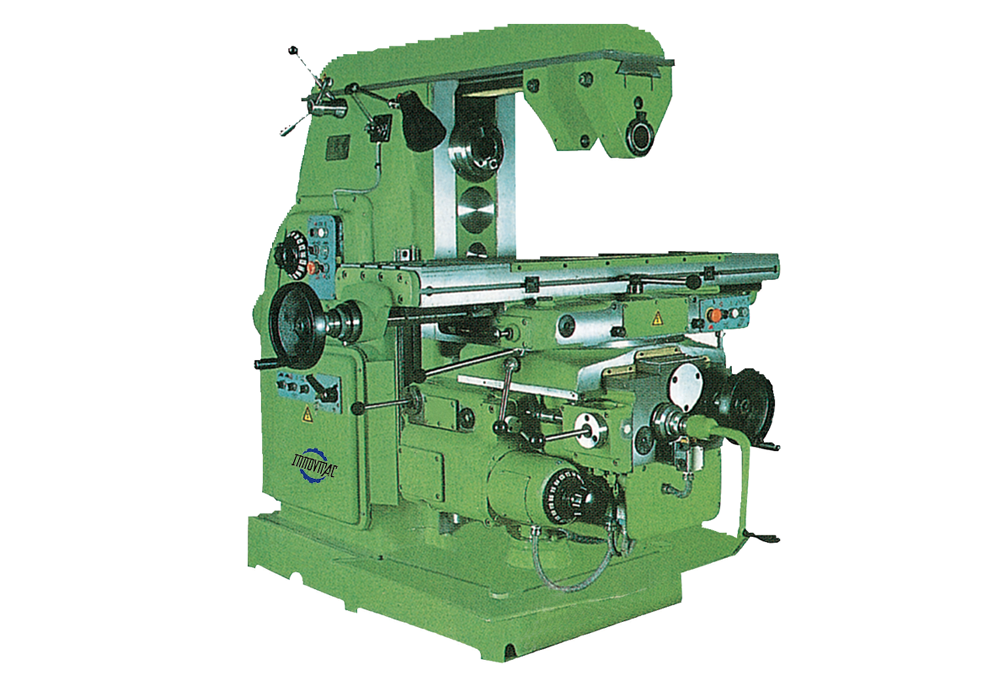

Working table

Working table size

mm

320x1250

400x1600

Bearing

kg

500

800

Max swivel angle

deg

±45

±45

T slot(NxWxD)

3x18x70

3x18x90

Travel

Longitudinal X(manual/power)

mm

700/680

900/880

Cross Y(manual/power)

mm

255/240

315/300

Vertical Z(manual/power)

mm

320/300

380/360

Spindle

speed

r/min

30-1500

30-1500

No of spindle speed

step

18

18

Taper

ISO 7:24 No50

ISO 7:24 No50

Distance from spindle axis
to table surface min/max

mm

30/350

30/410

Feed

Feed rate

mm/min

X.Y:23.5-1180 Z:8-394

X.Y:19-950 Z:6.3-317

Rapid traverse

mm/min

X.Y:2300 Z:770

X.Y:2300 Z:770

No of working feed

step

18

18

Other

Main motor power

kw

7.5

11

Feed motor power

kw

1.5

3

Machine dimension

mm

2294x1770x1665

2556x2159x1830

Net weight

kg

2850

3850
