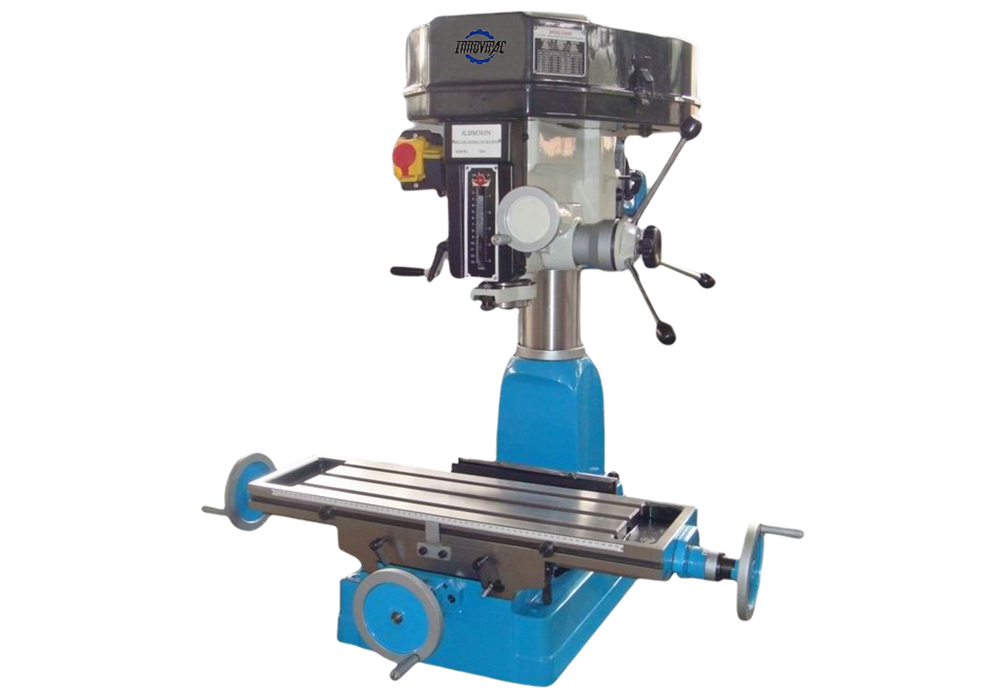

Milling drilling, tapping, boring, reaming ；
Head swivels 360,Micro feed precision ；
super high column,Wide and big table,Gear drive, lower noise。 ；
heavy-duty tapered roller bearing spindle,Positive spindle lock,Adjustable gibs on table;
Standard accessories:
Draw bar
Adapter
Taper shank for drilling chuck
Drilling chuck
Arbor
T slot bolt
Washer
Nut
Tilted wedge
Spanner
Oil gun
Optional accessories:
Foot stand+oil pan
Cooling system
Working light
Worktable power feed system
spring collet
vices
milling collet
milling clamp
Model | ZX30 |
Max.drilling capacity(iron/steel) | 31.5/25mm(MT4) |
Max.mill capacity(face/end) | 76/20mm |
Spindle taper | MT3/R8 |
Worktable size | 730×210mm |
Worktable travelX/Y | 500/230mm |
Spindle box swivel degree | 360° |
Spindle travel | 130mm |
Spindle nose to worktable | 440mm |
Spindle speeds | 50HZ:100-2080/60HZ:140-2436rpm |
Motor | 1.5kw 1450rpm |
N.W/G.W | 300/350KG |
Packing size(L×W×H,enclude foot) | 950×760×1150mm |
20’Container | 28 sets |
